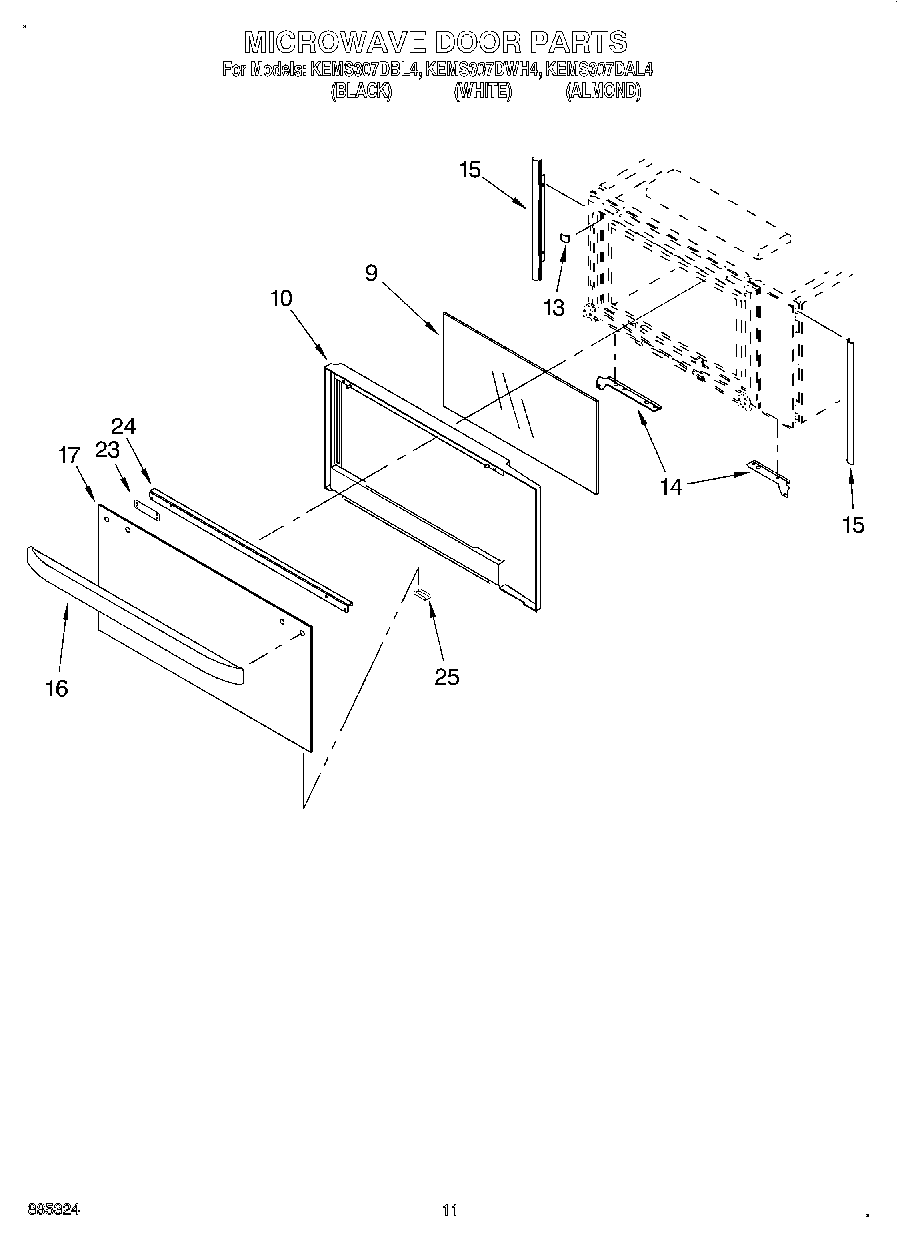

KEMS307DBL4 09 – MICROWAVE DOOR, OPTIONAL

Products

Position	Product
9	Glass, Middle
10	WP8303556 Whirlpool Microwave Door Frame
10	WP4450038 Whirlpool Screw
13	Tape, Foam
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	Filler, Side (Left Side)
15	Filler, Side
16	Handle, Door (Almond Model)
16	Door Handle (Black Model)
16	Handle, Door (White Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (White Model)
17	Glass, Outer (Almond Model)
23	Spacer (Stainless)
24	Screw
24	Bracket, Handle
25	Harness, Wire (Door Switch) (Also, order Main Harness)
25	4450950 Whirlpool Oven Conduit
25	Harness, Wire (Latch)
25	WPL 591014
25	1
25	WPL 4454859
25	Clip, Retainer (Black Model)
25	Clip, Retainer (White Model)
25	261900 Whirlpool Microwave Spray
25	Retainer, Clip (Almond Model)
25	Filler Kit (Bl)
25	Filler Kit (Wh)
25	Filler Kit (Al)
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	WP482338 Whirlpool Refrigerator Adhesive
25	72032 Whirlpool Touch Up Paint Black
25	285006 Whirlpool Spray
25	4450800 Whirlpool Oven Screw
25	Wire, 25“ Roll (White 14 GA.)
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	WP488366 Whirlpool Refrigerator Clamp
25	WP4449809 Whirlpool Screw
25	72017 Whirlpool Appliance Touch-Up Paint White
25	814381 Whirlpool Pin
25	WP4448950 Whirlpool Screw
25	Wire (12 Ga. 150 c Black)
25	Wire (14 Ga. 150 c Yellow)
25	Wire (14 Ga. 150 c Orange)
25	Wire (14 Ga. 150 c Green)
25	Wire (14 Ga. 150 c Brown)
25	Wire (14 Ga. 150 c Blue)
25	WP261869 Whirlpool Microwave Paint
25	242831 Whirlpool Oven Wire
25	Transformer
25	Ground (M/W)
25	350930 Whirlpool White Spray Paint
