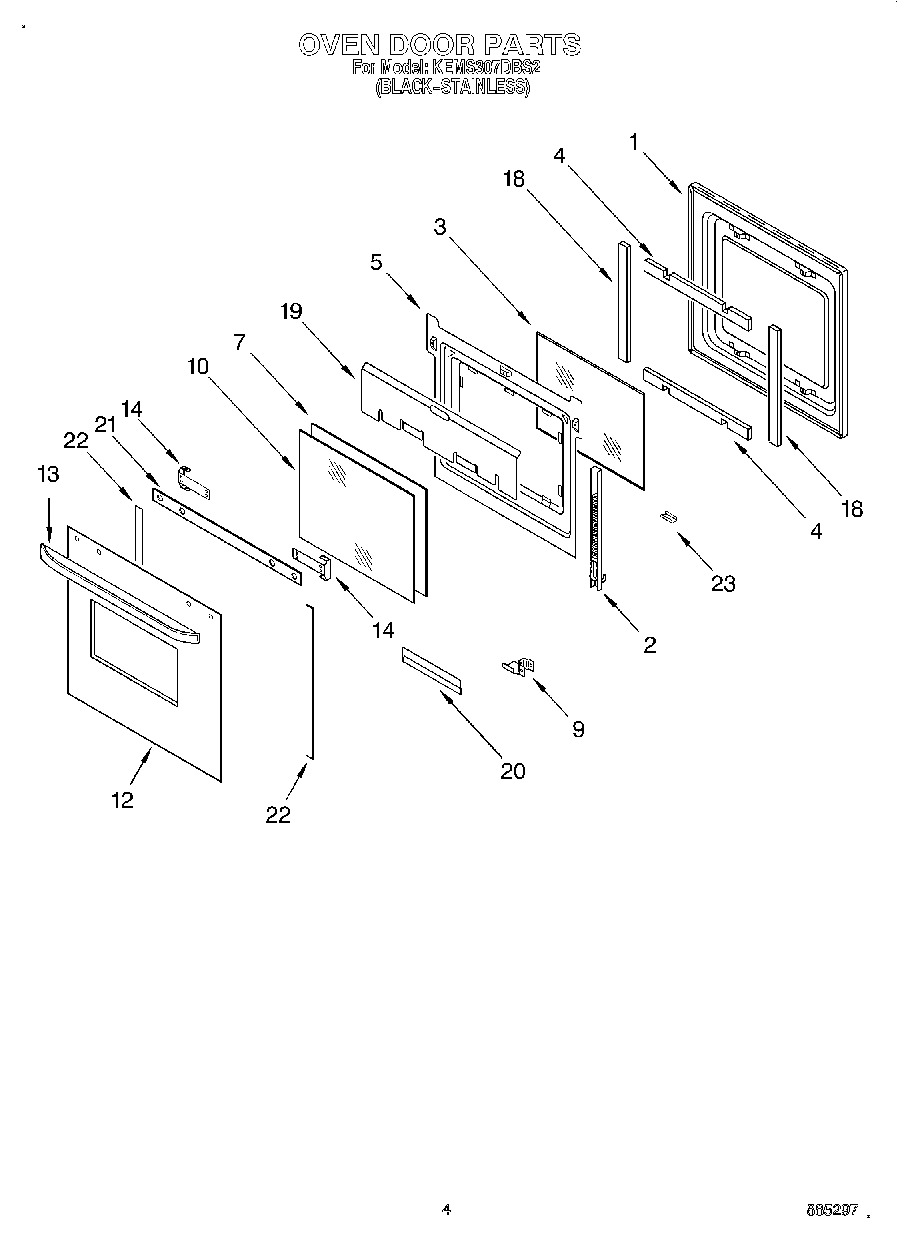

KEMS307DBS2 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455525 Whirlpool Oven Door Hinge
3	WP4449259 Whirlpool Glass Window
4	Insulation, Top and Bottom Door
5	Retainer, Glass
9	Retainer, Glass
10	WP4449263 Whirlpool Inner Door Glass
12	Door Glass & Panel Assy.
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
