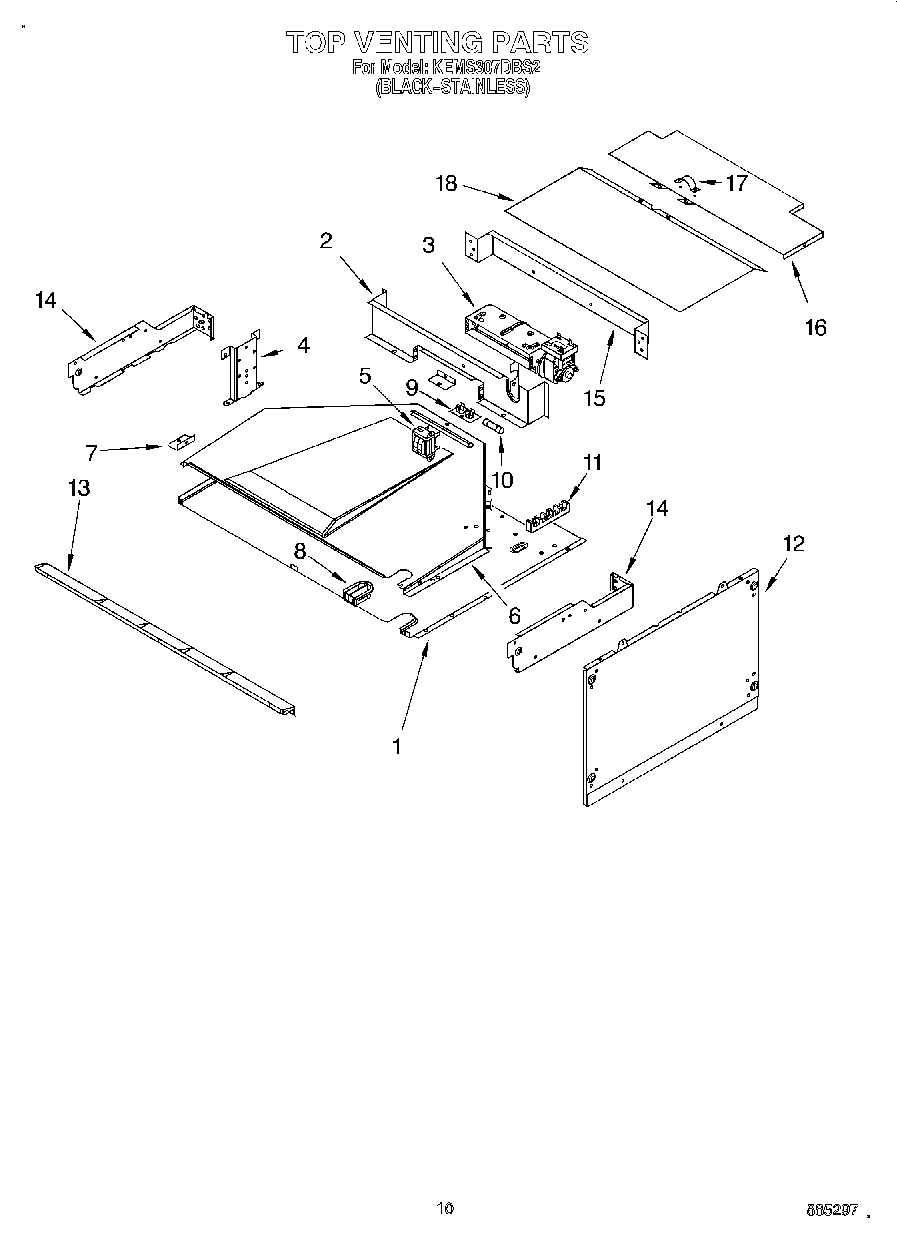

KEMS307DBS2 08 – TOP VENTING

KEMS307DBS2 08 – TOP VENTING

Written by

in

KEMS307DBS2 08 – TOP VENTING

Products

PositionProduct
1WP4450118 Whirlpool Nut
1Cover, Top
2Baffle, Blower
3Blower
4Bracket, Transformer
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Bracket, Duct
8Grommet
8WP112432 Whirlpool Nut Assembly
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
12Side, Combo
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
18WP4449809 Whirlpool Screw
