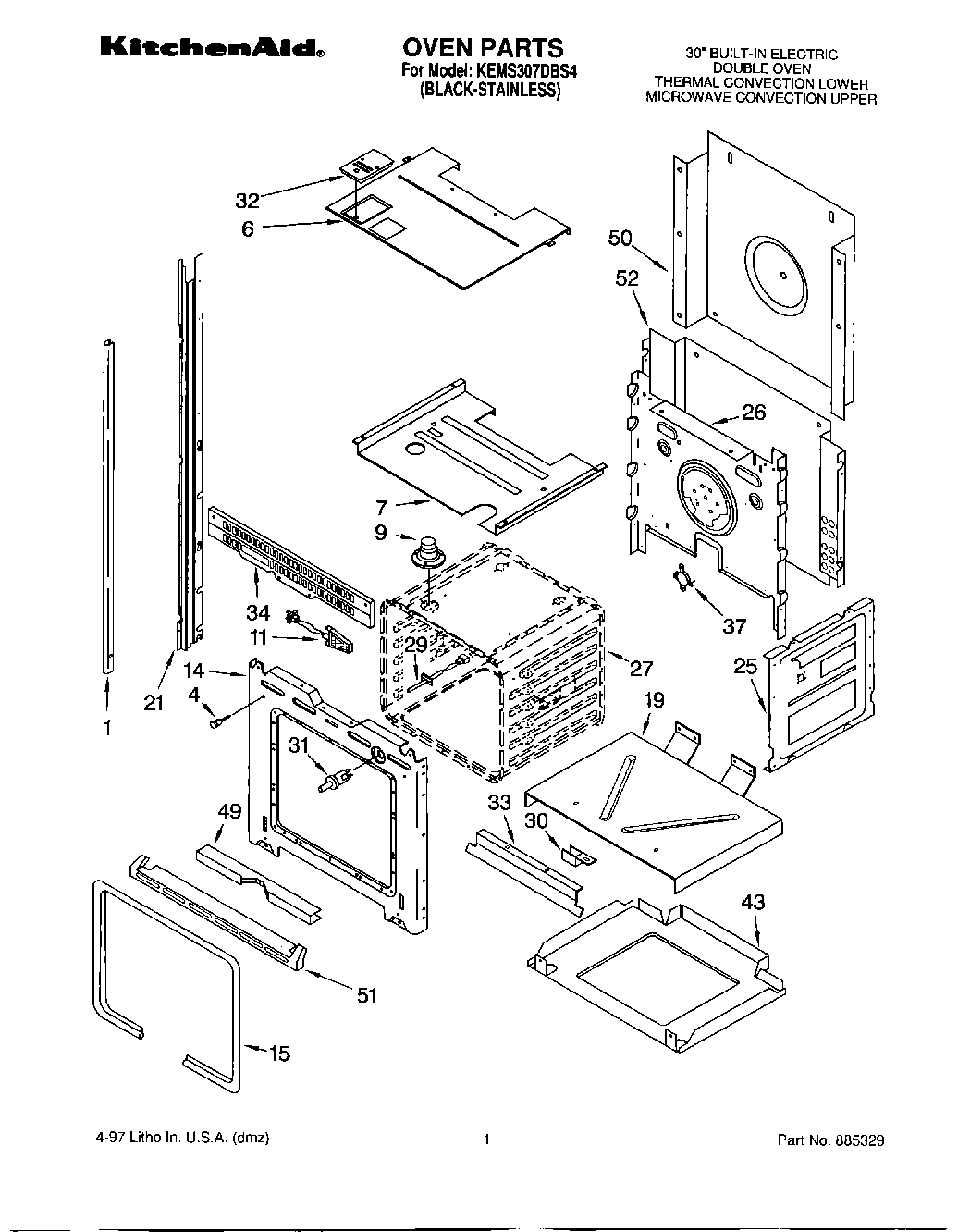

KEMS307DBS4 01 – OVEN

Products

Position	Product
1	Trim, Side (RH Black)
1	WP8281236 Whirlpool Screw
1	Trim, Side (LH Black)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
21	WP4448444 Whirlpool Grommet
21	814376 Whirlpool Oven Rail Mount
21	814375 Whirlpool Oven Rail Mount
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
31	Switch, Door
32	Vent Box Assy
33	Deflector, Vent
34	Vent, Center
34	WP4450038 Whirlpool Screw
37	Thermostat (TOD) (Temp.) SPST
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
50	WP4449809 Whirlpool Screw
51	Trim, Bottom (Black Model)
51	Screw, (2)
52	W11684730 Whirlpool Insulation
52	Insulation, Bottom
52	Chassis, Back
52	WPL 4450365
