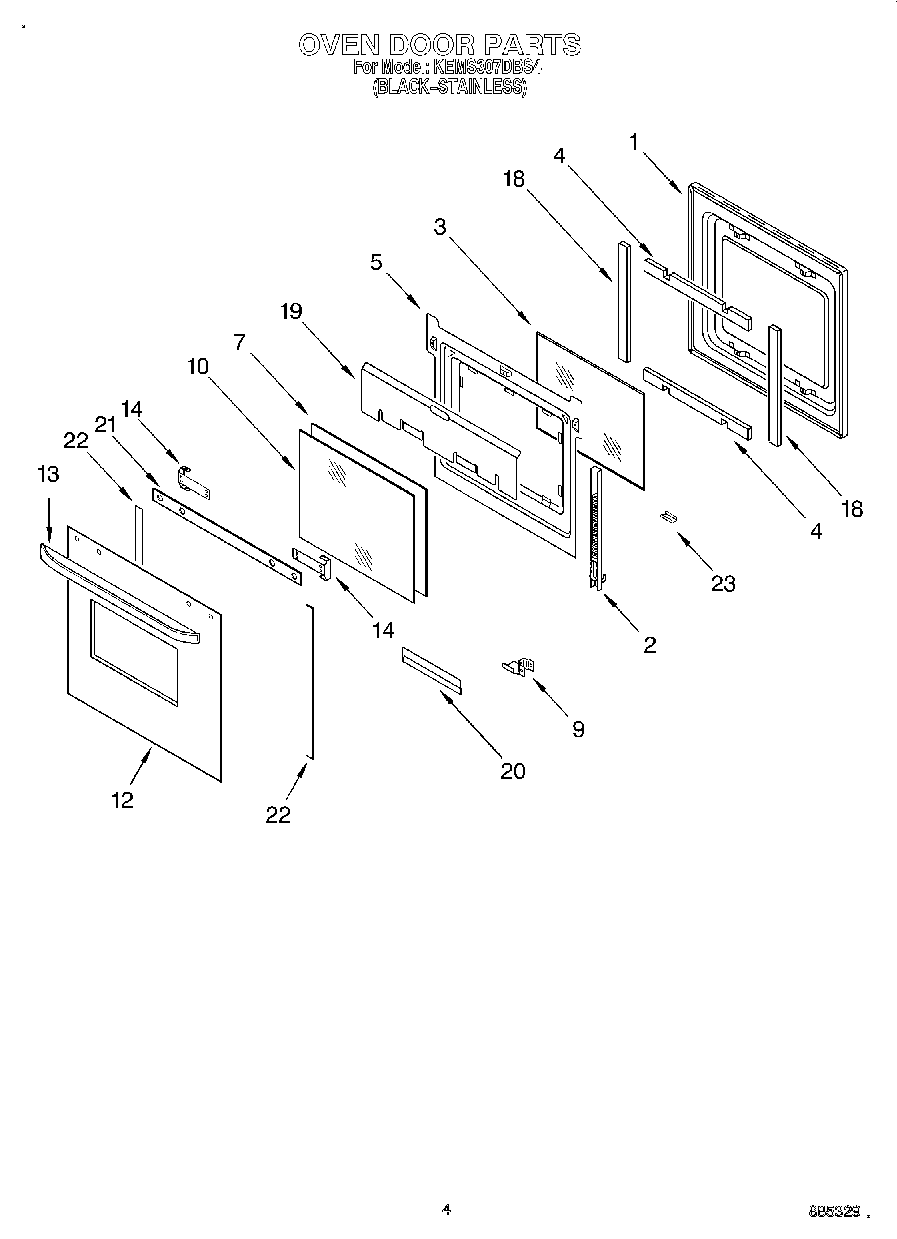

KEMS307DBS4 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4449743 Whirlpool Screw
2WP4455525 Whirlpool Oven Door Hinge
3WP4449259 Whirlpool Glass Window
4Insulation, Top and Bottom Door
5Retainer, Glass
9Retainer, Glass
10WP4449263 Whirlpool Inner Door Glass
12Door Glass & Panel Assy.
13Door Handle (Black Model)
14Bracket, Handle
14Screw
18W11688413 Whirlpool Insulation
19Shield, Heat
20Retainer, Glass
20WP4449809 Whirlpool Screw
21Seal, Door Top
22Seal, Sides
23Clip, Retainer (Black Model)
