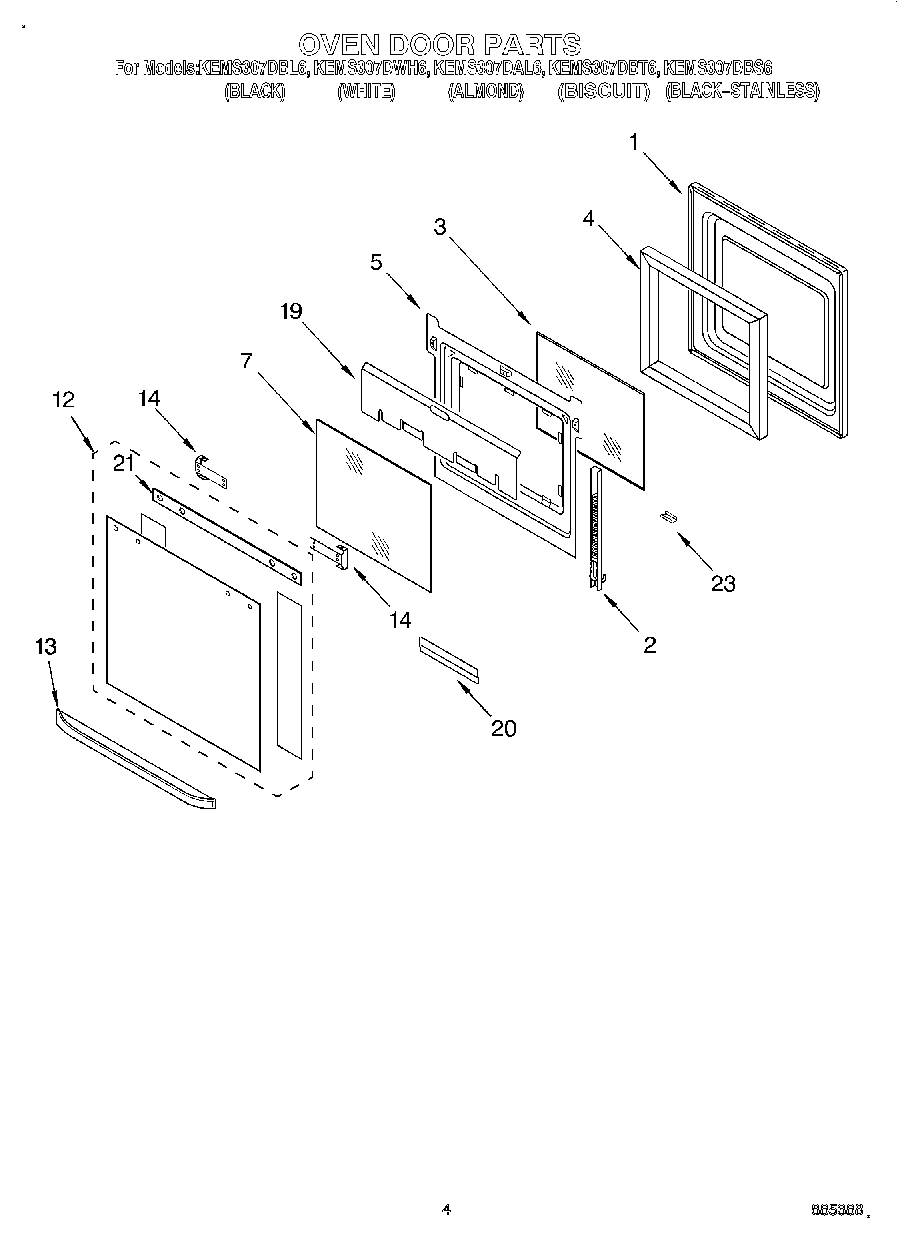

KEMS307DBT6 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455524 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Assy (Biscuit Model)
12	Door Glass, Assy (Black-Stainless)
12	Door Glass, Assy (Almond Model)
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass, Assy (White Model)
13	Handle, Door (Almond Model)
13	Handle, Door (White Model)
13	Door Handle (Black Model)
13	Handle, Door (Biscuit)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
