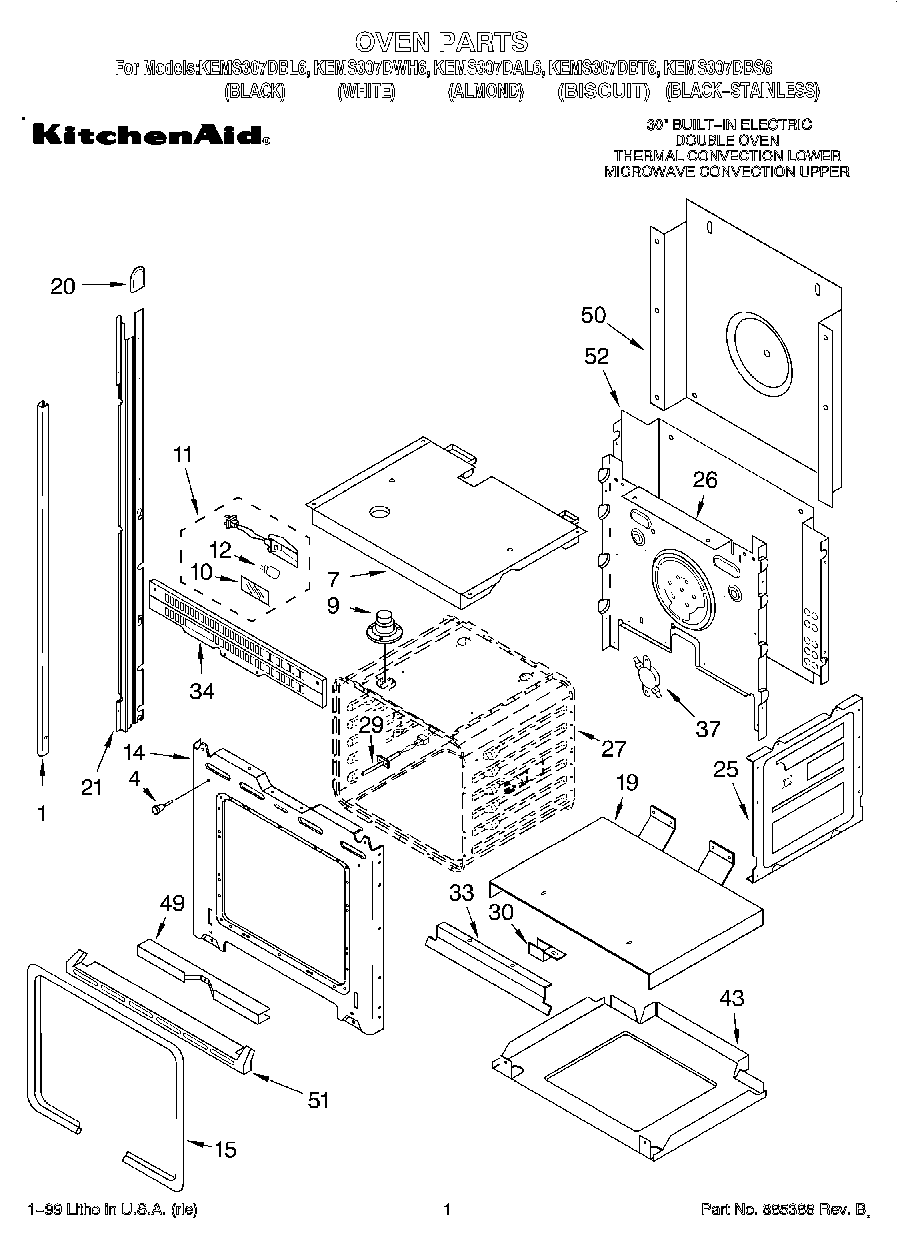

| 1 | Trim, Side (LH Almond) |
| 1 | Trim, Side (RH Black) |
| 1 | Trim, Side (RH White) |
| 1 | Trim, Side (LH Black) |
| 1 | Trim, Side (LH White) |
| 1 | Trim, Side (RH Biscuit) |
| 1 | Trim, Side (White) |
| 1 | WP8281236 Whirlpool Screw |
| 1 | Trim, Side (RH Almond) |
| 1 | Trim, Side (LH Biscuit) |
| 4 | 4448520 Whirlpool Oven Bumper |
| 7 | Top, Chassis |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light |
| 11 | WP4448972 Whirlpool Oven Light |
| 11 | 4449748 Whirlpool Oven Screw |
| 12 | WP4452164 Whirlpool 12V 5W Halogen Light Bulb |
| 14 | Frame, Front |
| 14 | Screw |
| 14 | WP4450118 Whirlpool Nut |
| 15 | W11675844 Whirlpool Oven Gasket |
| 19 | Support, Insulation |
| 20 | Cap, Spacer |
| 21 | 814375 Whirlpool Oven Rail Mount |
| 21 | WP4448444 Whirlpool Grommet |
| 21 | 814376 Whirlpool Oven Rail Mount |
| 25 | Side, Chassis (R.H. & L.H.) |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not a Serviceable Part) |
| 29 | Sensor |
| 30 | WPL 4449845 |
| 33 | WPL 4451619 |
| 34 | WP4450038 Whirlpool Screw |
| 34 | WPL 4451667 |
| 37 | WP9759243 Whirlpool Thermostat |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 49 | WP4449154 Whirlpool Screw |
| 50 | WP4451747 Whirlpool Rear Cover |
| 50 | WP4449809 Whirlpool Screw |
| 51 | Screw, (2) |
| 51 | WPL 4452415 |
| 51 | WPL 4448862 |
| 51 | WPL 4448478 |
| 51 | WPL 4448477 |
| 52 | WPL 4451756 |
| 52 | WPL 4450365 |
| 52 | W11684730 Whirlpool Insulation |
