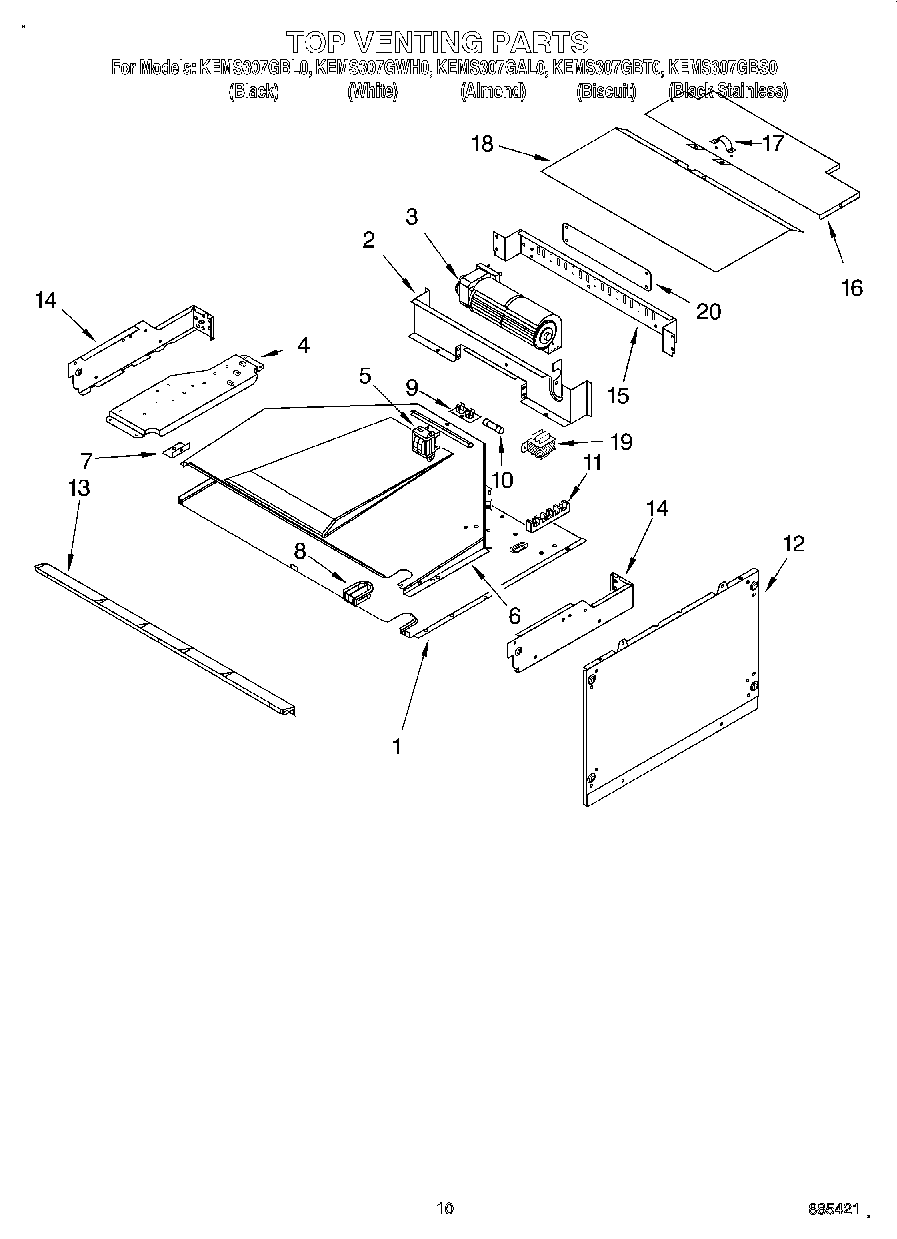

KEMS307GAL0 08 – TOP VENTING

Products

Position	Product
1	Cover, Top
2	489392 Whirlpool Refrigerator Screw
2	Baffle, Blower
3	Blower
4	Plate, Mounting
5	WP9760588 Whirlpool Transformer
6	Exhaust Duct
7	Bracket, Duct
8	Grommet
8	WP112432 Whirlpool Nut Assembly
9	4454949 Whirlpool Oven Fuse Block
9	WP4449154 Whirlpool Screw
10	WPW10017410 Whirlpool Fuse
11	WP8203546 Whirlpool Terminal Block
11	WP3387230 Whirlpool Screw
12	Side, Combo
13	WP4450038 Whirlpool Screw
13	Vent, (Control Panel)
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	4448664 Whirlpool Oven Mounting Bracket
18	WP4452367 Whirlpool Top Cover
19	Transformer, Control Panel
20	Plate, Cover
20	WP4449809 Whirlpool Screw
