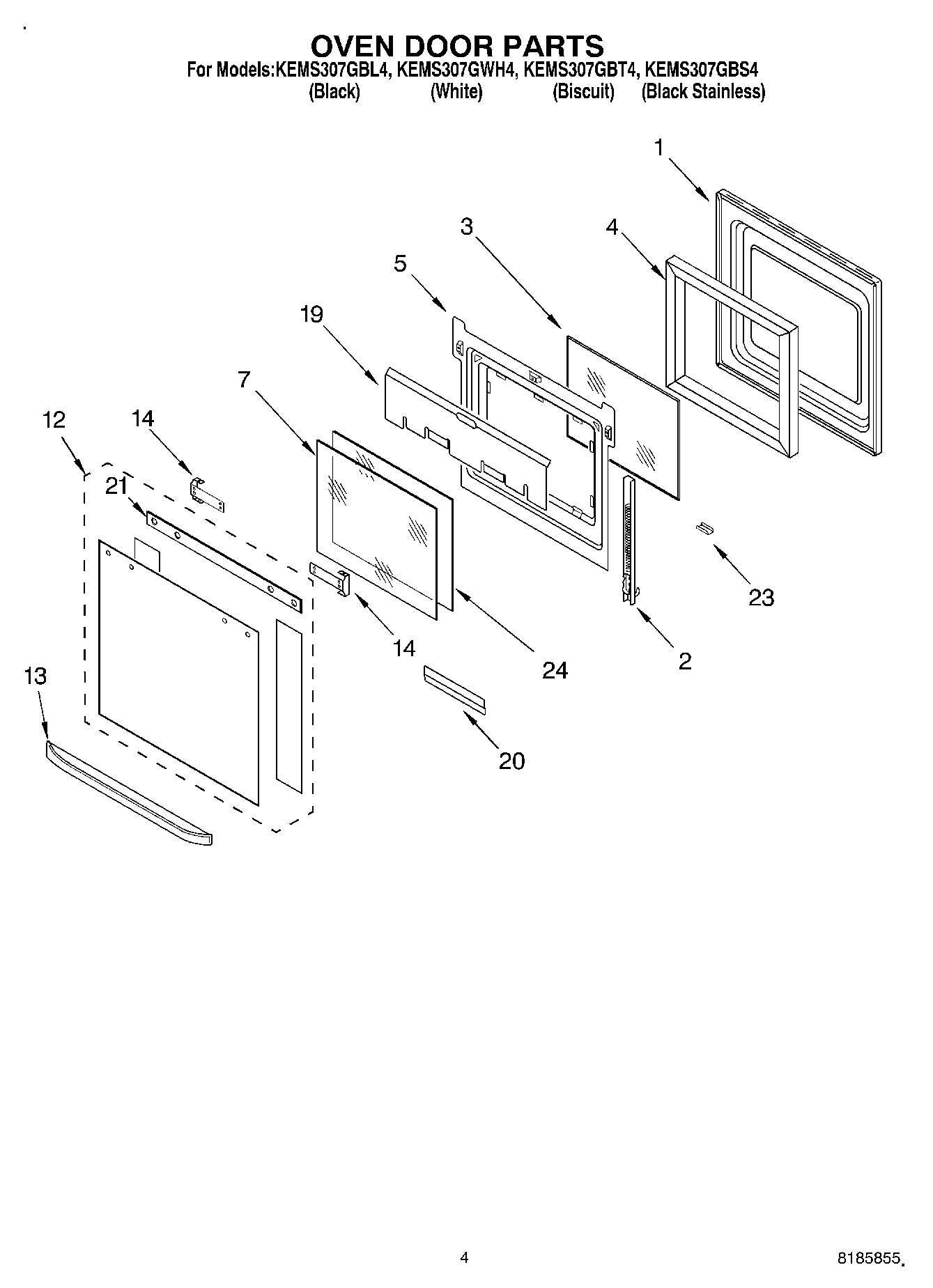

KEMS307GBS4 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	Hinge, Door (R.Side)
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Assy (Biscuit Model)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black-Stainless)
12	WP9759641 Whirlpool Outer Door Glass
13	Handle, Door (Biscuit)
13	Door Handle (Black Model)
13	Handle, Door (White Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
