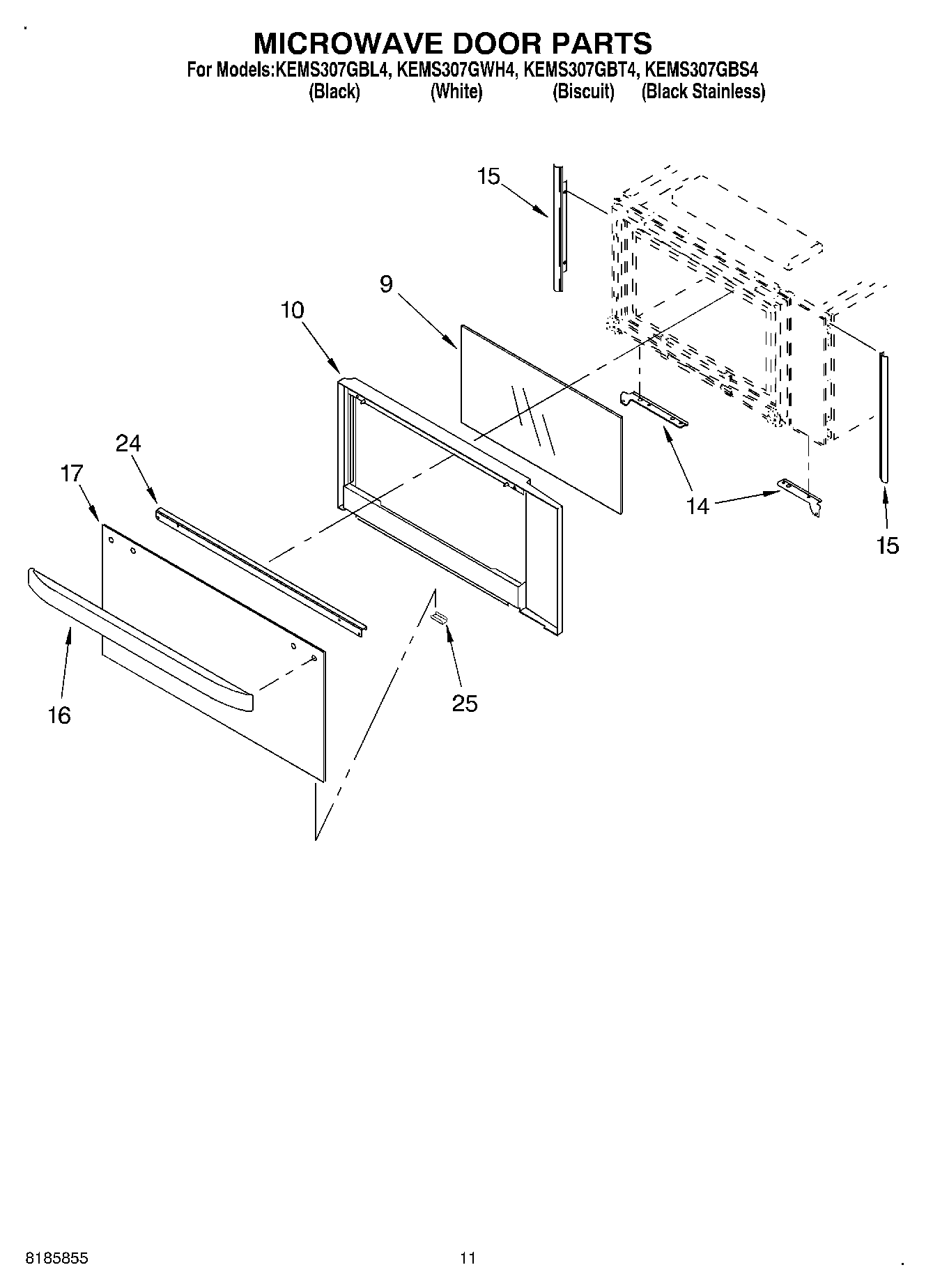

KEMS307GBT4 09 – MICROWAVE DOOR, OPTIONAL

KEMS307GBT4 09 – MICROWAVE DOOR, OPTIONAL

Written by

in

KEMS307GBT4 09 – MICROWAVE DOOR, OPTIONAL

Products

PositionProduct
9Glass, Middle
10WP4450038 Whirlpool Screw
10WP8303556 Whirlpool Microwave Door Frame
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15Filler, Side (Left Side)
15Filler, Side
16Handle, Door (White Model)
16Door Handle (Black Model)
16Handle, Door (Biscuit)
17Glass, Outer (Black-Stainless)
17Glass, Outer (White)
17Glass, Outer (Biscuit)
17Glass, Outer (Black Model)
24Screw
24Bracket, Handle
25Wire (14 Ga. 200 c Brown)
25Wire (14 Ga. 150 c Yellow)
25Wire (12 Ga. 150 c Black)
251
2518 Ga. 80~c Rating (Red)
25WPL 591014
25Filler Kit (Al)
25Filler Kit (Wh)
25Filler Kit (Bl)
25RETAINER,GLASS CLIP (BISCUIT)
25261900 Whirlpool Microwave Spray
25Clip, Retainer (White Model)
25Clip, Retainer (Black Model)
254450950 Whirlpool Oven Conduit
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Brown)
25285006 Whirlpool Spray
25WPW10339879 Whirlpool Wire Tie
254450800 Whirlpool Oven Screw
25Wire, 25“ Roll (White 14 GA.)
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
254392901 Whirlpool Biscuit Spray Paint
254392899 Whirlpool Biscuit Touch-Up Paint
25WP4449809 Whirlpool Screw
2572017 Whirlpool Appliance Touch-Up Paint White
2572032 Whirlpool Touch Up Paint Black
25WP482338 Whirlpool Refrigerator Adhesive
258528351 Whirlpool Clip
25Wire (14 Ga. 150 c Blue)
25WP261869 Whirlpool Microwave Paint
25242831 Whirlpool Oven Wire
25Spacer, Harness
2516515 Whirlpool Clip
25WPL 4455732
25WPL 4452239
25Ground (M/W)
25WP4448950 Whirlpool Screw
25814381 Whirlpool Pin
25350930 Whirlpool White Spray Paint
