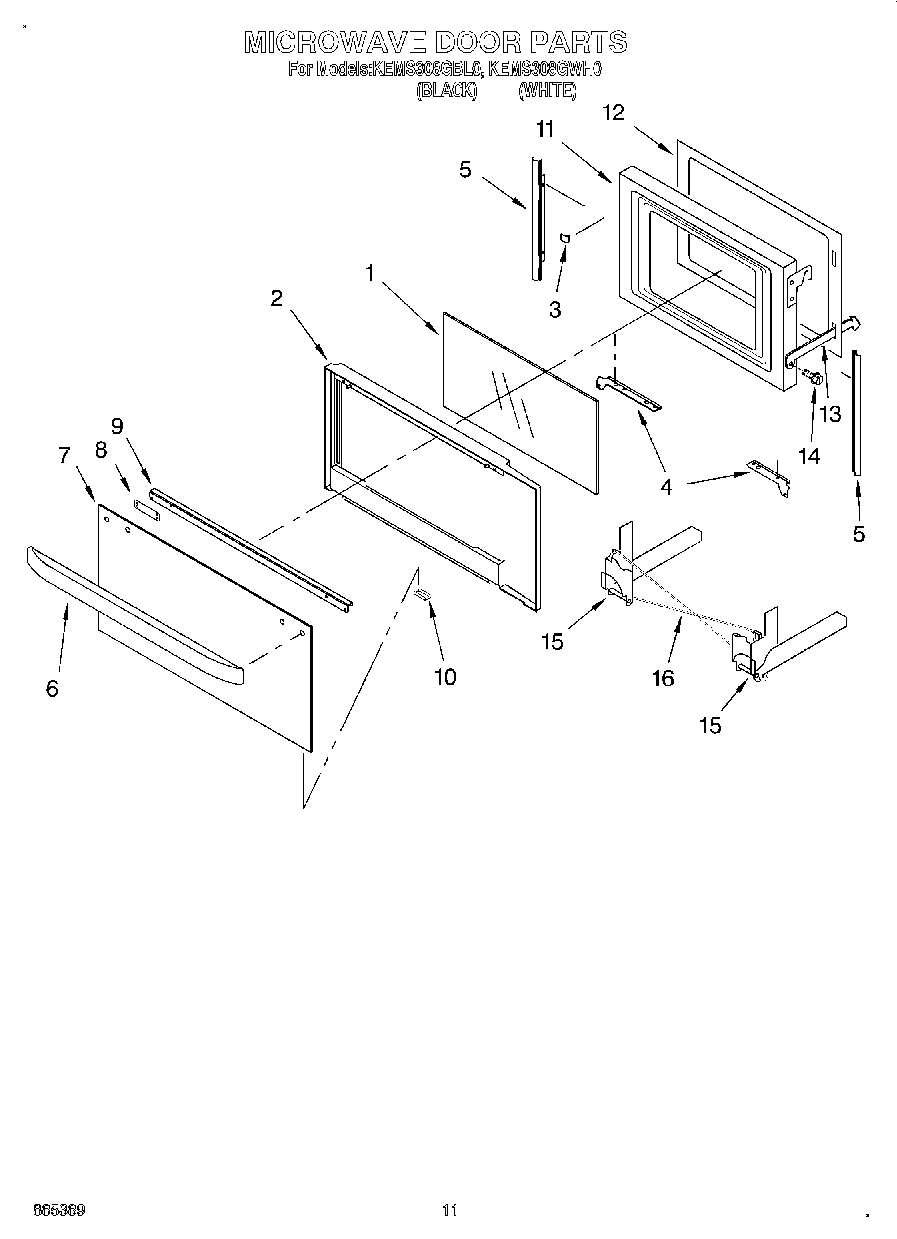

KEMS308GBL0 09 – MICROWAVE DOOR, OPTIONAL

KEMS308GBL0 09 – MICROWAVE DOOR, OPTIONAL

Written by

in

KEMS308GBL0 09 – MICROWAVE DOOR, OPTIONAL

Products

Position	Product
1	Glass, Middle
2	WP8303556 Whirlpool Microwave Door Frame
2	WP4450038 Whirlpool Screw
3	Tape, Foam
4	Bracket, Mounting (Right Side)
4	Bracket, Mounting (Left Side)
5	Filler, Side
5	Filler, Side (Left Side)
6	Handle, Door (White Model)
6	Door Handle (Black Model)
7	Glass, Outer (White Model)
7	Glass, Outer (Black Model)
8	Spacer (Stainless)
9	Bracket, Handle
9	Screw
10	Clip, Retainer (White Model)
10	Clip, Retainer (Black Model)
11	Plate, Door
12	Frame, Inner
13	Strap, Door
14	Screw
15	WP4375323 Whirlpool Microwave Door Hinge
15	WP4375324 Whirlpool Microwave Door Hinge
16	WPL 591014
16	1
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	WP4452396 Whirlpool Microwave Spring
16	4450950 Whirlpool Oven Conduit
16	WPL 4454929
16	Filler Kit (Al)
16	Filler Kit (Wh)
16	261900 Whirlpool Microwave Spray
16	Filler Kit (Bl)
16	WPW10339879 Whirlpool Wire Tie
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	814381 Whirlpool Pin
16	WP482338 Whirlpool Refrigerator Adhesive
16	72032 Whirlpool Touch Up Paint Black
16	285006 Whirlpool Spray
16	4450800 Whirlpool Oven Screw
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	WP4449809 Whirlpool Screw
16	WP4448950 Whirlpool Screw
16	350930 Whirlpool White Spray Paint
16	Ground (M/W)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	WP261869 Whirlpool Microwave Paint
16	242831 Whirlpool Oven Wire
16	Spacer, Harness
16	16515 Whirlpool Clip
16	Transformer
16	WPL 4452239
16	72017 Whirlpool Appliance Touch-Up Paint White
