KEMS308GSS0 01 – OVEN, LITERATURE

KEMS308GSS0 01 – OVEN, LITERATURE

Written by

in

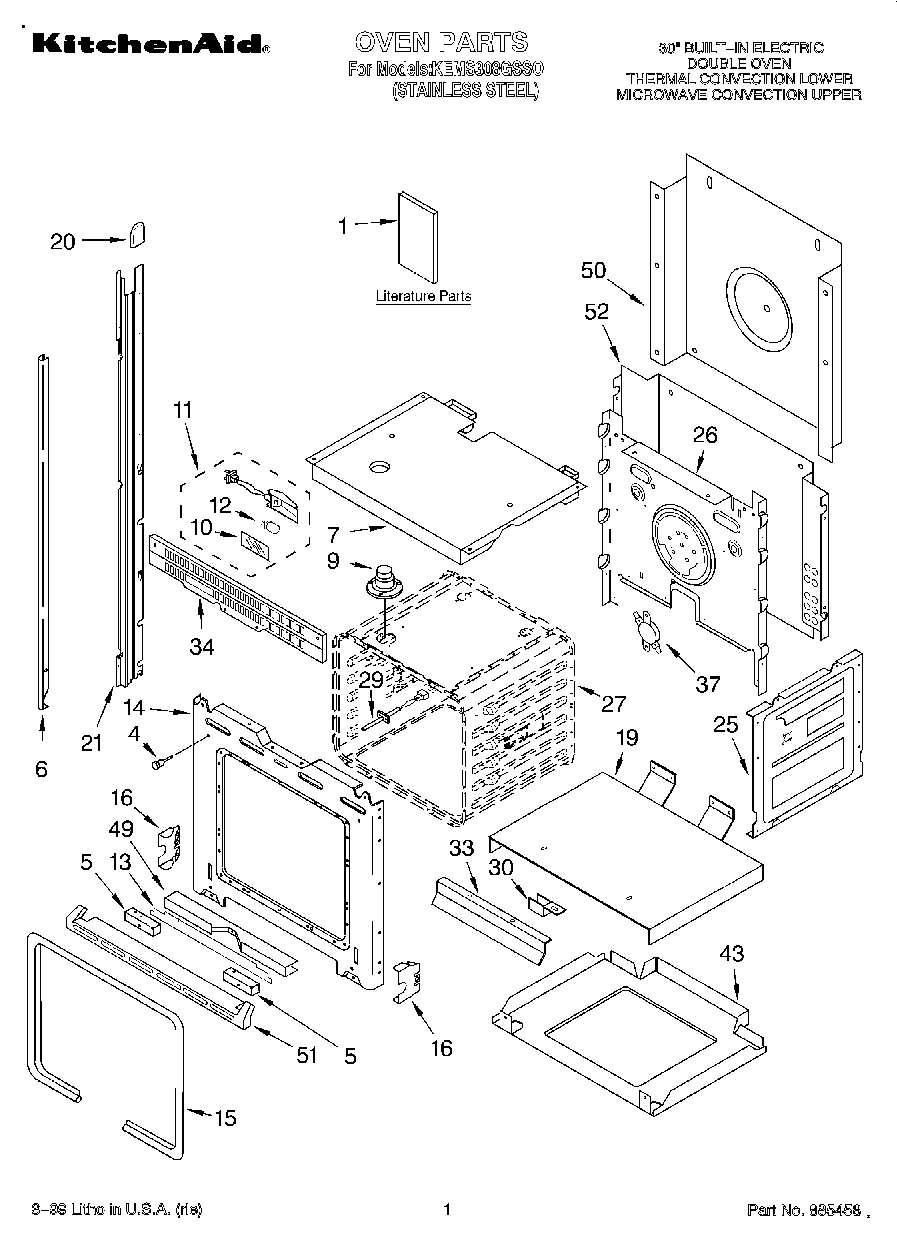

KEMS308GSS0 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Use & Care Guide (Microwave))
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6WP694091 Whirlpool Screw
6Trim, Side (RH Stainless Steel)
6Trim, Side (LH Stainless Steel)
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
30WPL 4449845
33WPL 4451619
34WPL 4451667
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Screw)
51Tri
52WPL 4450365
52W11684730 Whirlpool Insulation
52WPL 4451756
