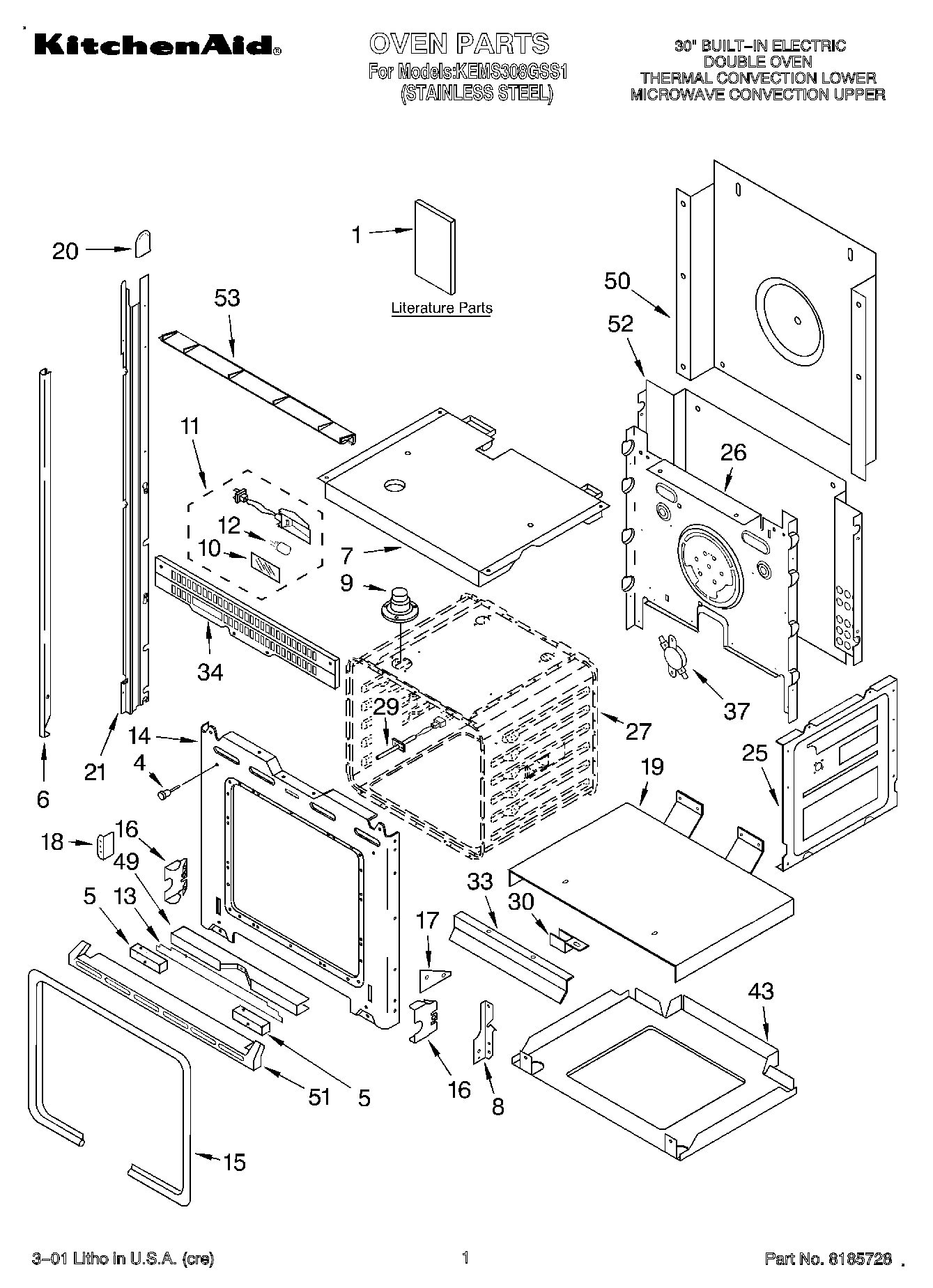

KEMS308GSS1 01 – OVEN, LITERATURE

KEMS308GSS1 01 – OVEN, LITERATURE

Written by

in

KEMS308GSS1 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Guide, Easy Use (Microwave))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide)
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Trim, Side (LH Stainless Steel)
6WP694091 Whirlpool Screw
6Trim, Side (RH Stainless Steel)
7Top, Chassis
8Reciever, Hinge (Right Hand)
8Reciever, Hinge (Left Hand)
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
17WP4455509 Whirlpool Support Bracket
18Bracket, Support
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WPL 4451667
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51Trim, Bottom (Screw)
51Tri
52WPL 4451756
53Vent-Cntrl Panel
53WPL 4450365
53W11684730 Whirlpool Insulation
