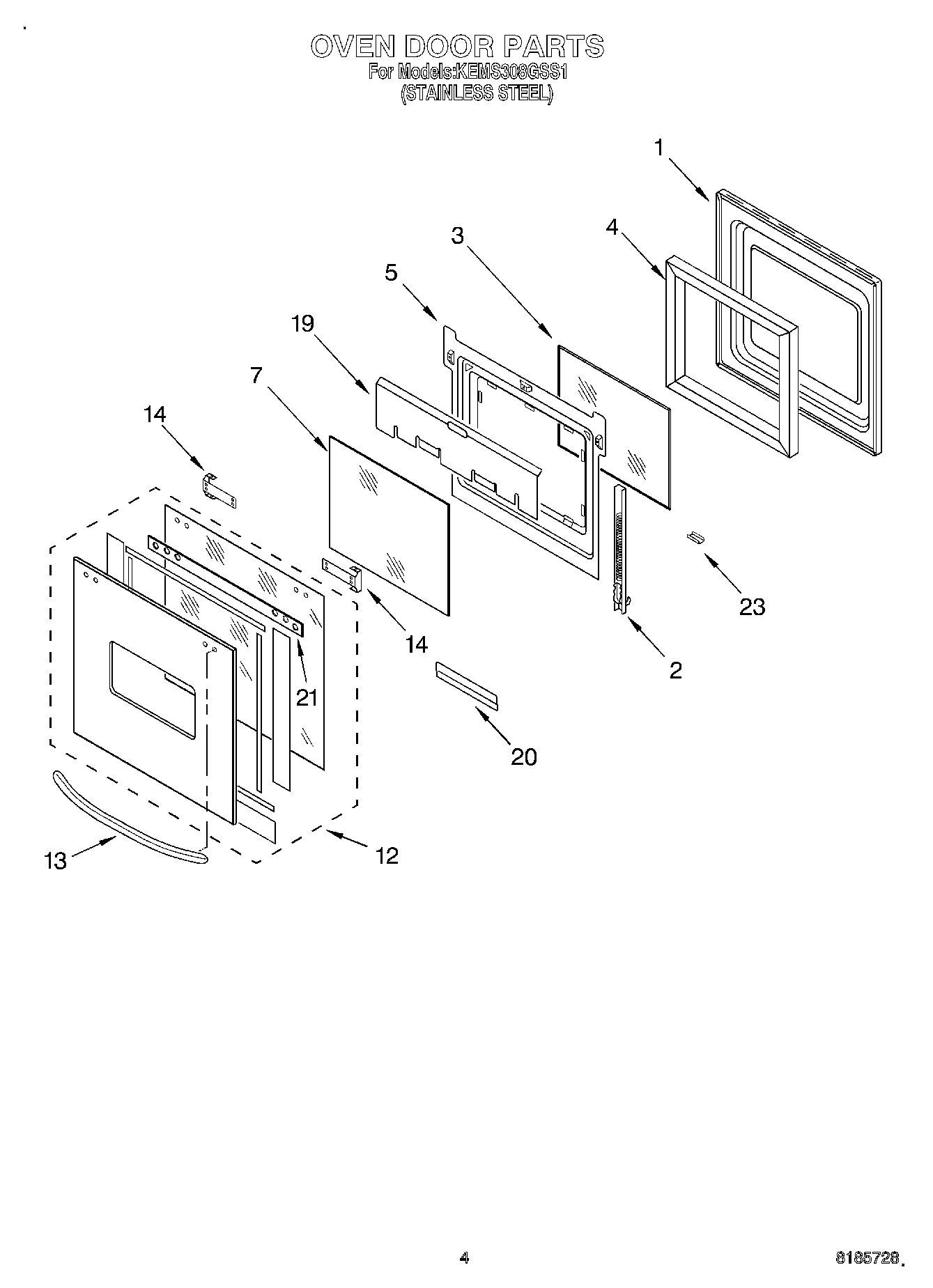

KEMS308GSS1 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4455526 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
12	W10401225 Whirlpool Oven Outer Door Glass
13	Door Handle (Stainless Steel)
14	Bracket, Handle Stainless Steel Model (Left Hand)
14	4455803 Whirlpool Oven Bracket
14	WPW10132940 Whirlpool Dishwasher Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	WP3400832 Whirlpool Screw
23	Retainer, Glass-Clip (Stainless Steel)
