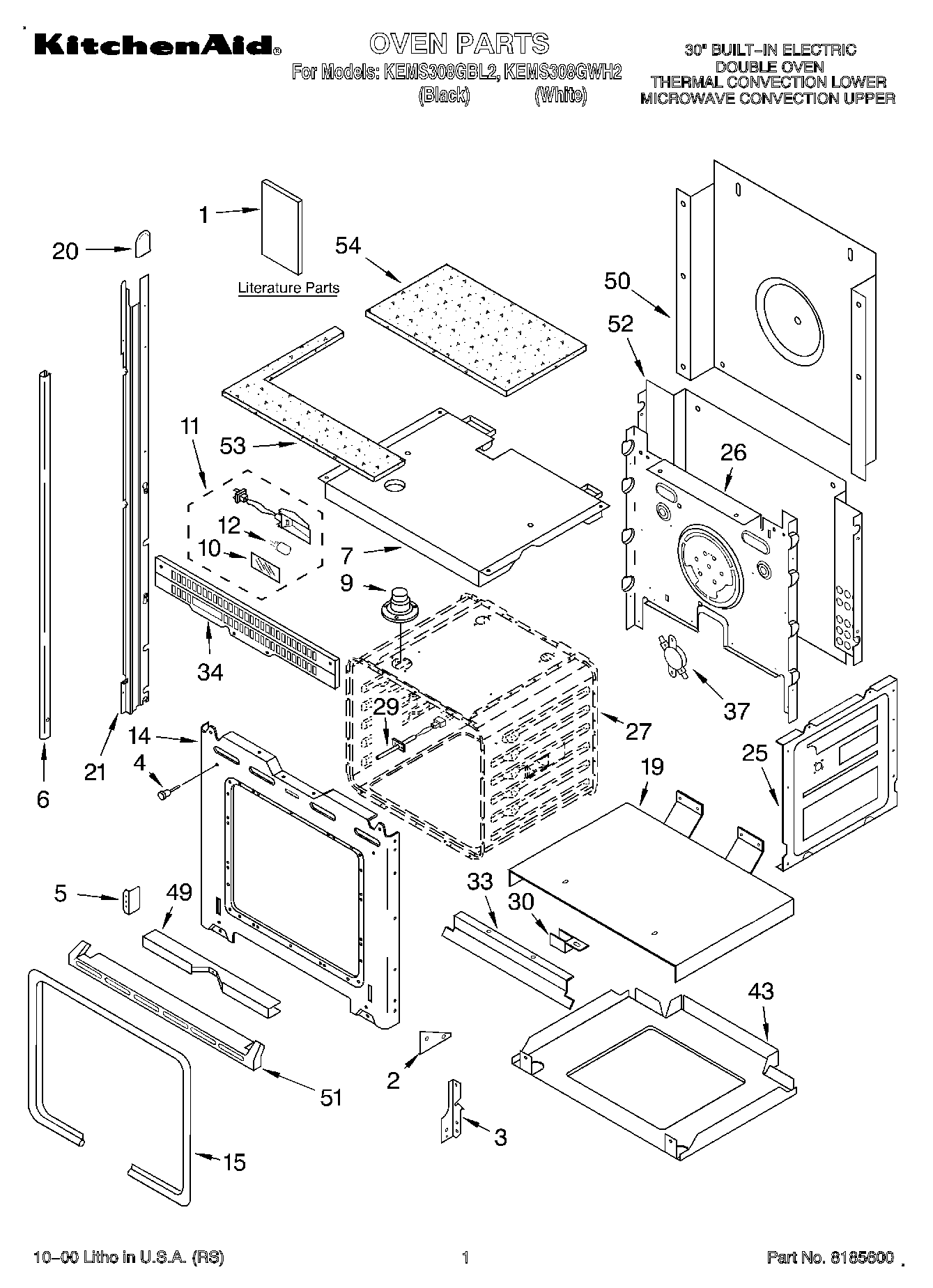

KEMS308GWH2 01 – OVEN, LITERATURE

KEMS308GWH2 01 – OVEN, LITERATURE

Written by

in

KEMS308GWH2 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Easy Set Guide)
1Literature Parts (Cookbook (T/C Oven))
2WP4455509 Whirlpool Support Bracket
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5Bracket, Support
6Trim, Side (RH Black)
6Trim, Side (LH White)
6Trim, Side (LH Black)
6Trim, Side (RH White)
6Trim, Side (White)
6WP8281236 Whirlpool Screw
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33WPL 4451619
34WP4450038 Whirlpool Screw
34WPL 4451667
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51Screw, (2)
51WPL 4448478
51WPL 4448477
52WPL 4451756
53WPL 4452492
54WPL 4452491
54W11684730 Whirlpool Insulation
54WPL 4450365
