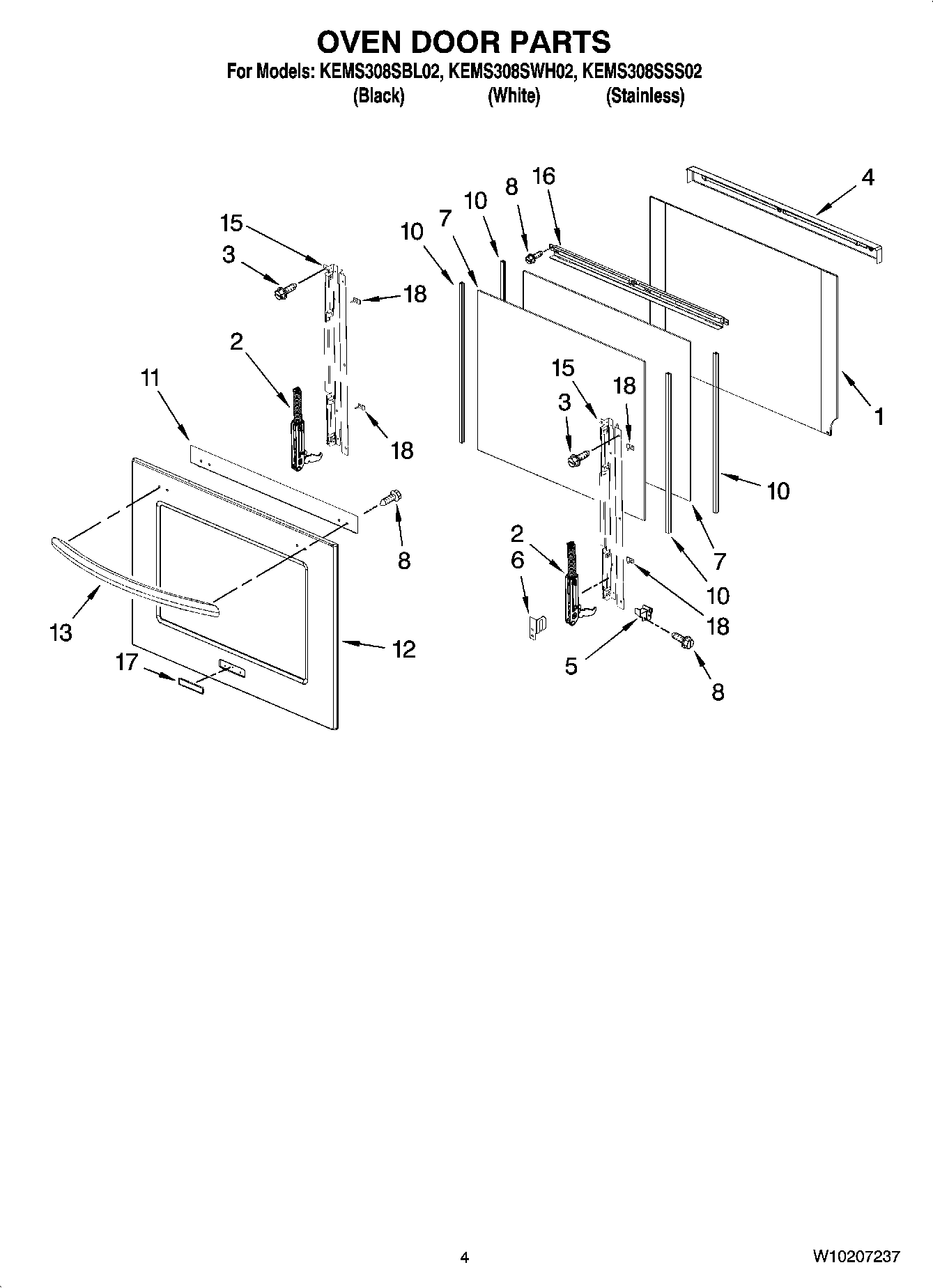

KEMS308SBL02 03 – OVEN DOOR PARTS

Products

Position	Product
1	W10755522 Whirlpool Door Glass
2	Hinge, Door
3	WP3196183 Whirlpool Screw
4	Vent, Door Top
5	8304378 Whirlpool Oven Support Bracket
5	Bracket, Door (Right)
6	COVER,HINGE (LEFT)
6	COVER,HINGE (RIGHT)
7	Glass, Inner
8	WP4449154 Whirlpool Screw
10	W10754409 Whirlpool Seal
11	Bracket, Handle
12	Door Glass, Assy Lower Includes 17 (White)
12	Door Glass, Assy Lower Includes 17 (Black)
12	Door Glass, Assembly
13	Handle, Door (Black)
13	Door Handle
13	Handle, Door (White)
15	Frame, Door Side
16	8303746 Whirlpool Bracket Support
17	Badge (White)
17	Badge (Stainless)
17	Badge (Black)
18	Bumper, Glass
