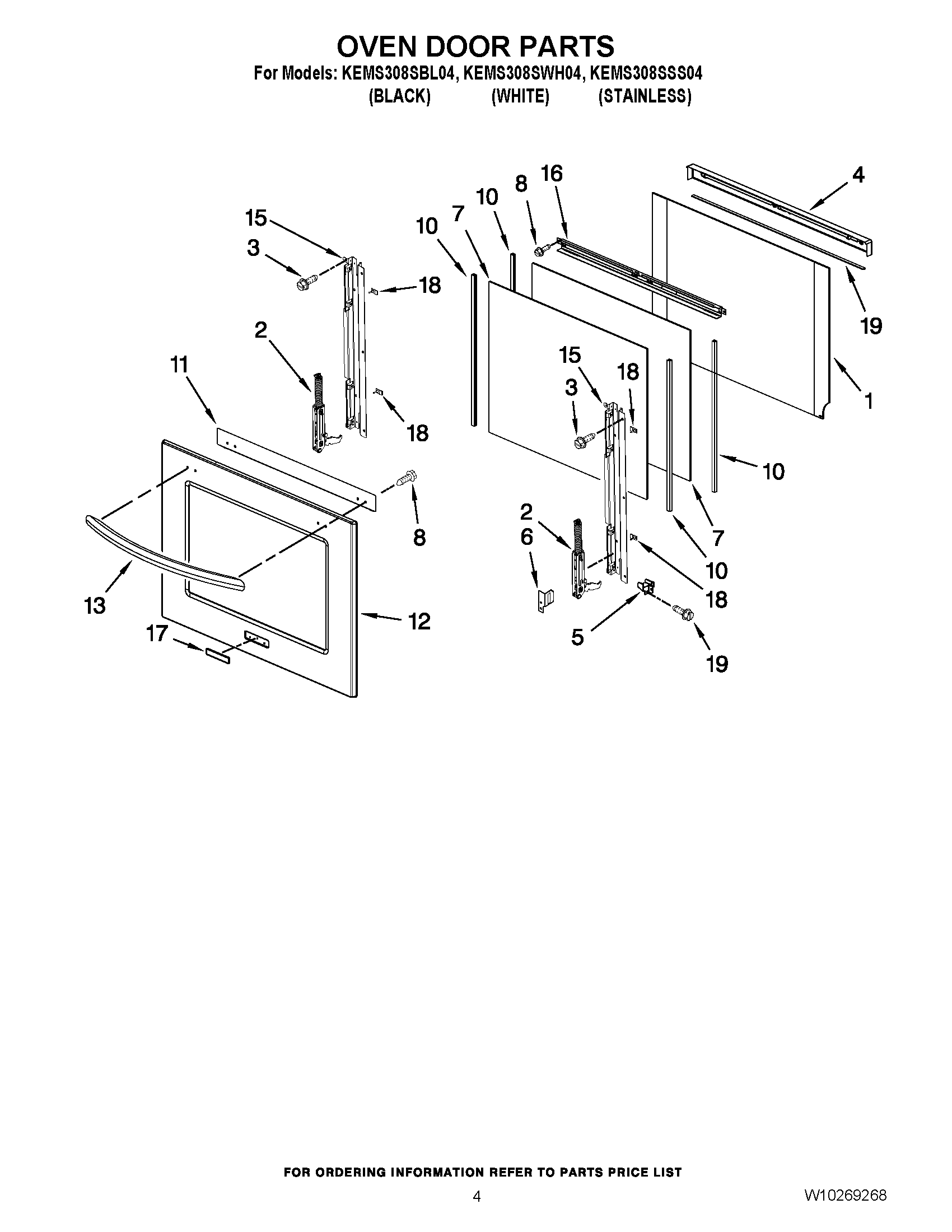

KEMS308SBL04 03 – OVEN DOOR PARTS

Products

PositionProduct
1W10755522 Whirlpool Door Glass
2Hinge, Door
3WP3196183 Whirlpool Screw
4Vent, Door Top
58304378 Whirlpool Oven Support Bracket
5Bracket, Door (Right)
6COVER,HINGE (LEFT)
6COVER,HINGE (RIGHT)
7Glass, Inner
8WP4449154 Whirlpool Screw
10W10754409 Whirlpool Seal
11Bracket, Handle
12Door Glass, Assy Lower Includes 17 (Black)
12Door Glass, Assembly
12Door Glass, Assy Lower Includes 17 (White)
13DOOR HANDLE
13HANDLE, DOOR (WHITE)
13HANDLE, DOOR (BLACK)
15Frame, Door Side
168303746 Whirlpool Bracket Support
17WPW10243392 Whirlpool Dishwasher Nameplate
17WPW10243391 Whirlpool Refrigerator Nameplate
17WPW10243393 Whirlpool Dishwasher Nameplate
18Bumper, Glass
19W10754473 Whirlpool Seal
