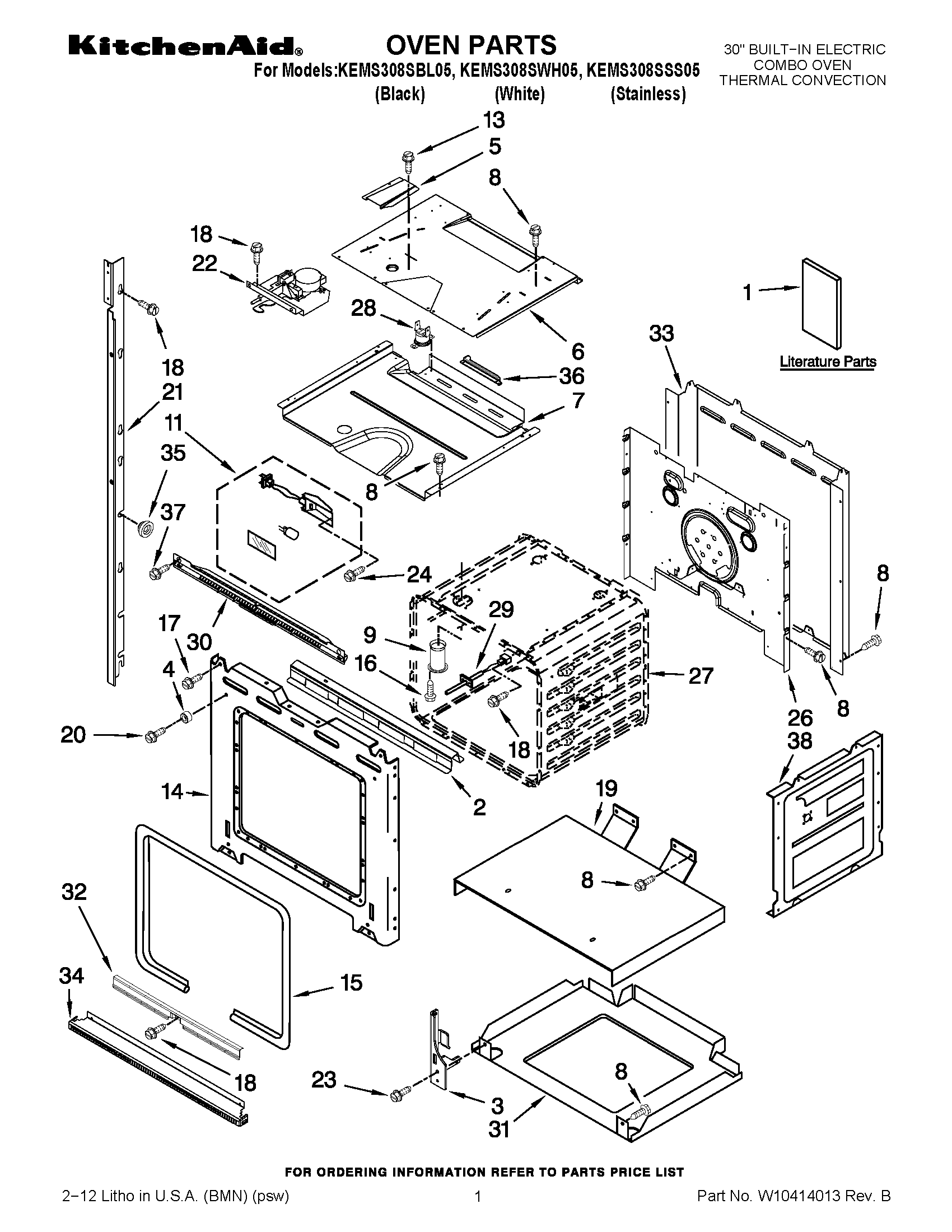

KEMS308SBL05 01 – OVEN PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
1	Easy Set Guide (Oven)
1	Easy Set Guide (Microwave)
1	Use & Care Guide (Microwave)
1	Use & Care Guide (Combo)
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet (English)
1	TECH SHEET (FRENCH)
1	Installation Instructions
2	Bracket, Base
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	Exhaust,Vent Slope
6	Divider, Vent
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
11	WPW10307114 Whirlpool Light
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	WP8304493 Whirlpool Door Gasket
16	SCREW
17	Screw
18	W10142289 Whirlpool Air Conditioner Screw
19	Support, Insulation
20	WP4450038 Whirlpool Screw
21	MOUNTING RAIL,SIDE (LEFT)
21	MOUNTING RAIL,SIDE (RIGHT)
21	Mounting Rail, Side Right (White)
21	Mounting Rail, Side Left (White)
22	W11029221 Whirlpool Door Latch
24	4449748 Whirlpool Oven Screw
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	WP8304452 Whirlpool Range Thermal Fuse
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Center Vent
31	Base, Chassis
32	Retainer, Gasket
33	Cover, Back
34	Trim, Bottom Vent (Black)
34	Trim, Bottom Vent
34	Trim, Bottom Vent (White)
35	WP4448444 Whirlpool Grommet
36	BRACKET, THERMOSTAT
37	SCREW
38	W10782197 Whirlpool Side Panel
