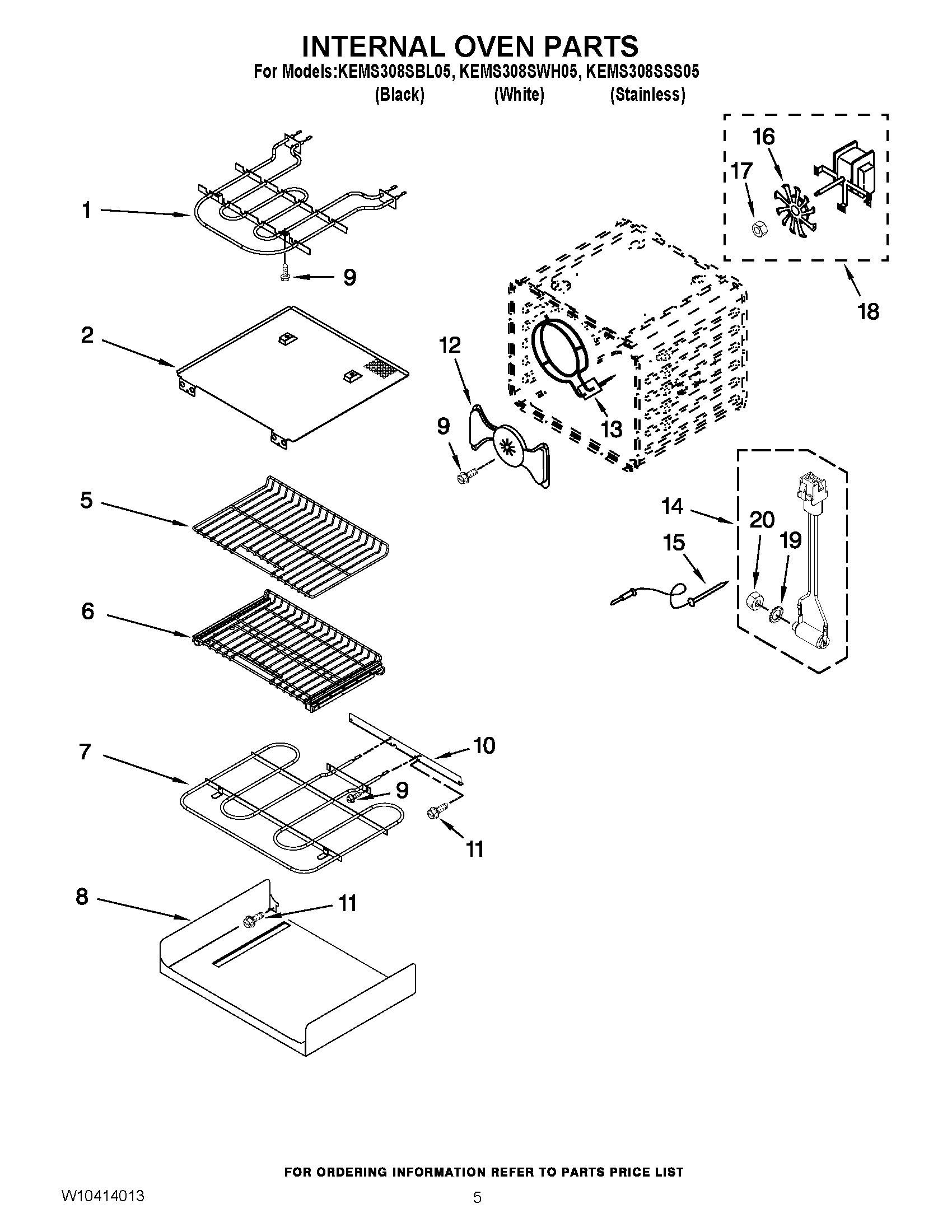

KEMS308SBL05 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WP8304602 Whirlpool Heat Shield Assembly
5	W11550107 Whirlpool Oven Rack
6	W11186364 Whirlpool Oven Rack
7	ELMNT-BAKE
8	Tray, Hidden Bake
9	WP4449154 Whirlpool Screw
10	4450039 Whirlpool Oven Access Cover
11	Screw
12	8303962BU Whirlpool Convection Baffle
13	WP9760769 Whirlpool Element Assembly
14	8186589 Whirlpool Jack Probe
15	WP9755542 Whirlpool Oven Meat Probe
16	W10758272 Whirlpool Convection Fan
17	WPW10116349 Whirlpool Nut
18	W10794022 Whirlpool Oven Cooktop Fan Motor
19	WP9755547 Whirlpool Lockwasher
20	WP9755546 Whirlpool Locknut
