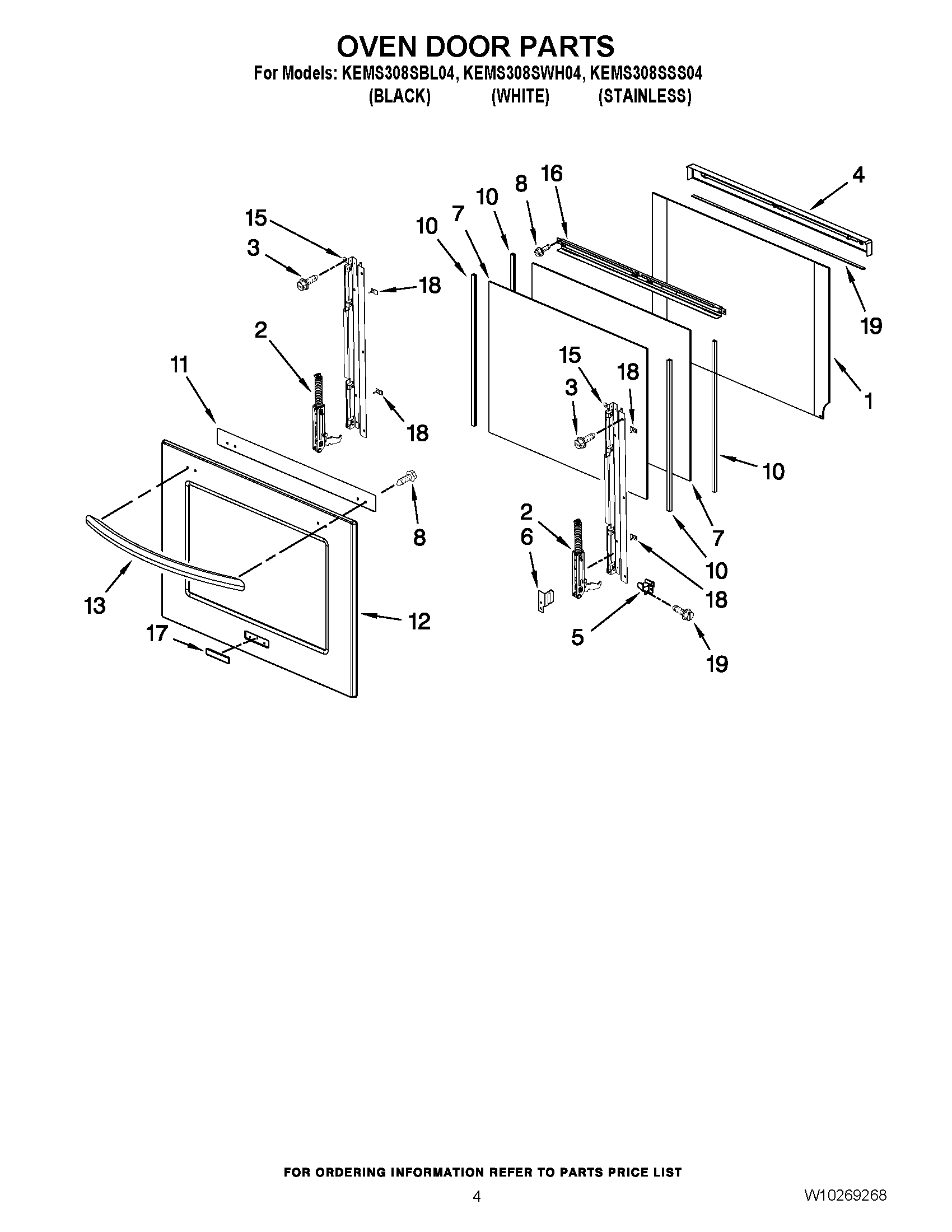

KEMS308SSS04 03 – OVEN DOOR PARTSadmin2025-04-26T10:31:32+00:00KEMS308SSS04 03 – OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | W10755522 Whirlpool Door Glass |
| 2 | Hinge, Door |
| 3 | WP3196183 Whirlpool Screw |
| 4 | Vent, Door Top |
| 5 | 8304378 Whirlpool Oven Support Bracket |
| 5 | Bracket, Door (Right) |
| 6 | COVER,HINGE (LEFT) |
| 6 | COVER,HINGE (RIGHT) |
| 7 | Glass, Inner |
| 8 | WP4449154 Whirlpool Screw |
| 10 | W10754409 Whirlpool Seal |
| 11 | Bracket, Handle |
| 12 | Door Glass, Assy Lower Includes 17 (Black) |
| 12 | Door Glass, Assembly |
| 12 | Door Glass, Assy Lower Includes 17 (White) |
| 13 | DOOR HANDLE |
| 13 | HANDLE, DOOR (WHITE) |
| 13 | HANDLE, DOOR (BLACK) |
| 15 | Frame, Door Side |
| 16 | 8303746 Whirlpool Bracket Support |
| 17 | WPW10243392 Whirlpool Dishwasher Nameplate |
| 17 | WPW10243391 Whirlpool Refrigerator Nameplate |
| 17 | WPW10243393 Whirlpool Dishwasher Nameplate |
| 18 | Bumper, Glass |
| 19 | W10754473 Whirlpool Seal |
