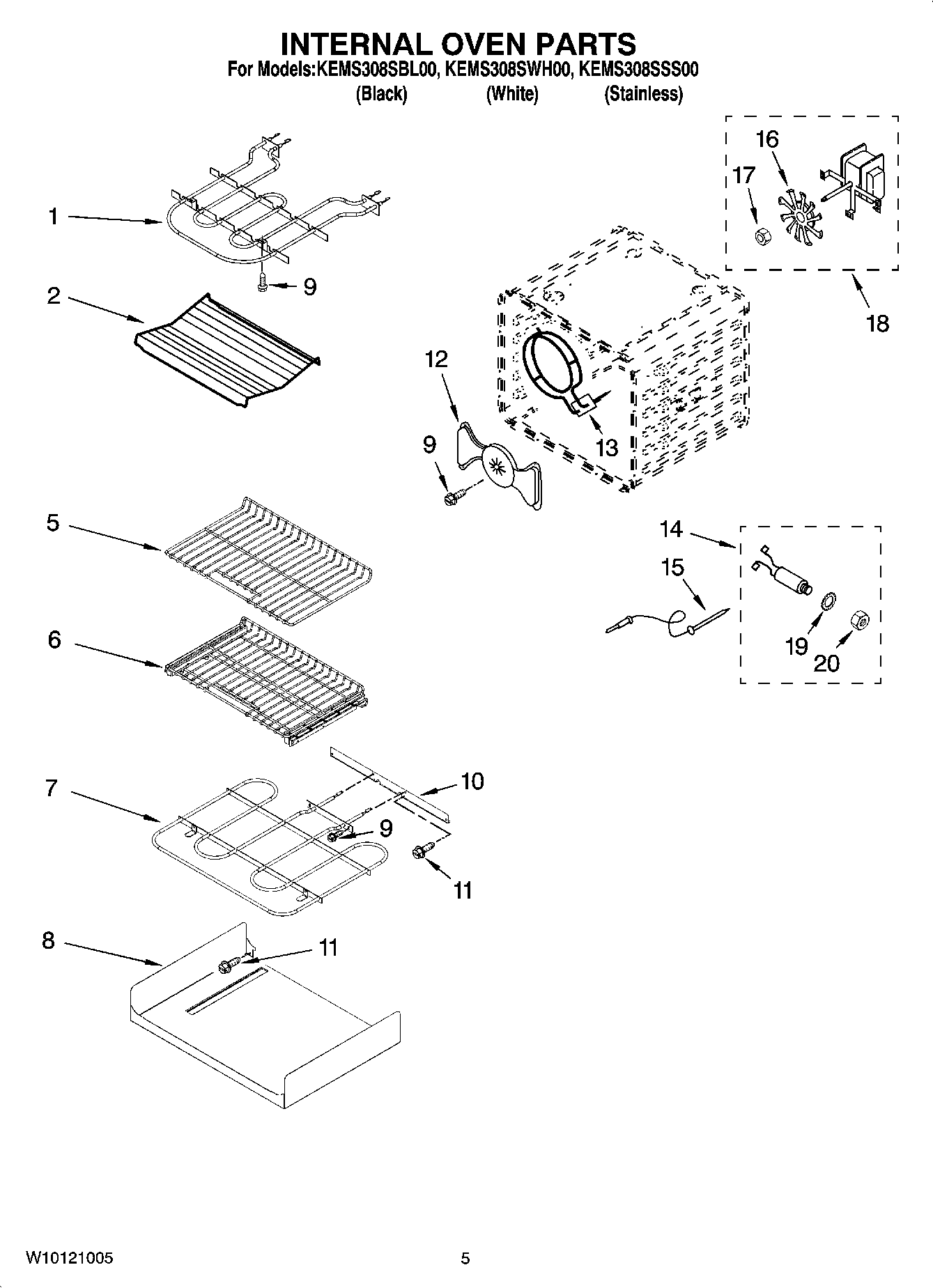

KEMS308SWH00 04 – INTERNAL OVEN PARTS

KEMS308SWH00 04 – INTERNAL OVEN PARTS

Written by

in

KEMS308SWH00 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2Rack, Roasting
5W11550107 Whirlpool Oven Rack
6W11186364 Whirlpool Oven Rack
7ELMNT-BAKE
8Tray, Hidden Bake
9WP4449154 Whirlpool Screw
104450039 Whirlpool Oven Access Cover
11WP4449809 Whirlpool Screw
128303962BU Whirlpool Convection Baffle
13WP9760769 Whirlpool Element Assembly
148186589 Whirlpool Jack Probe
15WP9755542 Whirlpool Oven Meat Probe
16WP4452226 Whirlpool Convection Fan
17Nut
18Motor Convection
19WP9755547 Whirlpool Lockwasher
20WP9755546 Whirlpool Locknut
