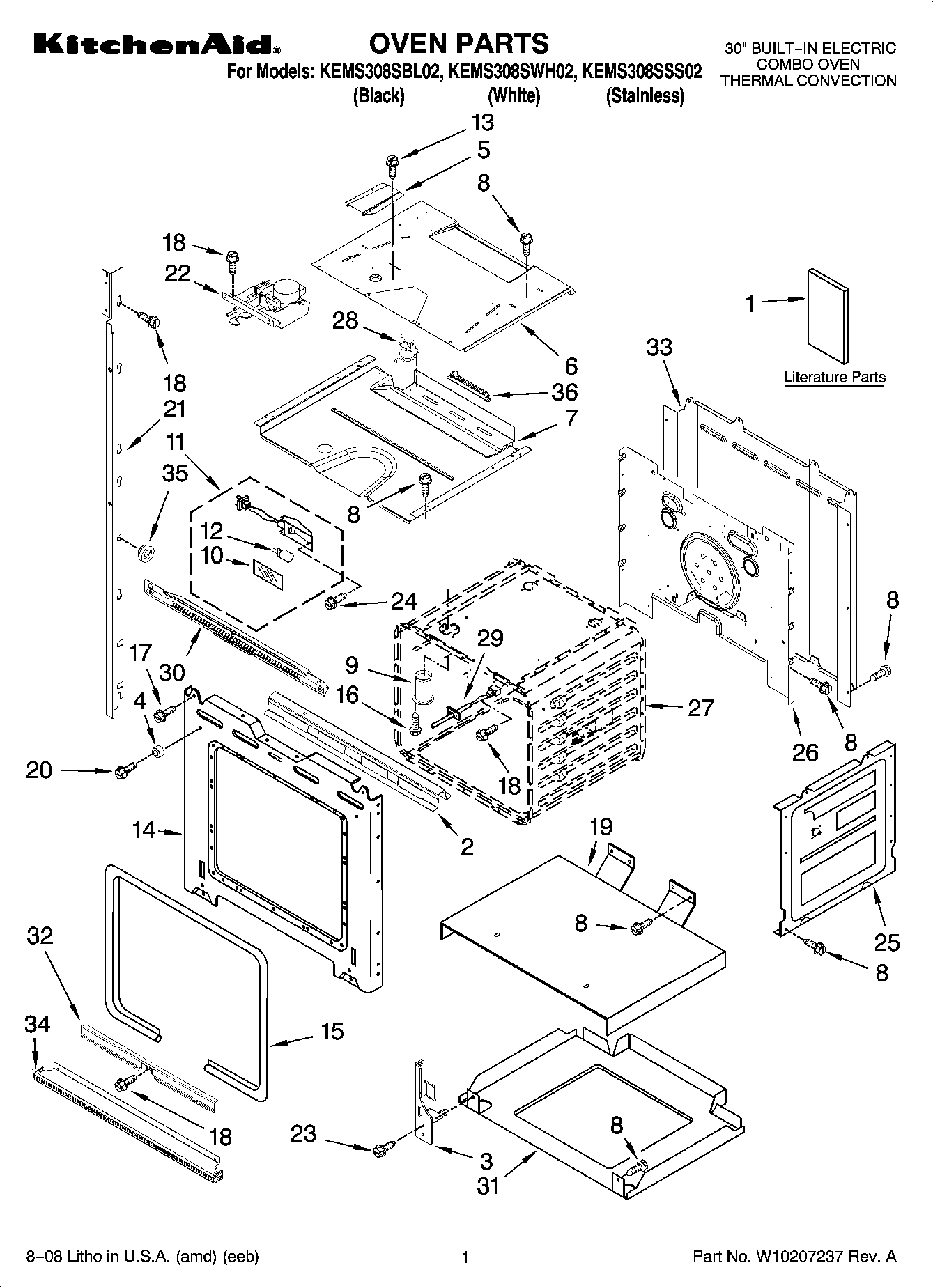

KEMS308SWH02 01 – OVEN PARTSadmin2025-04-26T10:31:40+00:00KEMS308SWH02 01 – OVEN PARTS
Products
| Position | Product |
|---|
| Insulation, Wrap |
| Insulation, Back |
| Following Parts Not Illustrated |
| Insulation |
| 1 | Use & Care Guide (Microwave) |
| 1 | Use & Care Guide (Combo) |
| 1 | Easy Set Guide (Microwave) |
| 1 | Tech Sheet (French) |
| 1 | Tech Sheet (English) |
| 1 | Installation Instructions |
| 1 | Easy Set Guide (Oven) |
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | Safer Cooking Tips (French) |
| 2 | Bracket, Base |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 4 | W10105790 Whirlpool Bumper |
| 5 | Exhaust,Vent Slope |
| 6 | Divider, Vent |
| 7 | Top Chassis |
| 8 | WP4449809 Whirlpool Screw |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | W10169756 Whirlpool Light Lens |
| 11 | WPW10307114 Whirlpool Light |
| 12 | BULB-LIGHT |
| 13 | WP3400832 Whirlpool Screw |
| 14 | Frame, Front |
| 15 | WP8304493 Whirlpool Door Gasket |
| 16 | SCREW |
| 17 | Screw |
| 18 | W10142289 Whirlpool Air Conditioner Screw |
| 19 | Support, Insulation |
| 20 | WP4450038 Whirlpool Screw |
| 21 | Mounting Rail, Side Right (White) |
| 21 | MOUNTING RAIL,SIDE (RIGHT) |
| 21 | Mounting Rail, Side Left (White) |
| 21 | MOUNTING RAIL,SIDE (LEFT) |
| 22 | W11029221 Whirlpool Door Latch |
| 23 | WP4449743 Whirlpool Screw |
| 24 | 4449748 Whirlpool Oven Screw |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not serviceable) |
| 28 | WP8304452 Whirlpool Range Thermal Fuse |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 30 | Center Vent |
| 31 | Base, Chassis |
| 32 | Retainer, Gasket |
| 33 | Cover, Back |
| 34 | Trim, Bottom Vent (Stainless) |
| 34 | Trim, Bottom Vent (White) |
| 34 | Trim, Bottom Vent (Black) |
| 35 | WP4448444 Whirlpool Grommet |
| 36 | BRACKET, THERMOSTAT |
