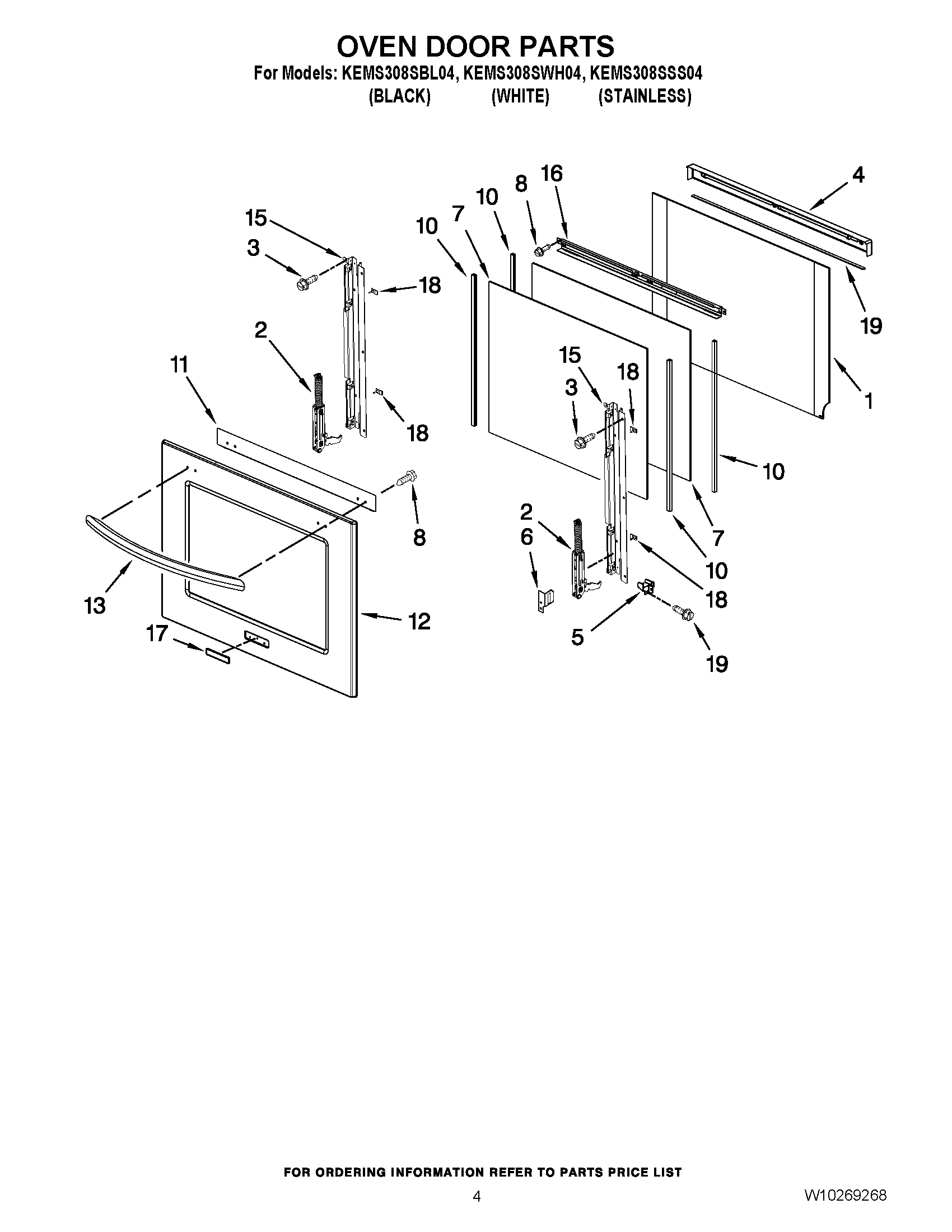

KEMS308SWH04 03 – OVEN DOOR PARTS

Products

Position	Product
1	W10755522 Whirlpool Door Glass
2	Hinge, Door
3	WP3196183 Whirlpool Screw
4	Vent, Door Top
5	8304378 Whirlpool Oven Support Bracket
5	Bracket, Door (Right)
6	COVER,HINGE (LEFT)
6	COVER,HINGE (RIGHT)
7	Glass, Inner
8	WP4449154 Whirlpool Screw
10	W10754409 Whirlpool Seal
11	Bracket, Handle
12	Door Glass, Assy Lower Includes 17 (Black)
12	Door Glass, Assembly
12	Door Glass, Assy Lower Includes 17 (White)
13	DOOR HANDLE
13	HANDLE, DOOR (WHITE)
13	HANDLE, DOOR (BLACK)
15	Frame, Door Side
16	8303746 Whirlpool Bracket Support
17	WPW10243392 Whirlpool Dishwasher Nameplate
17	WPW10243391 Whirlpool Refrigerator Nameplate
17	WPW10243393 Whirlpool Dishwasher Nameplate
18	Bumper, Glass
19	W10754473 Whirlpool Seal
