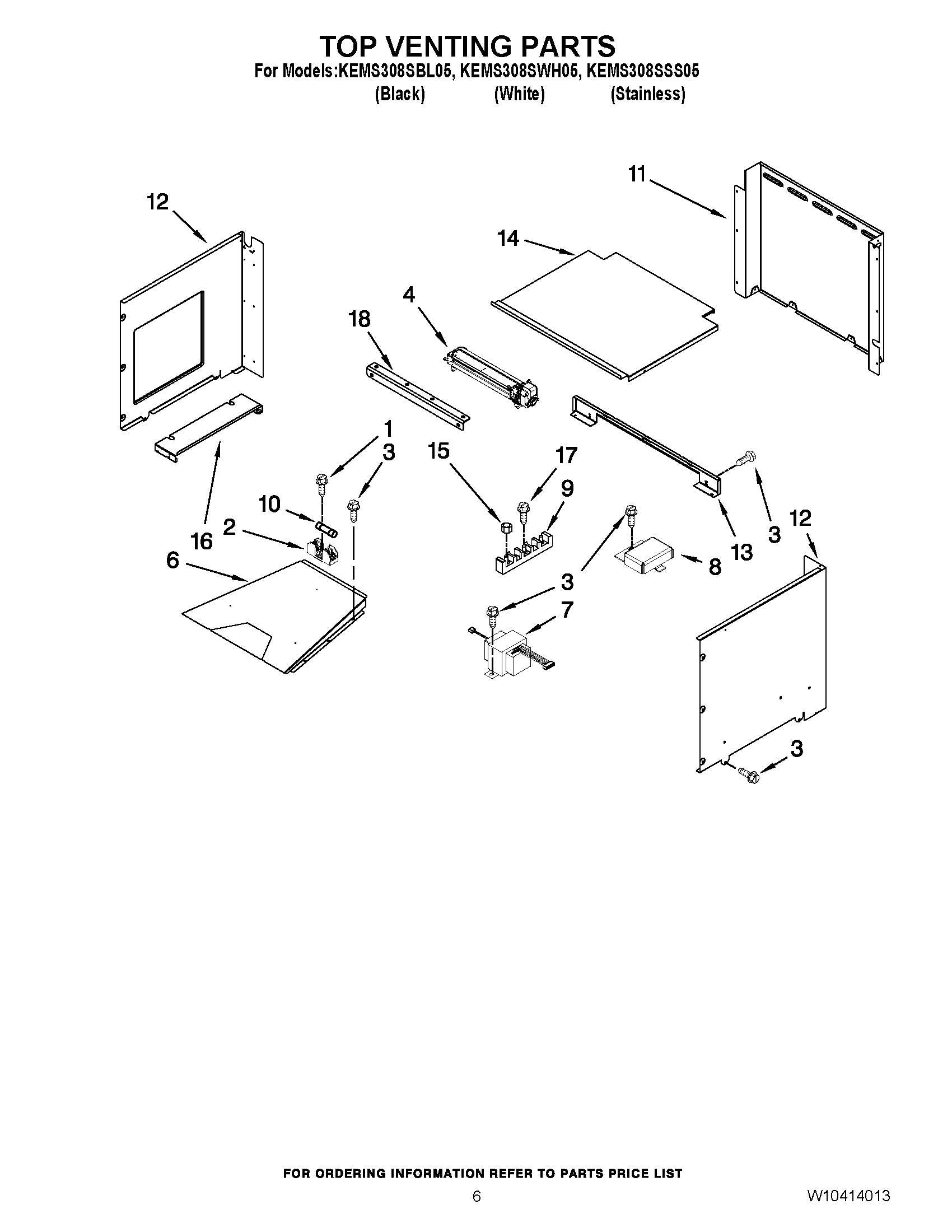

KEMS308SWH05 05 – TOP VENTING PARTS

KEMS308SWH05 05 – TOP VENTING PARTS

Written by

in

KEMS308SWH05 05 – TOP VENTING PARTS

Products

PositionProduct
1WP4449154 Whirlpool Screw
24454949 Whirlpool Oven Fuse Block
3SCREW
4WP8303972 Whirlpool Blower
6Duct, Air Outlet
7Transformer, Control
88285593 Whirlpool Oven Wire Cover
9BLOCK, TERMINAL
10WPW10017410 Whirlpool Fuse
11Back Chassis Panel
12Side, Combo (Left)
12Side, Combo (Right)
13Backer, Control
14Cover, Top Rear
15Nut
16SUPPORT
17Screw
18BRACKET, MICROWAVE
