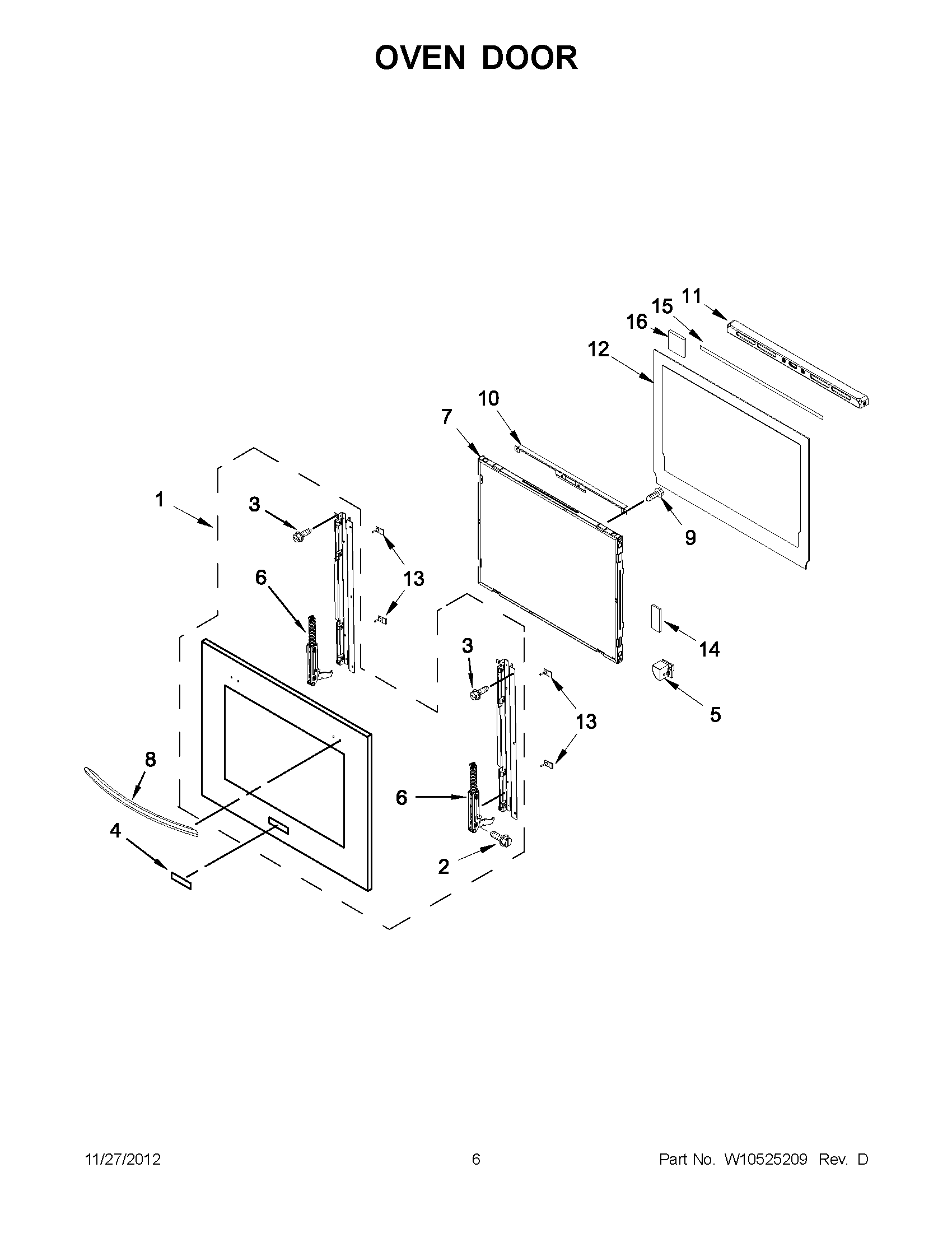

KEMS309BBL00 03 – OVEN DOORadmin2025-04-26T10:32:38+00:00KEMS309BBL00 03 – OVEN DOOR ProductsPositionProduct1ASSEMBLY, DOOR GLASS (STAINLESS)1ASSEMBLY, DOOR GLASS (WHITE)1ASSEMBLY, DOOR GLASS (STAINLESS)1ASSEMBLY, DOOR GLASS (BLACK)2WP3196183 Whirlpool Screw3SCREW4WPW10320959 Whirlpool Dishwasher Nameplate4WPW10243393 Whirlpool Dishwasher Nameplate4WPW10243392 Whirlpool Dishwasher Nameplate4WPW10243391 Whirlpool Refrigerator Nameplate5WPW10581826 Whirlpool Support Bracket5BRACKET, DOOR SIDE LEFT6W10825778 Whirlpool Whirlpool Door Hinge7WPW10347598 Whirlpool Door Glass8W10246102A Whirlpool Range Oven Door Handle8W10284916 Whirlpool Door Handle8W10284917 Whirlpool Door Handle8WPW10289076 Whirlpool Door Handle9WP8533988 Whirlpool Screw Fastener10WPW10459351 Whirlpool Glass Bracket11WPW10416257 Whirlpool Vent Trim12WPW10335920 Whirlpool Glass Frame13WPW10323551 Whirlpool Bumper14W10840861 Whirlpool Spacer15W11082539 Whirlpool Vent Gasket16WPW10517428 Whirlpool Spacer
