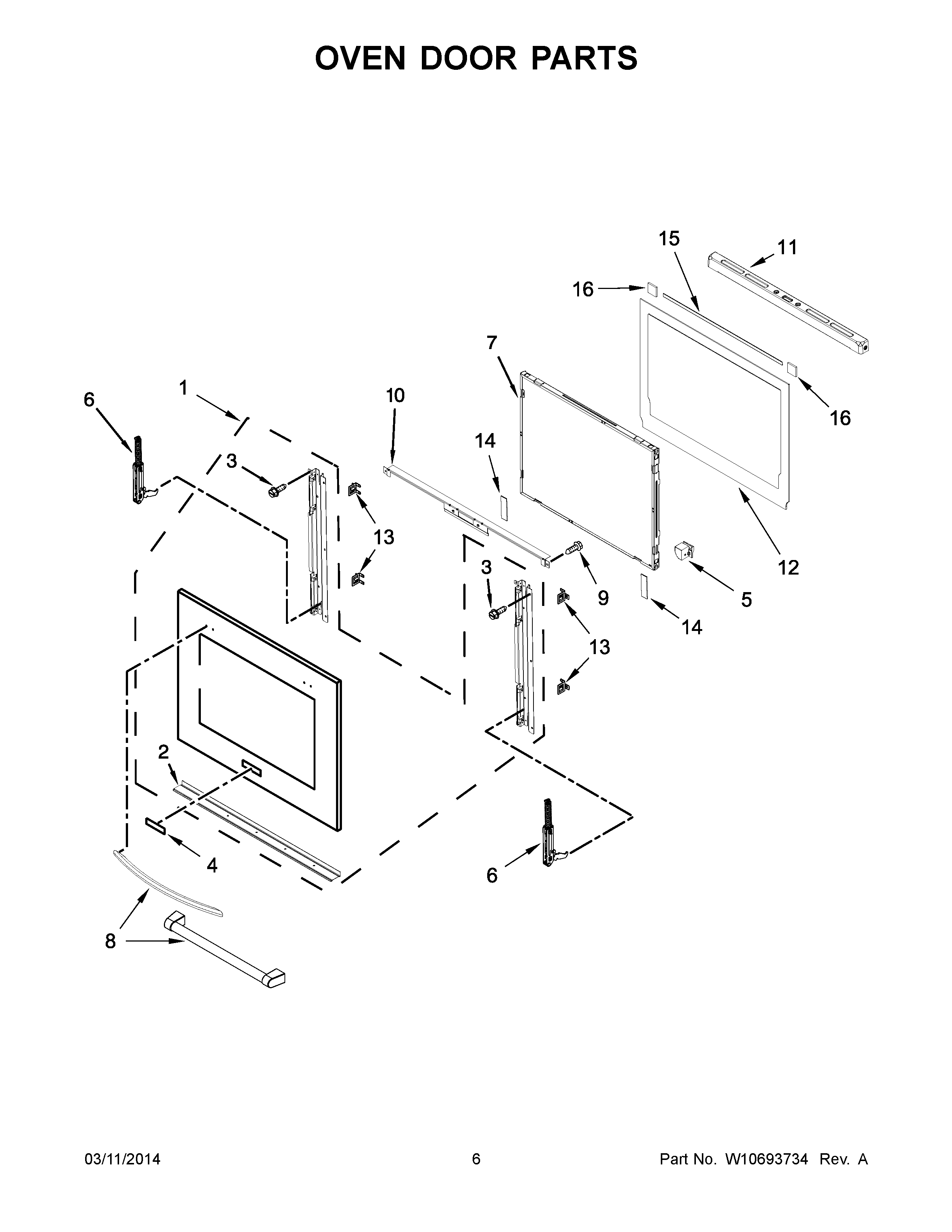

KEMS309BBL01 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR GLASS (BLACK)
1	ASSEMBLY, DOOR GLASS (STAINLESS)
1	ASSEMBLY, DOOR GLASS (WHITE)
1	ASSEMBLY, DOOR GLASS (STAINLESS)
2	W10479068 Whirlpool Dishwasher Support Bracket
3	SCREW
4	WPW10243393 Whirlpool Dishwasher Nameplate
4	WPW10243391 Whirlpool Refrigerator Nameplate
4	WPW10243392 Whirlpool Dishwasher Nameplate
4	WPW10320959 Whirlpool Dishwasher Nameplate
5	BRACKET, DOOR (LEFT)
5	WPW10581826 Whirlpool Support Bracket
6	W10825778 Whirlpool Whirlpool Door Hinge
7	WPW10347598 Whirlpool Door Glass
8	W10284916 Whirlpool Door Handle
8	W10284917 Whirlpool Door Handle
8	WPW10289076 Whirlpool Door Handle
8	W10246102A Whirlpool Range Oven Door Handle
9	WP8533988 Whirlpool Screw Fastener
10	WPW10459351 Whirlpool Glass Bracket
11	WPW10416257 Whirlpool Vent Trim
12	WPW10335920 Whirlpool Glass Frame
13	WPW10549747 Whirlpool Clip
14	W10840861 Whirlpool Spacer
15	W11082539 Whirlpool Vent Gasket
16	WPW10517428 Whirlpool Spacer
