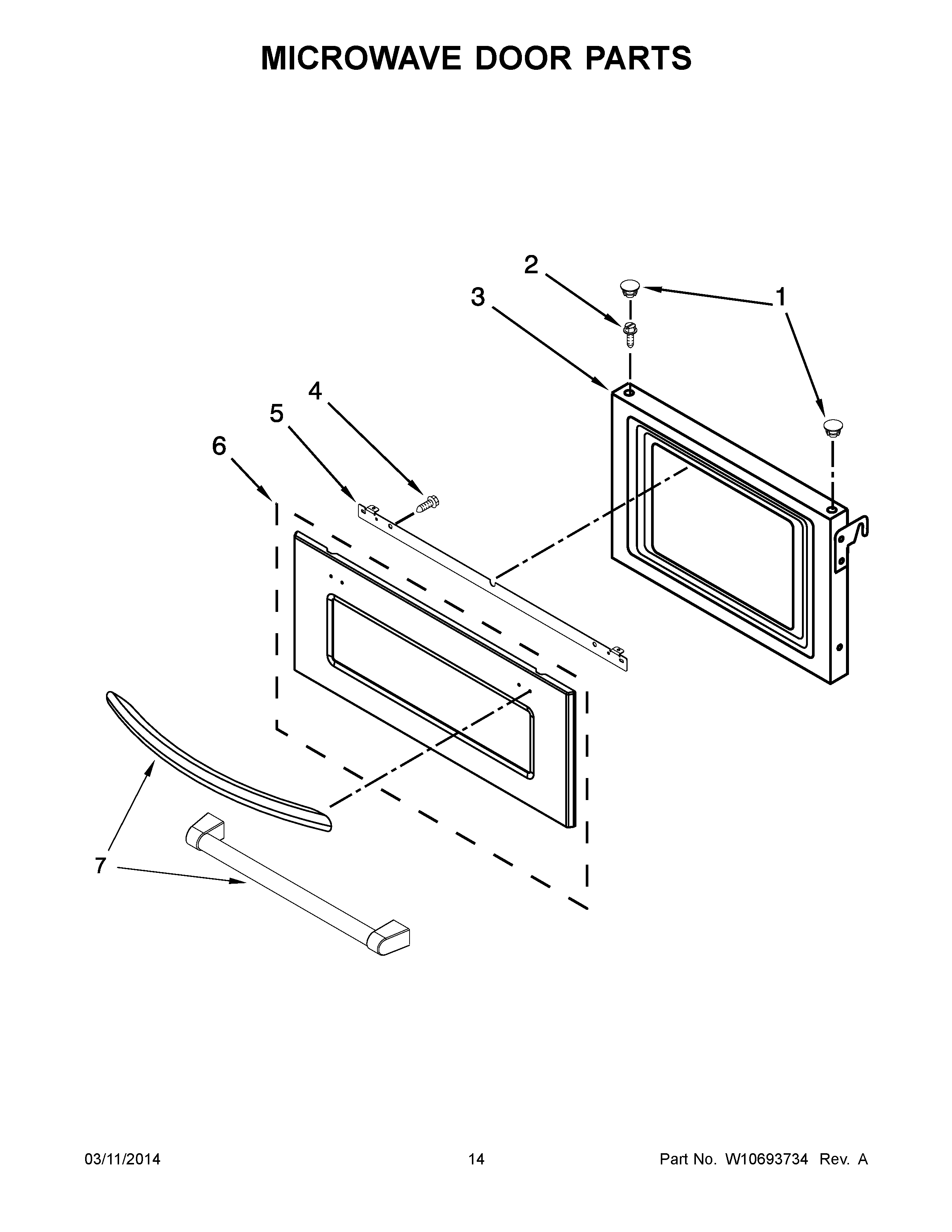

KEMS309BBL01 08 – MICROWAVE DOOR PARTS

KEMS309BBL01 08 – MICROWAVE DOOR PARTS

Written by

in

KEMS309BBL01 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
18304588BL Whirlpool Button Plug
2WP7101P246-60 Whirlpool Screw
3DOOR, INNER
4WP8533988 Whirlpool Screw Fastener
5W10359769 Whirlpool Microwave Door Gasket
6GLASS ASSEMBLY, OUTER DOOR (BLACK)
6GLASS ASSEMBLY, OUTER DOOR (STAINLESS AND PRO-STYLE MODEL)
6GLASS ASSEMBLY, OUTER DOOR (WHITE)
7WPW10289076 Whirlpool Door Handle
7W10284916 Whirlpool Door Handle
7W10246102A Whirlpool Range Oven Door Handle
7W10284917 Whirlpool Door Handle
