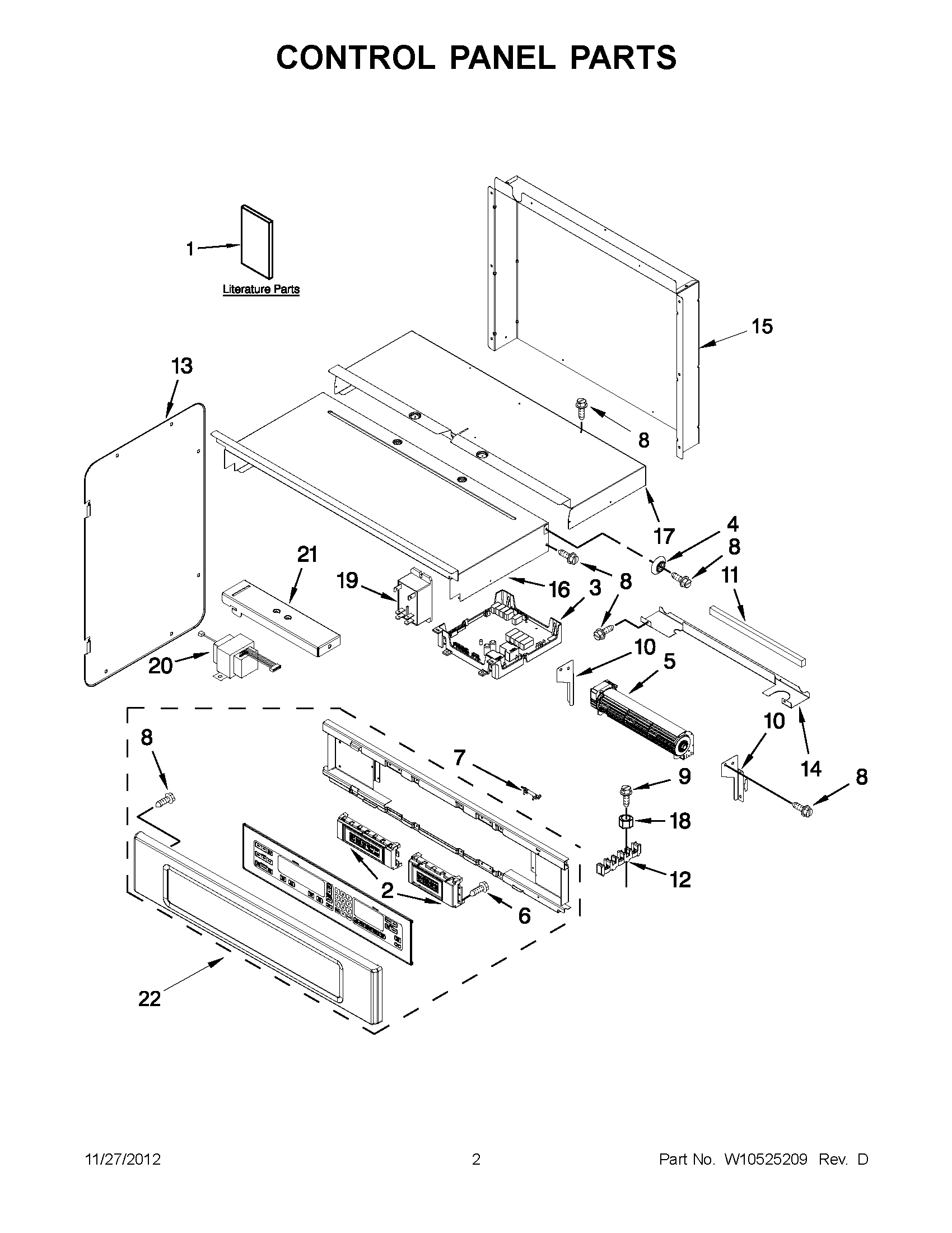

KEMS309BSS00 01 – CONTROL PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	CABINET (NOT A SERVICEABLE PART)
1	TECH SHEET
1	USE AND CARE GUIDE (MICROWAVE OVEN)
1	USE AND CARE GUIDE (LOWER OVEN)
2	WPW10708464-includeCORE Whirlpool WPW10708464 Refrigerator Electronic Control Board + Core
2	WPW10317350-includeCORE Whirlpool WPW10317350 Refrigerator Electronic Control Board + Core
3	BOARD, GOC
4	W10363824 Whirlpool Spacer
5	WPW10260254 Whirlpool Blower
6	WP4449154 Whirlpool Screw
7	WPW10545255 Whirlpool Thermal Fuse
8	SCREW
9	SCREW
10	BRACKET, BLOWER LEFT
10	W10283078 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	BLOCK, TERMINAL
13	CHASSIS, SIDE
14	W10509164 Whirlpool Mounting Bracket
15	W10519703 Whirlpool Rear Cover
16	W10318158 Whirlpool Access Cover Assembly
17	W10283031 Whirlpool Access Cover
18	Nut
19	WP9752759 Whirlpool Relay
20	TRANSFORMER, CONTROL
21	W10323725 Whirlpool Mounting Plate
22	W10570025 Whirlpool Control Panel
22	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
22	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
