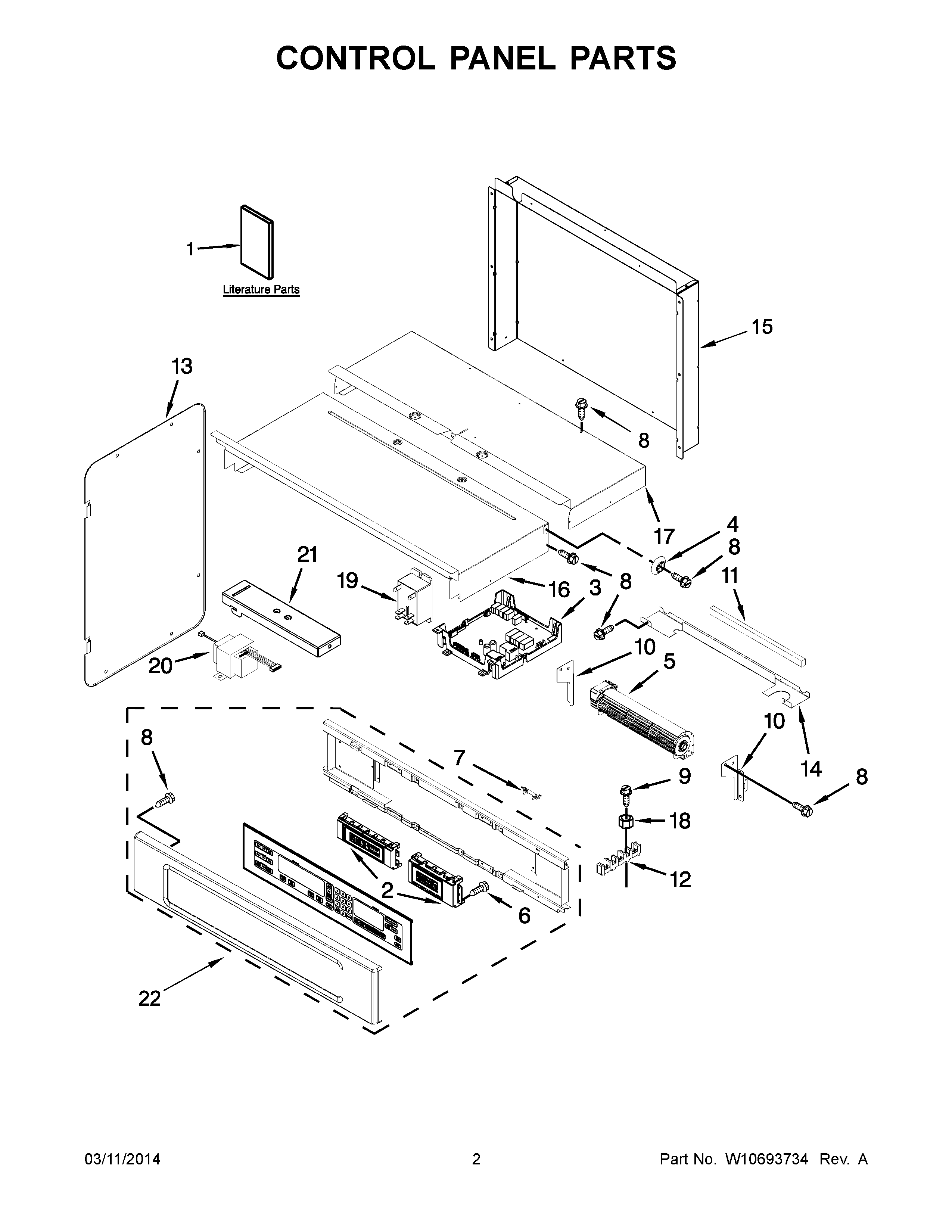

KEMS309BWH01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1TECH SHEET
1USE AND CARE GUIDE (MICROWAVE OVEN)
1USE AND CARE GUIDE (LOWER OVEN)
1INSTALLATION INSTRUCTIONS
2WPW10317350-includeCORE Whirlpool WPW10317350 Refrigerator Electronic Control Board + Core
2WPW10708464-includeCORE Whirlpool WPW10708464 Refrigerator Electronic Control Board + Core
3BOARD, GOC
4W10363824 Whirlpool Spacer
5WPW10641253 Whirlpool Blower Motor
6WP4449154 Whirlpool Screw
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13CHASSIS, SIDE
14W10509164 Whirlpool Mounting Bracket
15W10519703 Whirlpool Rear Cover
16W10318158 Whirlpool Access Cover Assembly
17W10283031 Whirlpool Access Cover
18Nut
19WP9752759 Whirlpool Relay
20TRANSFORMER, CONTROL
21W10323725 Whirlpool Mounting Plate
22W10570025 Whirlpool Control Panel
22ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
22ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE)
