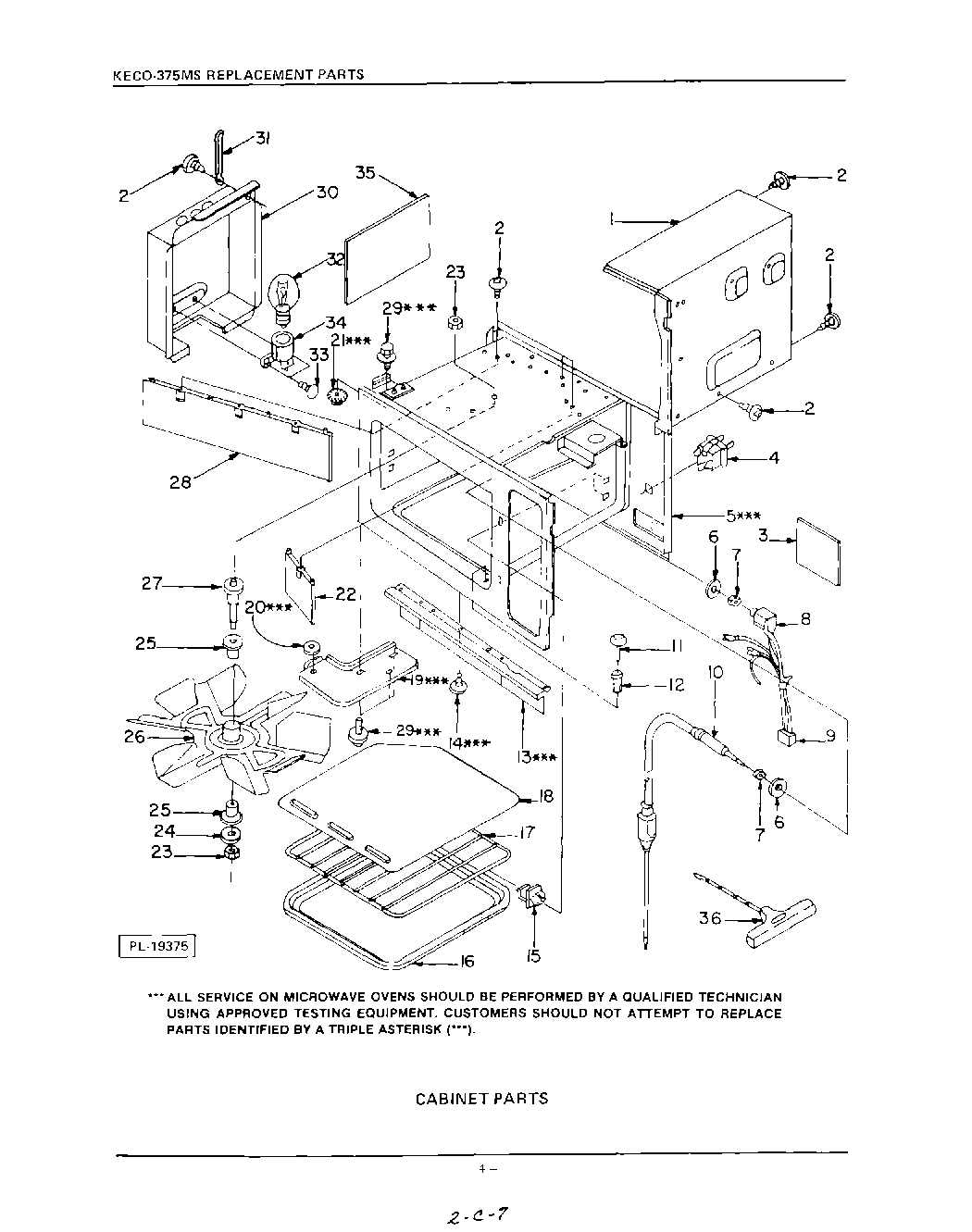

KEMS375SBL0 03 – CABINET

Products

Position	Product
1	WPL 305409
2	Screw, Truss Hd. Tapping, 4 x 8, Z1-2
3	Caution Label and Name Plate
4	AC Plug
5	Oven Cavity xxx (Alos order Caution Label (Key No.3)
6	Special Washer, Temperature Probe Jack
7	Special Nut, Temperature Probe Jack
8	Jack, Temperature Probe
9	5-Wire Harness with Socket
10	Temperature Probe
11	Plastic Stopper, Glass Tray
12	Plastic Stopper
13	Trim Piece Assy. xxx (Incls. Five Screws (Key No. 14), One Ferrite Rubber, One Steel Piece and One P
14	Screw, Truss Hd. Tapping, 4 x 12 mm. Z1-1 xxx
15	Rack Holder
16	Glass Tray
17	Metal Rack
18	Stirrer Cover
19	Hinge, Lowerxxx
20	Washer, 5 mm, U xxx
21	Hex. Nut with Washer, 5 mm, Z1 xxx
22	Air Guide, Stirrer, Right
23	Hex Nut, 8 mm Z1-1
24	Special Washer
25	Collar, Stirrer Shaft
26	Stirrer Fan Assy.
27	Stirrer Shaft
28	Air Guide, Left
29	Bolt, Hex Hd. with Philips Slot, 5 x 12 mm, Z1 xxx
30	Bracket, Lamp Cover
31	Wire Clip
32	Lamp, 120 V., 30 W
33	Screw, Pan Hd. Tapping, 3 x 8 mm, Z1-2
34	Lamp Socket (UL Listed)
35	Light Opening Cover
36	Probe Spacer
