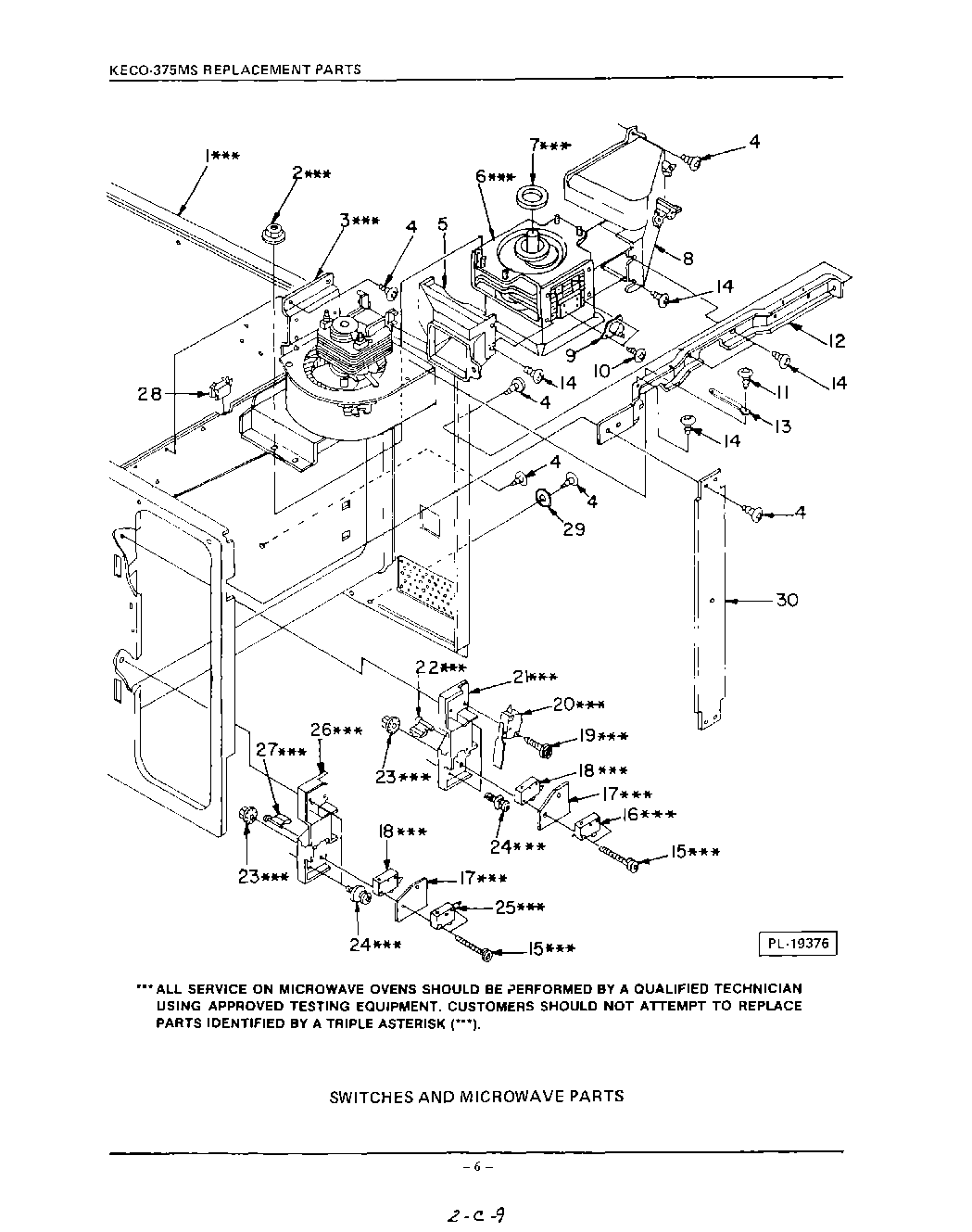

KEMS375SBL0 04 – SWITCHES AND MICROWAVE

Products

Position	Product
1	Oven Cavity xxx (Alos order Caution Label (Key No.3)
2	Hex Nut with Washer, 5 mm Z1 xxx
3	Blower Assembly
4	Screw, Flat Hd. Tapping, 3 x 8 mm, ZK-1 xxx
5	Duct, Intake
6	Magnetron, 2M-128 (B-RT) xxx (Incls. Key No. 7)
7	RF Gasket, Magnetron xxx
8	Duct, Exhaust
9	Thermostat, Magnetron
10	Screw, Pan Hd. Tapping, 3 x 6 mm, Z1 xxx
11	Screw, Truss Hd. Tapping, 4 x 14 mm, Z1-1
12	Stay, Cavity and Magnetron
13	Wire Clip
14	Screw, Truss Hd. Tapping, 4 x 10 mm, Z1-1
15	Screw, Pan Hd. Machine, 3 x 30 mm, Z1 xxx
16	Micro Switch, Door Sensingxxx
17	Insulation Sheet, Micro Switch xxx
18	Micro Switch, 1st and 2nd Interlockxxx
19	Screw, Pan Hd. Tapping, 3 x 16 mm, Z1-1xxx
20	Micro Switch, Interlock Monitor xxx
21	Lever Stopper xxx
22	Latch Lever xxx
23	Hex Nut with Washer, 3 mm, Z1-1
24	Screw, Pan Hd. Machine, 4 x 10 mm, Brass, N1
25	Micro Switch, Cavity Light xxx
26	Lever Stopper xxx
27	Latch Lever xxx
28	Insulator, Oven Cavity
29	Washer, External Tooth, 4 mm, U
30	WP305448 Whirlpool Timer
