KEMS375SBL0 07 – CONTROL PANEL

Products

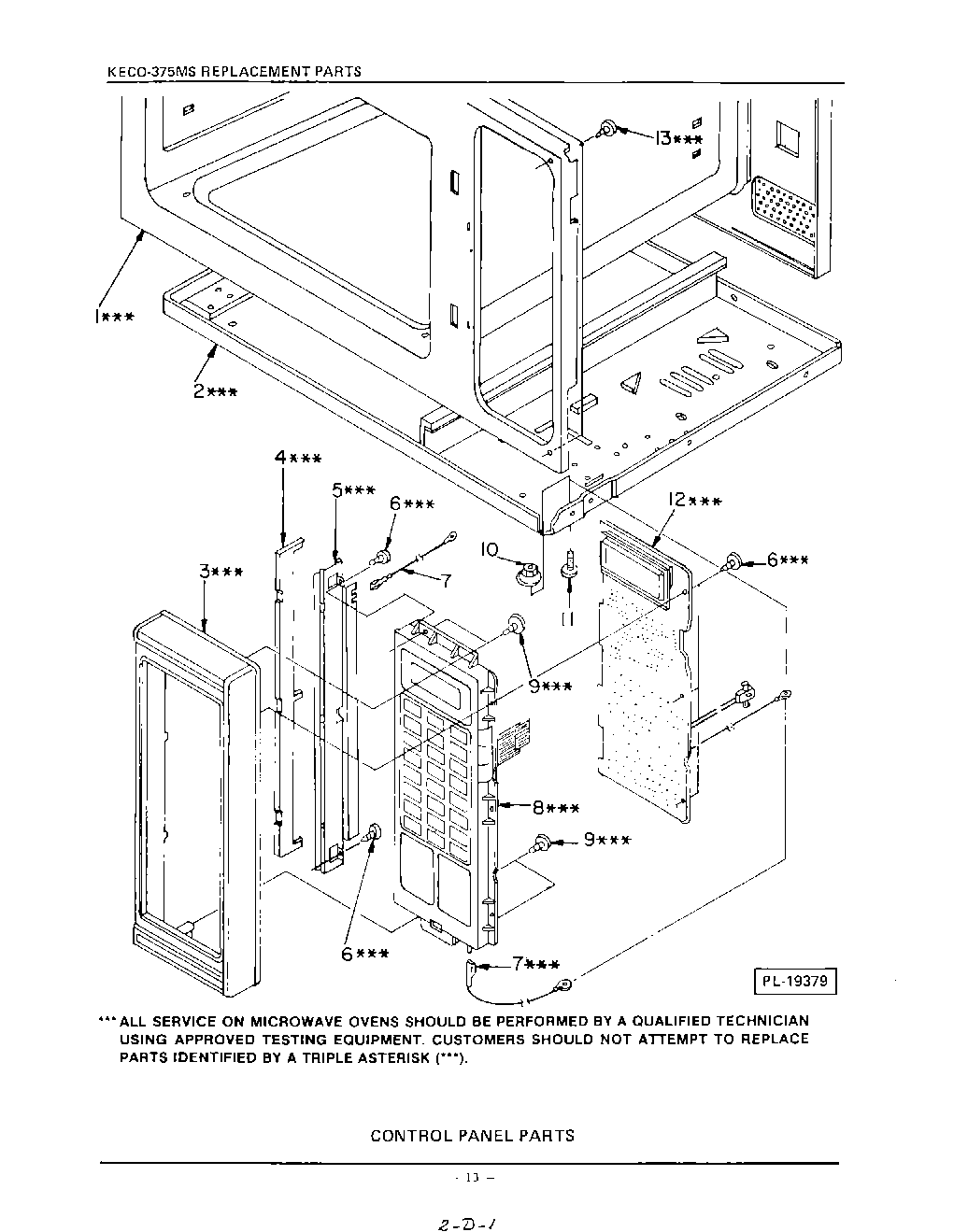

PositionProduct
1Oven Cavity xxx (Alos order Caution Label (Key No.3)
2Bottom Plate xxx
3Control Frame with Metal Piece xxx
4Ferrite Rubber xxx
5Metal Bracket xxx
6Screw, Pan Hd. Tapping, 3 x 12 mm, C2-1 xxx
7Ground Lead xxx
8Touch Key Board Assy. (Incls. Harness) xxx
9Screw, Truss Hd. Tapping, 4 x 12 mm. Z1-1 xxx
10Hex Nut with Washer, 4 mm, Z1-1
11Screw, Pan Hd. Diacut, 4 x 10 mm, Z1
12Power and Control Circuit Board Complete xxx
13Screw, Truss Hd. Tapping, 4 x 10 mm, Z1-1
