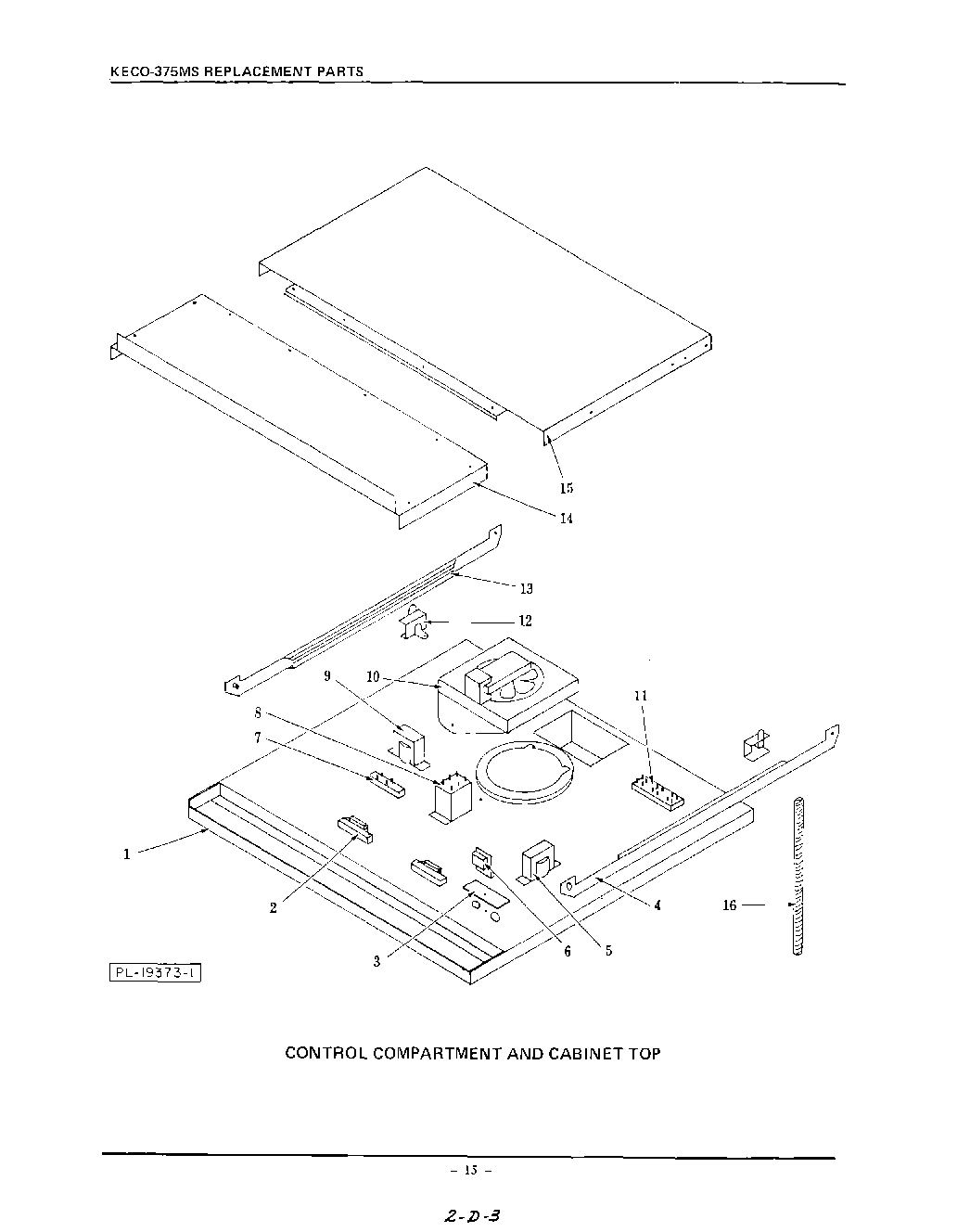

KEMS375SBL0 08 – CONTROL COMPARTMENT AND CABINET TOP

KEMS375SBL0 08 – CONTROL COMPARTMENT AND CABINET TOP

Written by

in

KEMS375SBL0 08 – CONTROL COMPARTMENT AND CABINET TOP

Products

PositionProduct
1Sandwich Panel
2Resistor Block
3Hole Cover
4Extension Arm, R.H.
5Ballast
6Thermal Relay KESO-145/175, KEDO-245/275
7Terminal Block, Distribution
8Relay, Meat Probe KESO-145/175, KEDO-245/275
9Transformer, Meat Probe
10Blower Assy
11Terminal Block, Power Supply
12Arm Guide
13Extension Arm, L.H.
14Cabinet Top, Front KESO-170/175, KEDO-270/275
15Cabinet Top, Rear KESO-170/175, KEDO-270/275
16Conduit, 1/2 x 56
