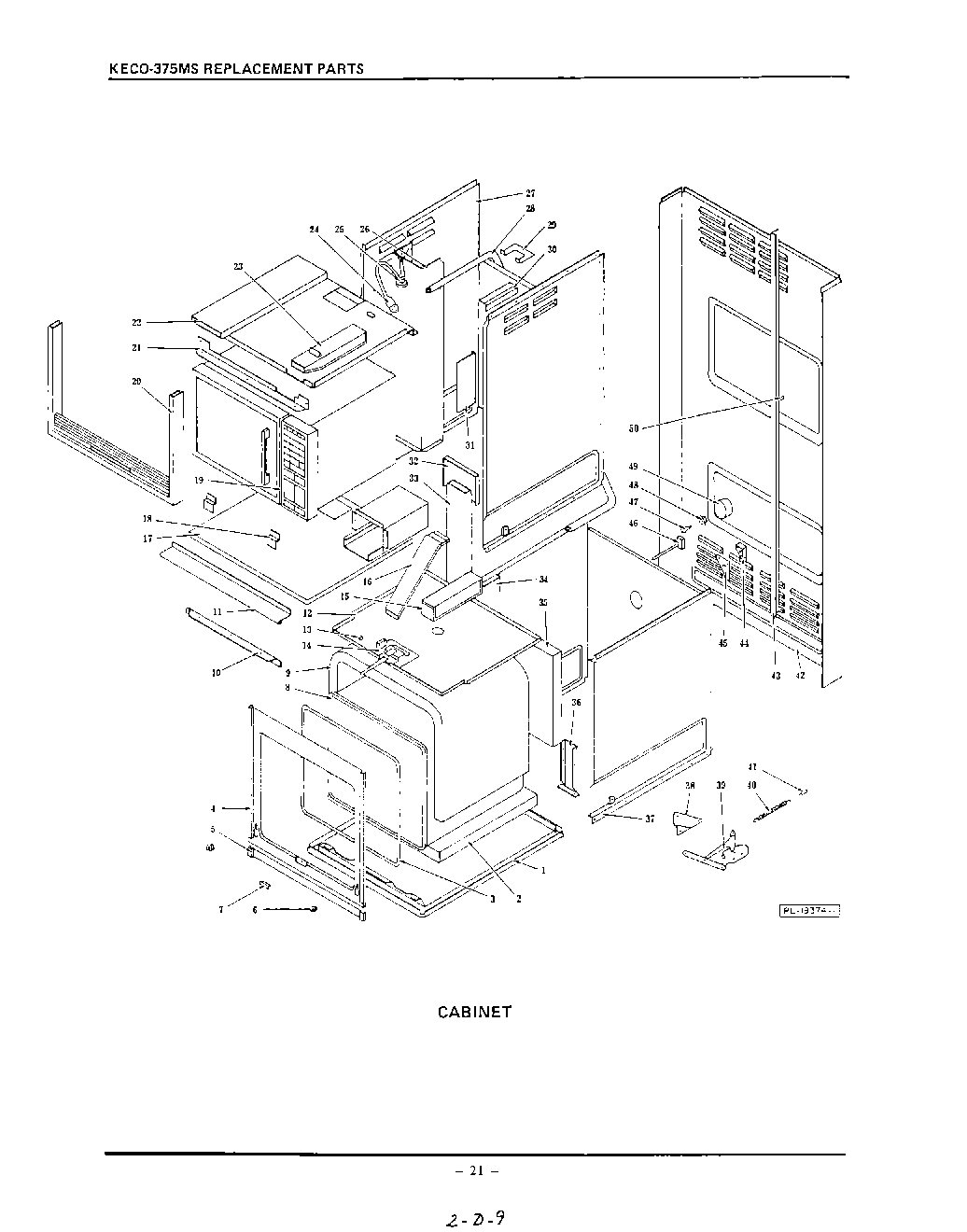

KEMS375SBL0 11 – CABINET

Products

Position	Product
	WPL 3050292
	xCam Plate, L.H.
1	Main Bottom
2	Insulation, Bottom KESO-170/175, KEDO-270/275
3	Door Gasket KESO-170/175, KEDO-270/275
4	Front Frame
5	Bottom Trim KESO-170/175, KEDO-270/275
6	Hinge Arm Guide
7	Cover – Seal End
8	Oven Liner (See Page 18)
9	Insulation, Top and Sides
10	WPL CC31734
11	Module Air Baffle
12	Compartment Top, Lower Oven KEDO-275
13	Knob, Latch Lever
14	Latch Assembly (See Page 16)
15	WPL CC71633
16	WPL CC32424
17	Module Support Plate
18	Module Brace
19	Microwave Module
20	Module Trim
21	Control Frame Support
22	Exhaust Shield
23	Vent Box
24	Service Cord
25	Strain Relief Bushing
26	Cabinet Back Duct
27	Cabinet Side, Upper
28	Vent Tube
29	WPL CC31876
30	WPL 3053511
31	Trim Bracket
32	Intake Box Back
33	Module Intake Duct
34	Air Duct, L.H.
35	Insulation, Rear KESO-170/175, KEDO-270/275
36	Rear Anchor
37	Cabinet Side, Lower
38	WPL CC22054
39	Hinge Assembly
40	WPL CC606517
41	WPL CC22058
42	WPL CC22143
43	WPL 3050291
44	WPL 305104
45	WPL CC19760
46	WPL CC71041
47	WPL BL27
48	WPL CC566083
49	WPL CC22022
50	WPL CC71194
