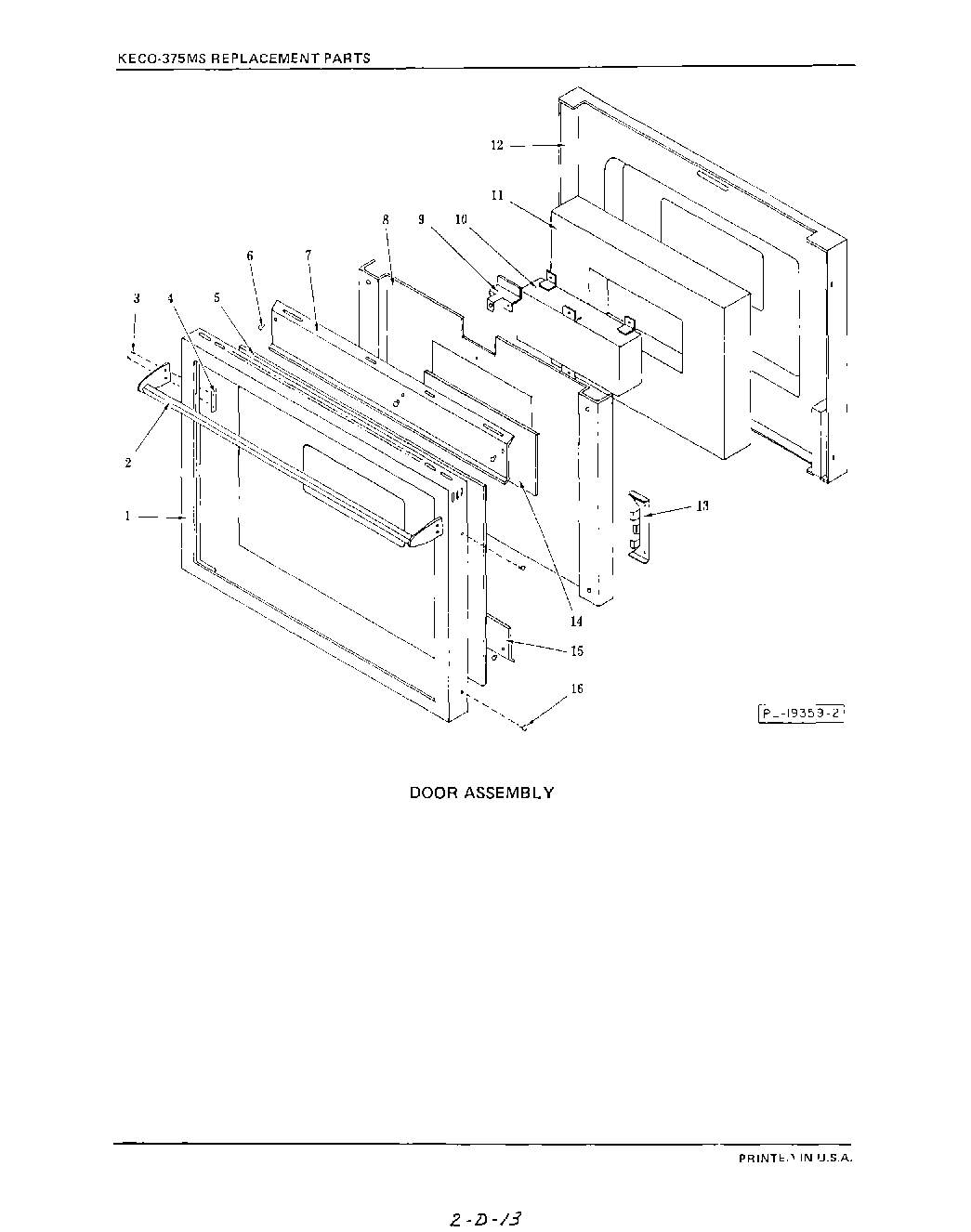

KEMS375SBL0 13 – DOOR

Products

PositionProduct
1Door Frame KEDO-270
2Door Handle KEDO-270
3Screw, 8-32 x 3/8“ PFHMS
4Tinnerman
5Door Glass KEDO-270
6Rubber Bumper
7Air Baffle-Top KEDO-270
8Insulation Retainer KEDO-270
9Lock Bracket
10Window Pack
11Insulation KEDO-270
12Door Liner KEDO-270
13Glass Mounting Bracket
14Glass Panel
15Air Baffle-Bottom KEDO-270
16Screw, 8A x 3/8“ PKESMS
