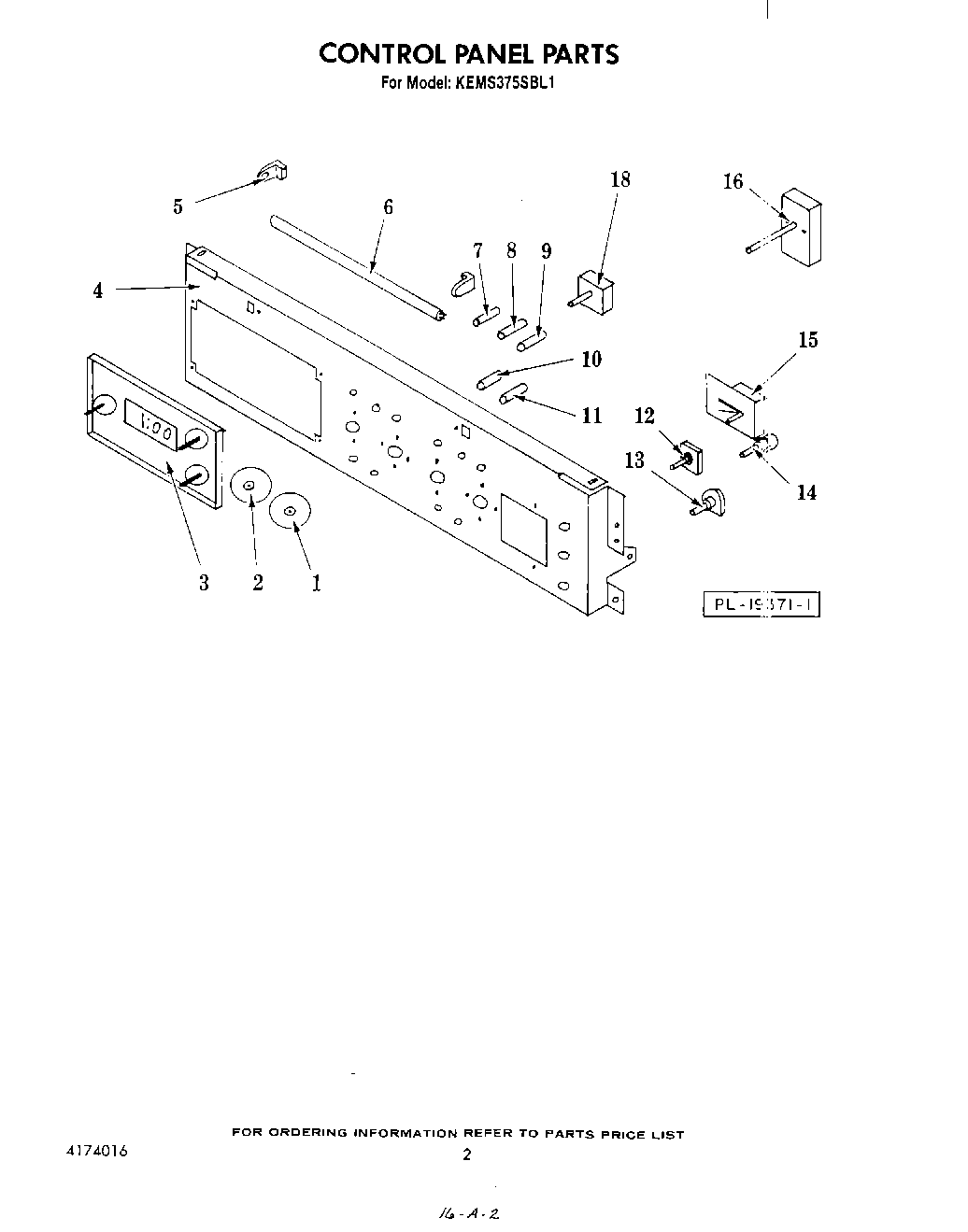

KEMS375SBL1 02 – CONTROL PANEL

KEMS375SBL1 02 – CONTROL PANEL

Written by

in

KEMS375SBL1 02 – CONTROL PANEL

Products

PositionProduct
1Selector Disc
2Selector Disc Single Oven (Model KEBS145SBL1)
3Clock, Digital
4Control Mounting Panel
5Lamp Socket (Model KEBS145SBL1)
6RANGE ONLY 40W 120V APPL BULB
11Indicator Light,
12Switch, Heat
13Oven Light Switch
14Switch, Panel Light
15Meat Probe Indicator (Model KEBS145SBL1)
16Thermostat
18Probe Spacer
18Glass Tray
18Temperature Probe
18Selector Switch
