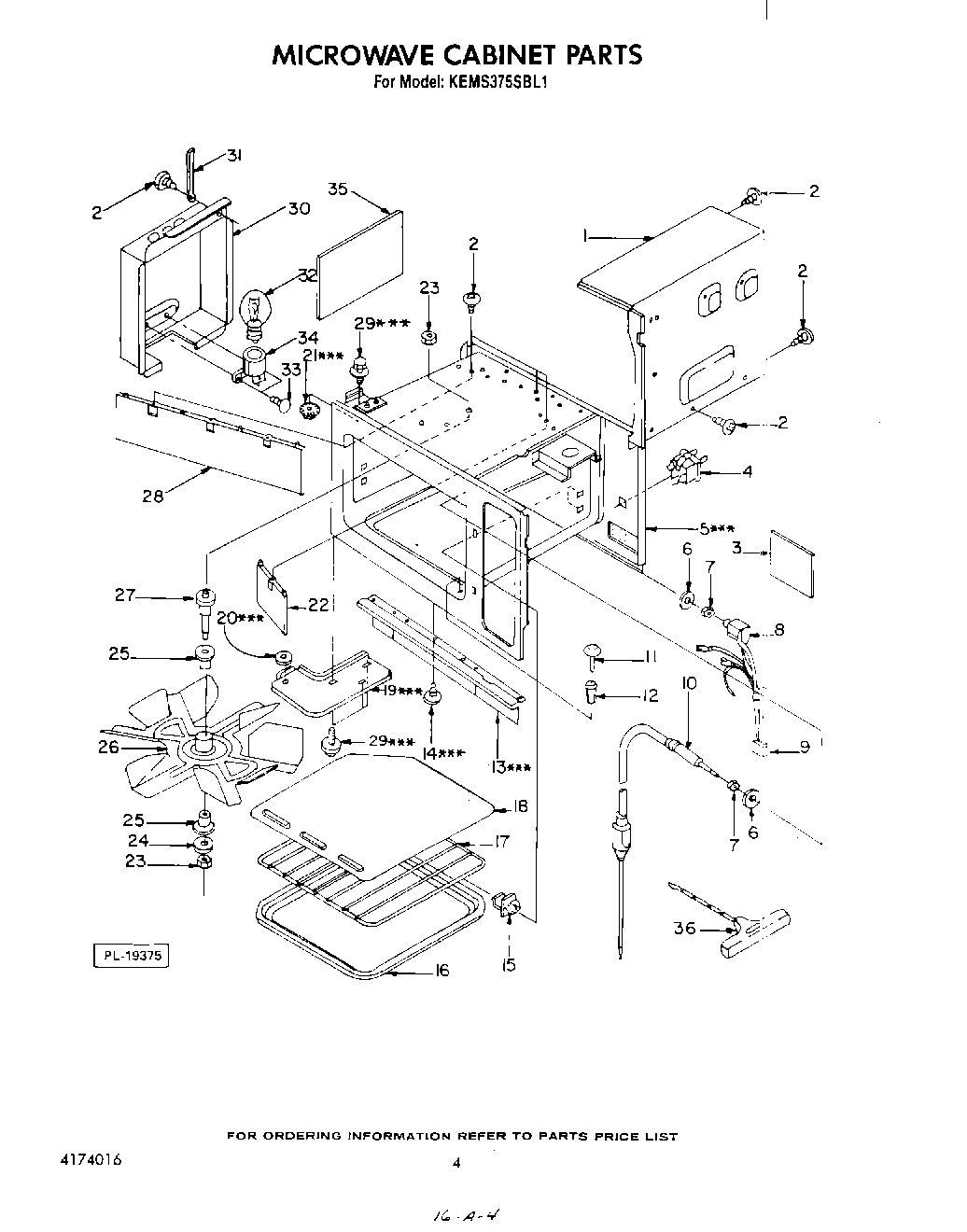

KEMS375SBL1 04 – MICROWAVE CABINET

Products

Position	Product
1	Screw, Truss Head Tapping, 3 X 6mm Z1-1xxx
2	Screw, Truss Hd. Tapping, 4 X 8mm, Z1-2
3	Caution Label And Nameplate
4	AC Plug
5	Oven Cavityxxx (Also Order Caution Label Illus. No. 3)
6	Special Washer Temperature Probe Jack
7	Special Nut, Temperature Probe Jack
8	Jack, Temperature Probe
9	5-Wire Harness With Socket
10	Temperature Probe
11	Plastic Stopper, Glass tray
12	Plastic Stopper
13	Trim Piece Assy (Incls. Five Screws Illus No. 14), One Ferrite Rubber, One Steel Piece, And One Pl
14	Screw, Truss Hd. Tapping, 4 X 12 mm Z1-1xxx
15	Rack Holder
16	Glass Tray
17	Metal Tray
18	Stirrer Cover
19	Hinge, Lowerxxx
20	Washer, 5mm, Uxxx
21	Hex Nut With Washer, 5mm, Z1xxx
22	Air Guide, Stirrer, Right
23	Hex Nut, 8mm Z1-1
24	Special Washer
25	Collar, Stirrer Shaft
26	Stirrer Fan Assy.
27	Stirrer Shaft
28	Air Guide, Left
29	Bolt, Hex Hd. With Phillips Slot, 5 X 12mm, Z1xxx
30	Bracket, Lamp Cover
31	Wire Clip
32	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
33	Screw, Pan Hd. Tapping, 3X8mm, Z1-2
34	Lamp Socket (UL Listed)
35	Light Opening Cover
36	Probe Spacer
