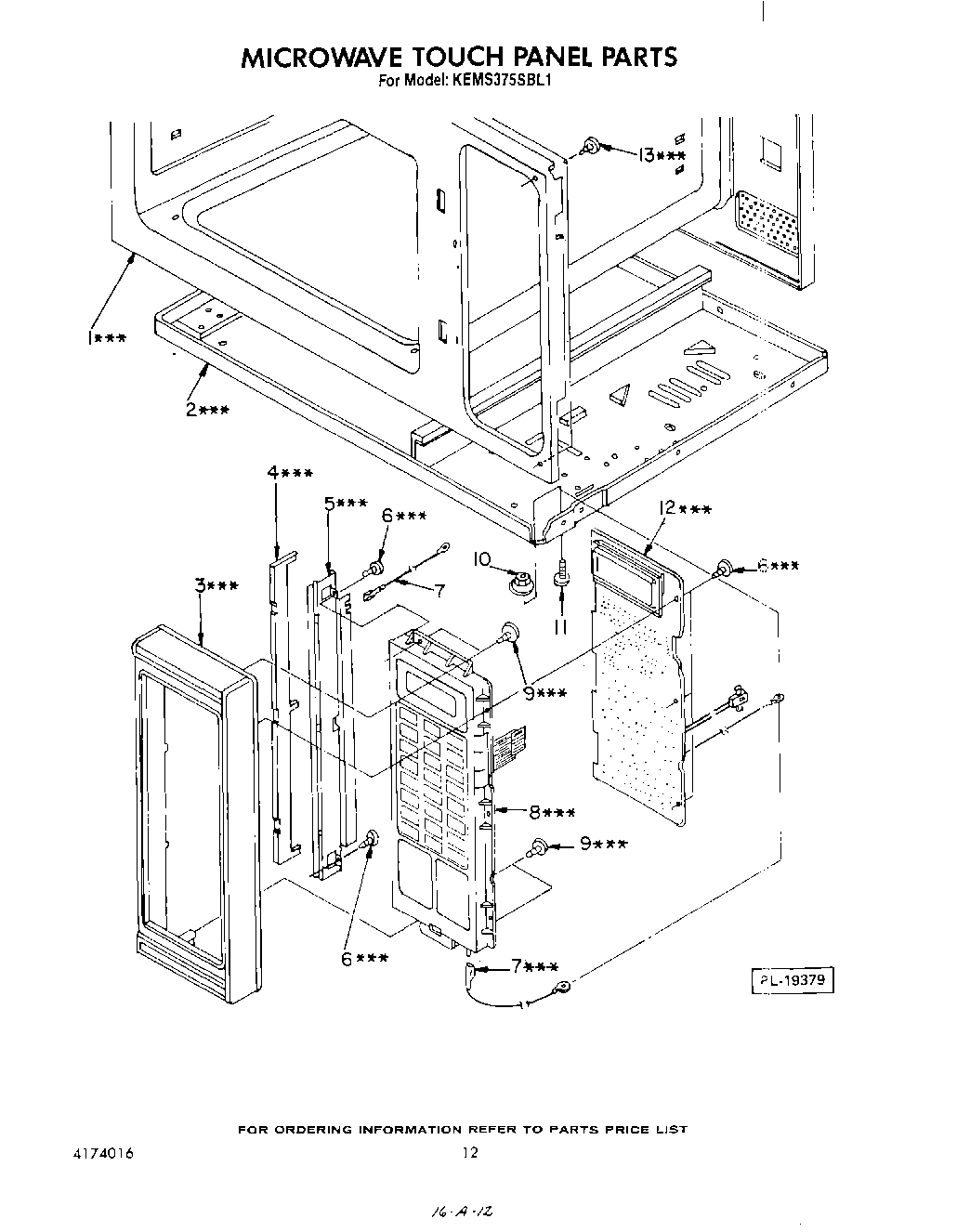

KEMS375SBL1 08 – MICROWAVE TOUCH PANEL

Products

Position	Product
1	Oven Cavityxxx (Also Order Caution Label Illus. No. 3)
2	Bottom Platexxx
3	Control Frame With Metal Piecexxx (3)
4	Ferrite Rubberxxx Panel Back
5	Metal Bracketxxx Panel Mounting (3)
6	Screw, Pan Hd. Tapping 3 X 12 mm C2-1xxx
7	Ground Leadxxx
8	Touch Key Board (Incls. Harness) xxx
9	Screw, Truss Hd. Tapping, 4 X 12 mm Z1-1xxx
10	Hex Nut With Washer, 4mm, Z1-1
11	Screw, Pan Hd. Diacut, 4 X 10mm Z1
12	Circuit Board, Power And Control (Complete)
13	Screw, Truss Hd. Tapping, 4 X 10mm, Z1-1
