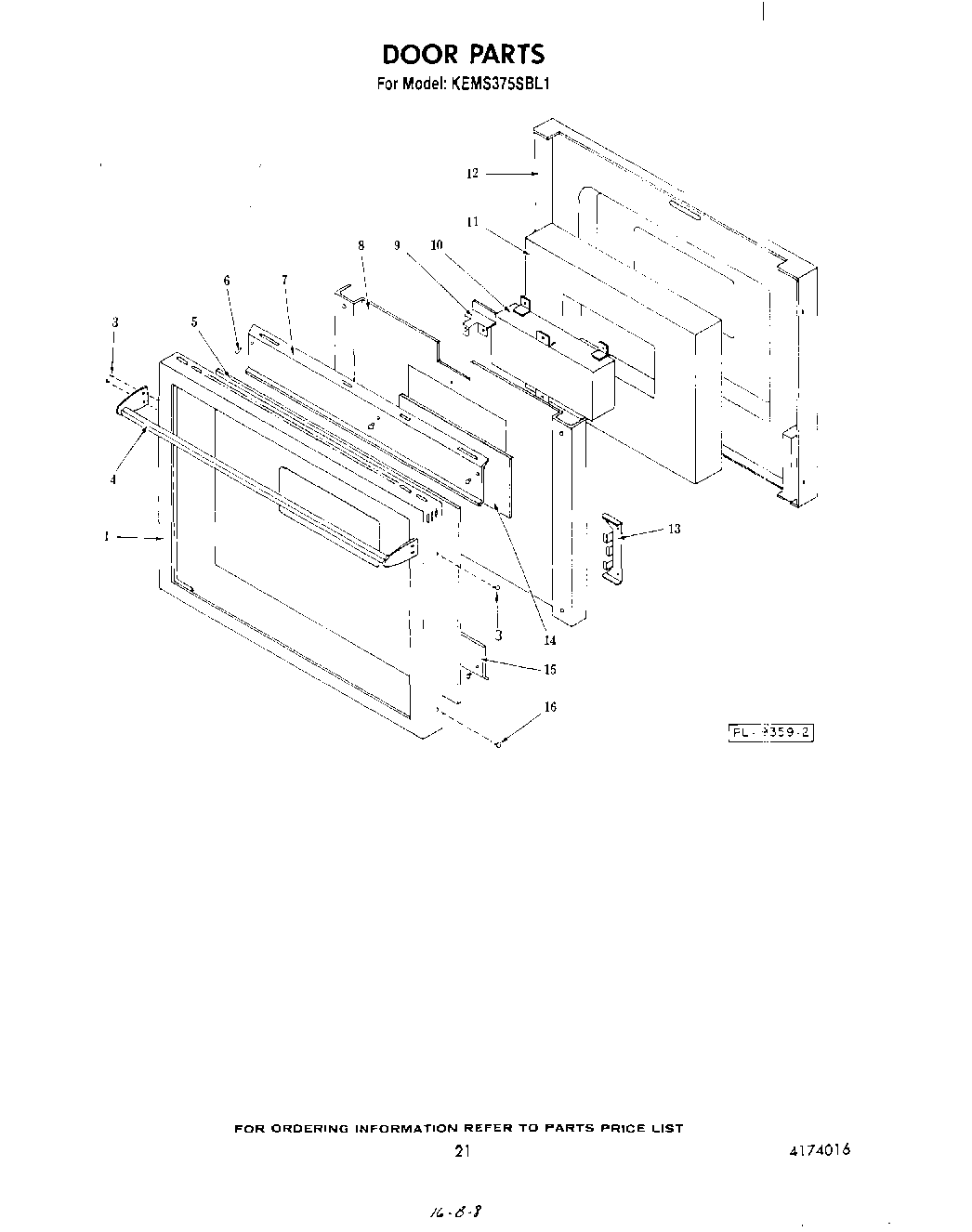

KEMS375SBL1 13 – DOOR , LIT/OPTIONAL
Written by
in
KEMS375SBL1 13 – DOOR , LIT/OPTIONAL
Products
Position
Product
Cookbook (Retained Heat)
Use & Care Guide (Oven)
Installation Instructions
Instructions, Operating (Card) (Microwave)
List, Repair Parts
Use & Care Guide (Microwave)
1
Door Frame
3
Screw, 8-32 X 3/8“ PFHMS
4
Door Handle
5
Door Glass
6
Rubber Bumper
7
Air Baffle
8
Retainer, Insulation
9
Bracket, Lock
10
Window Package
11
Insulation
12
Door Liner
13
Bracket, Glass Mtg.
14
Glass, Reflective
15
Air Baffle, Bottom
16
Vent, Lower Trim (Screw (2))
←
