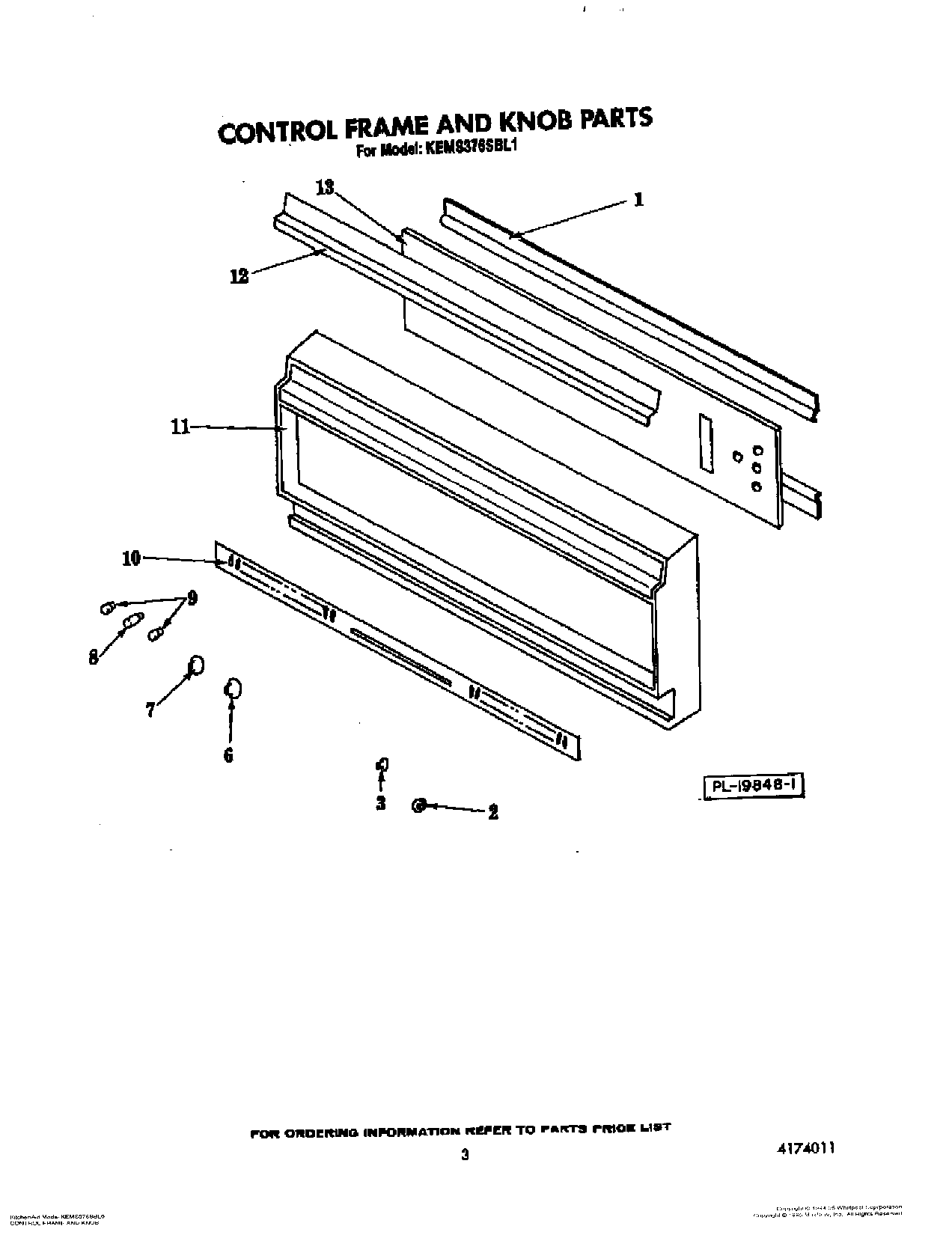

KEMS376SBL0 03 – CONTROL FRAME AND KNOB

Written by

Products

Position	Product
1	Retainer
2	Bezel, Oven Light Switch
3	Knob
7	WP4168403 Whirlpool Knob
8	Knob, Timer (Rotary Control)
9	Knob, Timer (Push Button Control)
10	Vent Insert
11	Control Frame
12	Top Insert
13	Control Panel Frame
