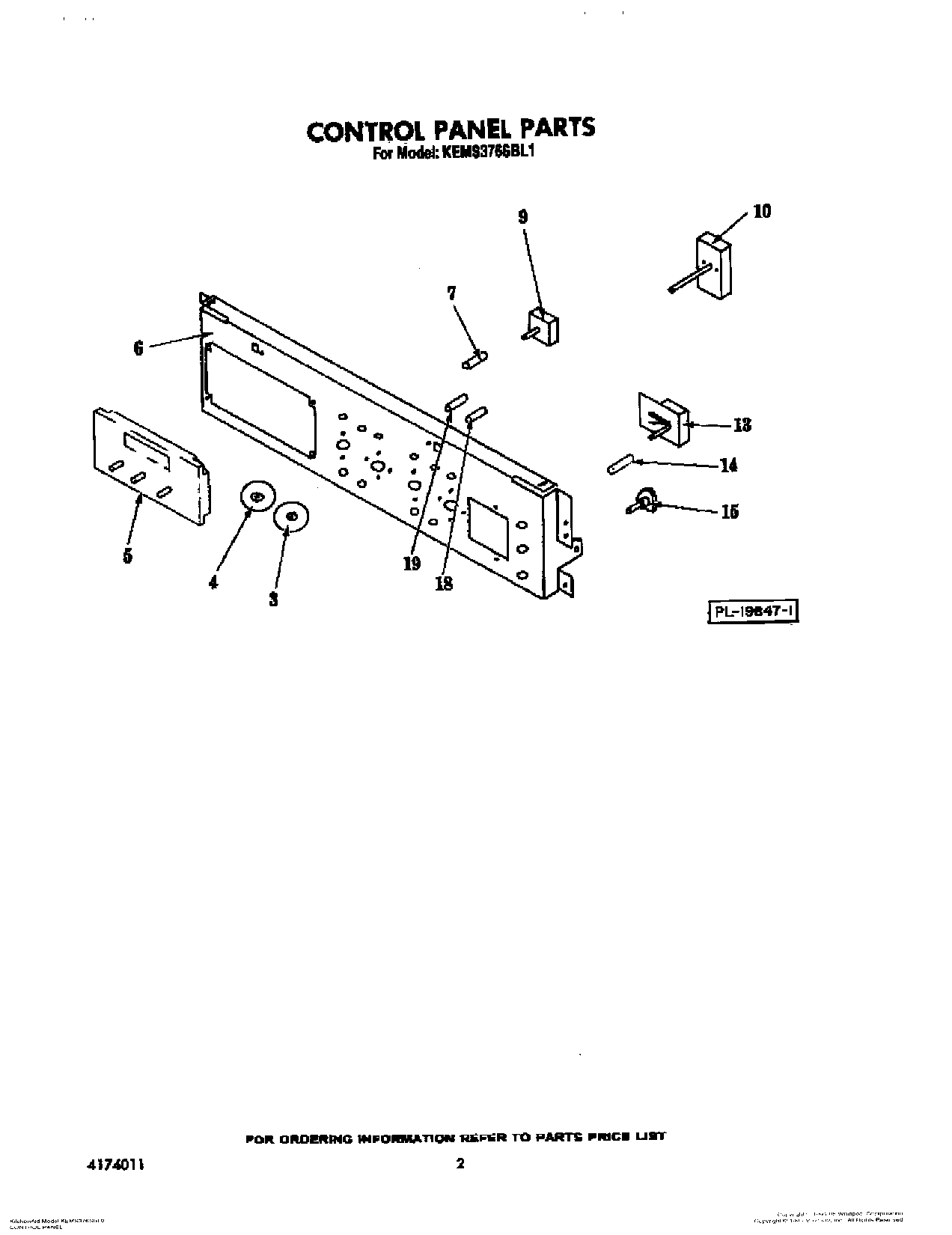

KEMS376SBL1 02 – CONTROL PANEL
Written by
in
KEMS376SBL1 02 – CONTROL PANEL
Products
Position
Product
3
Thermostat Disc Lower Oven
4
Selector Disc Single Oven (Model KEBS145SBL1)
5
Clock
6
Control Mounting Panel
9
Selector Switch (Model KEBS145SBL1)
10
Thermostat
13
Meat Probe Indicator (Model KEBS145SBL1)
14
Indicator Light,
15
Oven Light Switch
19
Indicator Light (2)
19
Wiring Harness Low Temperature
19
Wiring Harness High Temperature
←
