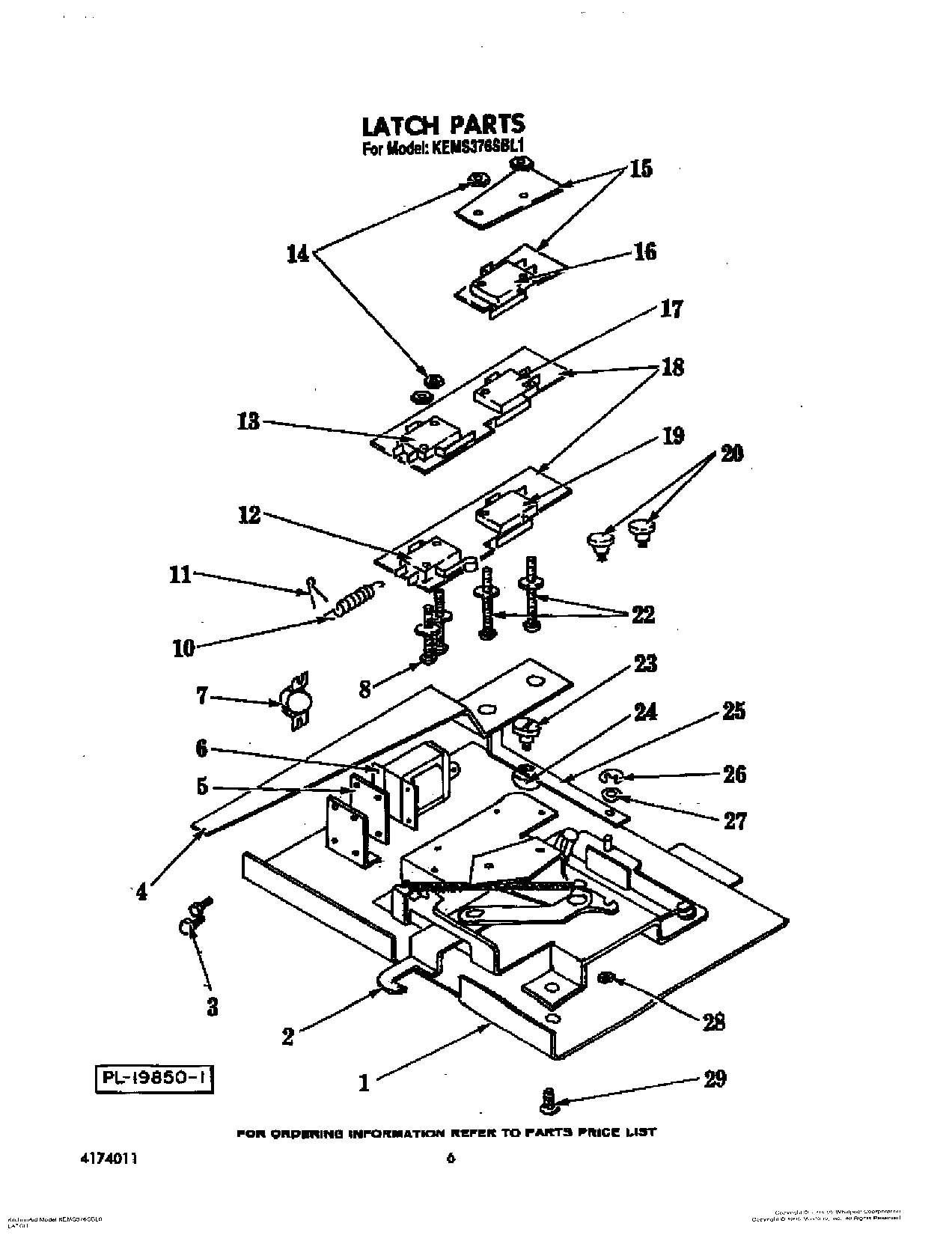

KEMS376SBL1 05 – LATCH

Written by

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever
5	Solenoid Spacer
6	Solenoid
7	Thermal Switch
8	Screw, 4-40 X 1 1/4
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch With Roller
13	Latch Switch
14	Nut (2)
15	Insulator
16	Latch Switch,
18	Insulator (2)
19	Latch Switch (2)
20	Shoulder Screw Latch Lever Upper Oven
22	Machine Screw, 4-40 X 1 3/4
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Spacer, Latch Lever (Lower Oven) Model KEBS245SBL1
29	Wiring Harness Latch
29	Screw, No.10-24 X 3/8“ PTHMS
