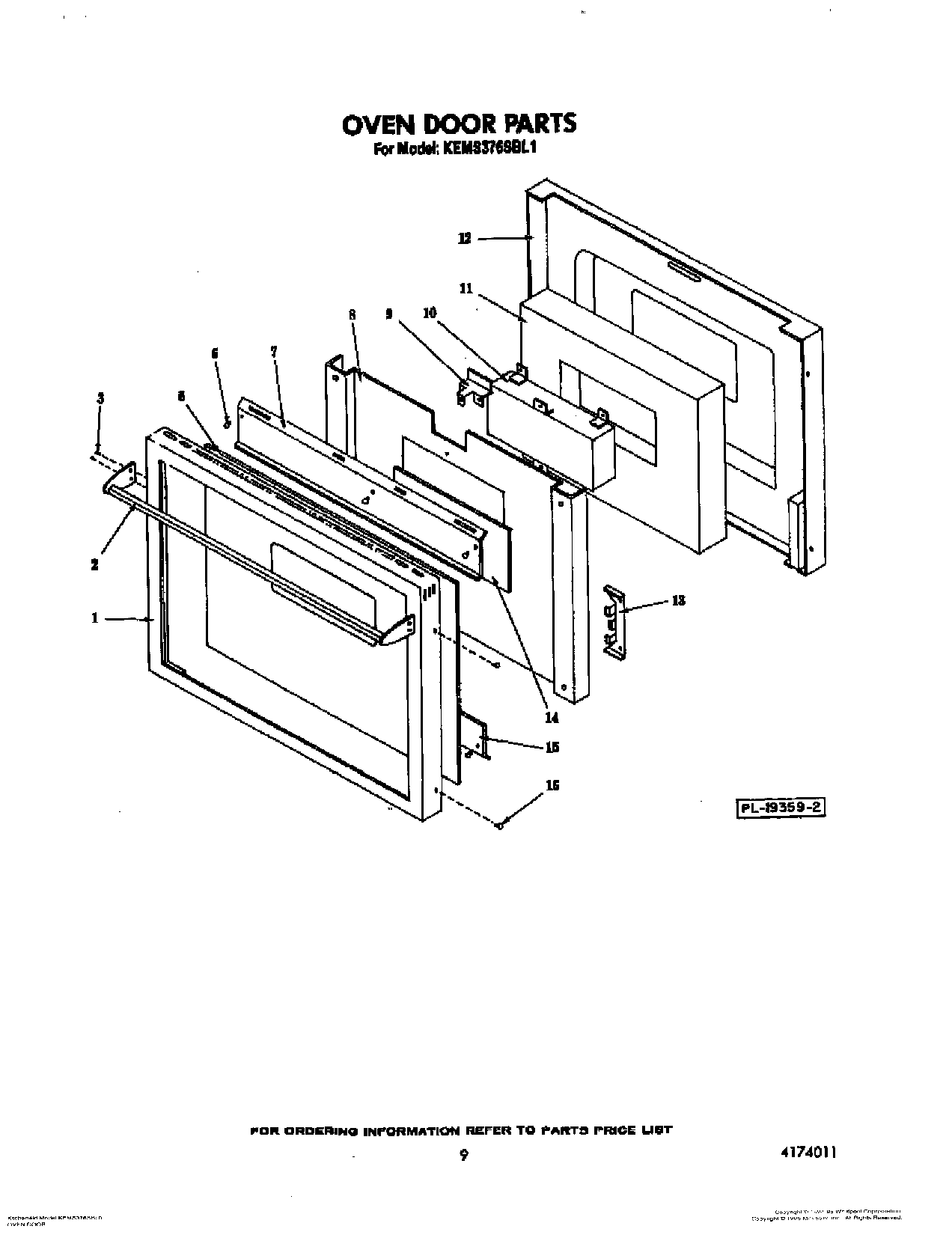

KEMS376SBL1 07 – OVEN DOOR, LIT/OPTIONAL

KEMS376SBL1 07 – OVEN DOOR, LIT/OPTIONAL

Written by

in

KEMS376SBL1 07 – OVEN DOOR, LIT/OPTIONAL

Products

PositionProduct
Use & Care Guide
Installation Instructions
List, Repair Parts
1Door Frame
2Door Handle
3Screw, 8-32 X 3/8“ PFHMS
5Door Glass
6Rubber Bumper
7Air Baffle
8Retainer, Insulation
9Bracket, Lock
10Window Package
11Insulation
12Door Liner
13Bracket, Glass Mtg.
14Glass, Reflective
15Air Baffle, Bottom
16Vent, Lower Trim (Screw (2))
