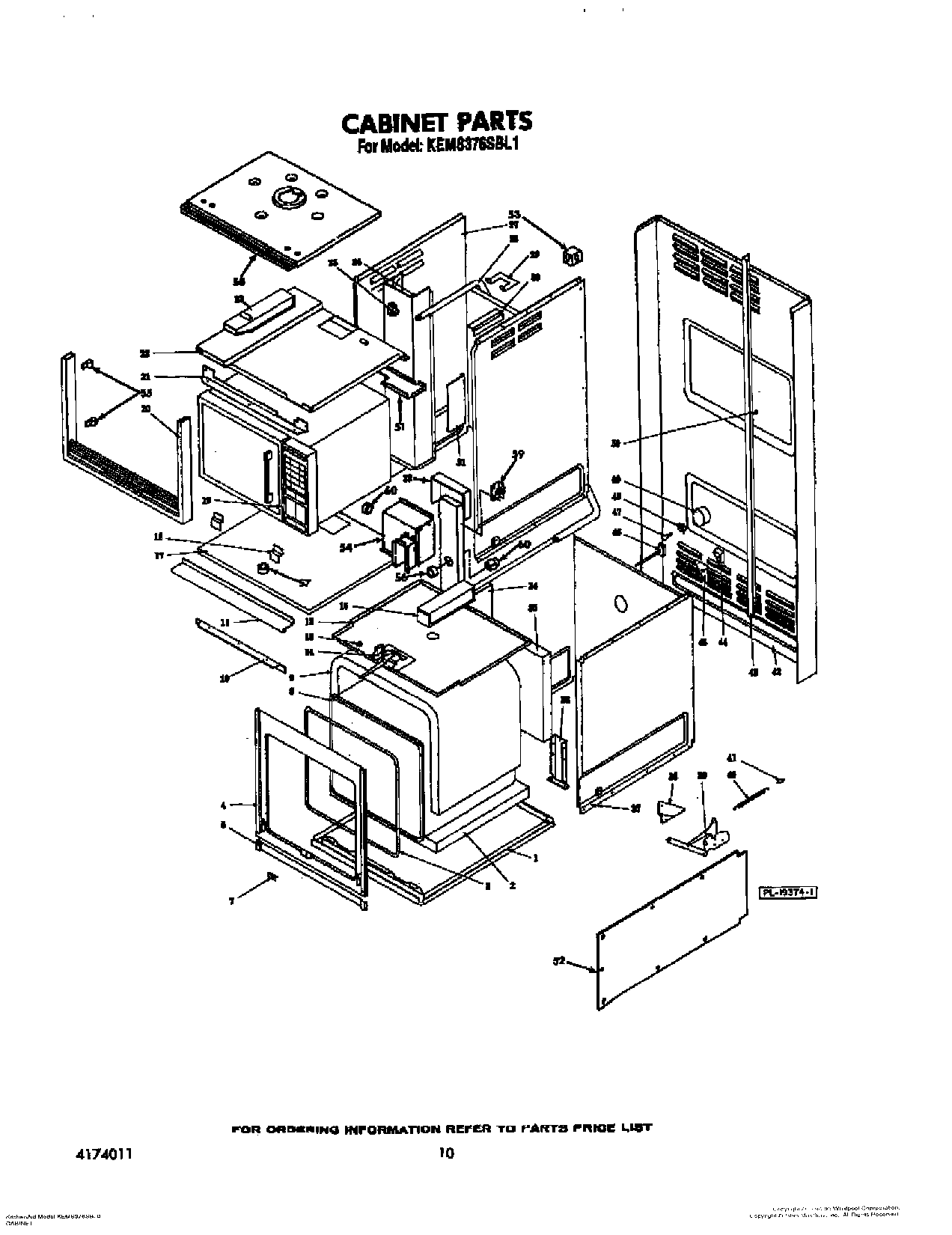

KEMS376SBL1 08 – CABINET

Products

Position	Product
1	Main Bottom (Includes Oven Support And Main Bottom)
2	Insulation, Bottom
3	Door Gasket
4	Front Frame
5	Bottom Trim
7	Cover, Seal End
8	Oven Liner (See Page 8)
9	Insulation, Top and Sides
10	Control Frame Support
11	Module Air Baffle
12	Compartment Top
13	Knob, Latch Lever
14	Latch (See Pages 6 & 7)
15	Collector Box
17	module support assembly
18	Shim
18	Module Brace
19	Microwave Module (Complete Unit Not Available, Order Component Parts)
20	Module Trim
21	Control Frame Support
22	Exhaust Shield
23	Vent Box
25	Strain Relief Bushing
26	Cabinet Back Duct
27	Cabinet Side Upper
28	Vent Tube
29	Vent Tube, Retainer
30	Cabinet Side Extension
31	Trim Bracket
34	Air Duct, L.H.
35	Insulation, Rear
36	Rear Anchor
37	Cabinet Side Lower
38	Cam Plate (Right)
38	Cam Plate (Left Left)
39	Hinge Assembly
40	Door Spring (Self Cleaning Oven)
41	Spring, Anchor
42	Cabinet Back
43	cabinet support (r.h.)
43	cabinet support (l.h.)
44	Rotisserie Motor
45	Rotisserie Motor Mounting Plate
46	RT Thermostat
47	RANGE ONLY 40W 120V APPL BULB
48	Socket, Lamp
49	Light Shield
50	Spacer
51	WPL 4164337
52	WPL 4164336
53	WPL 4164406
54	WPL 4173082
55	WPL 4164586
56	WPL 4159046
57	Bushing
58	WPL 4173072
59	WPL 4173085
60	WPL 4164600
60	WPL 4164402
60	Wiring Harness Latch
60	Wiring Harness High Temperature
60	Wiring Harness Meat Probe
