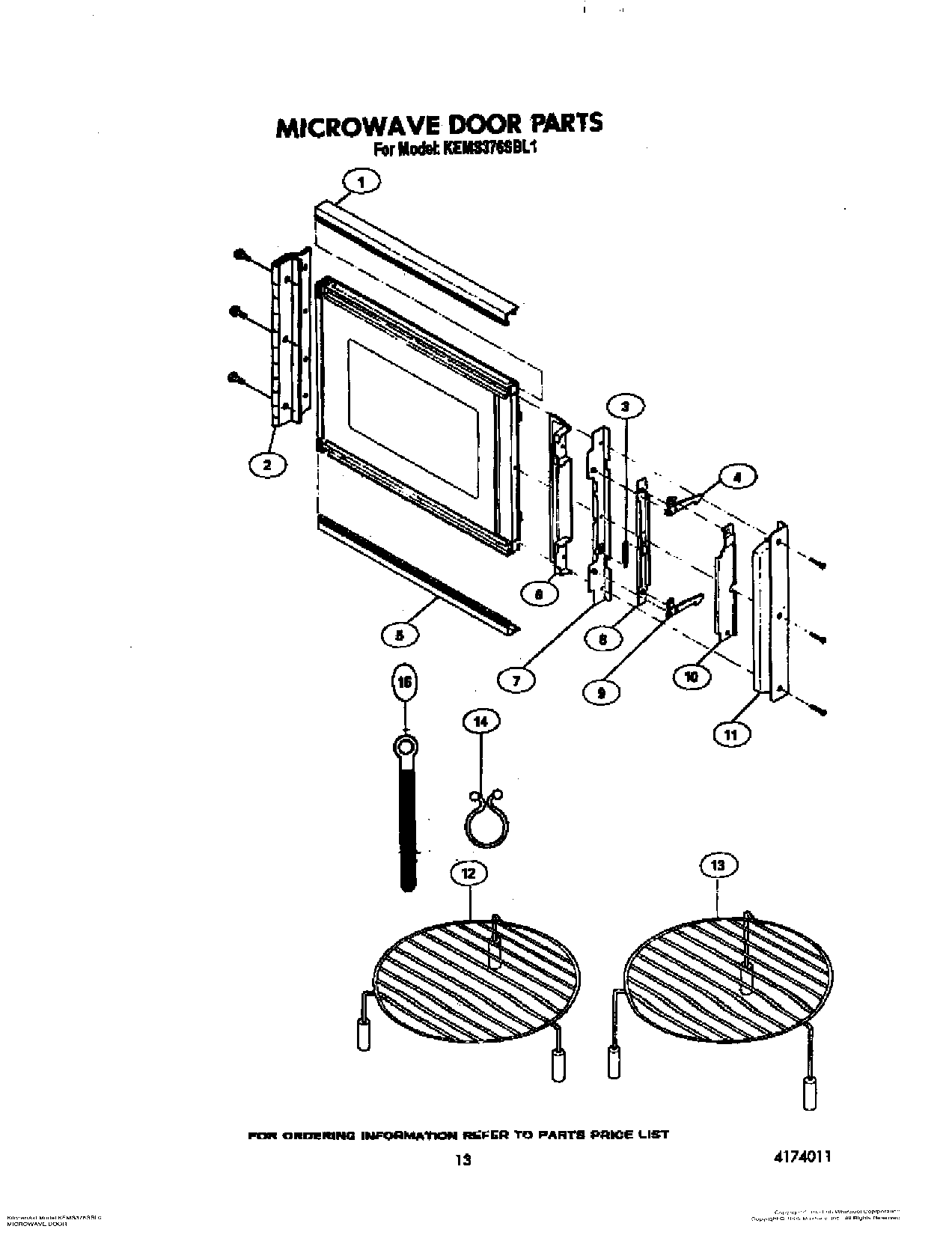

KEMS376SBL1 10 – MICROWAVE DOOR

Products

Position	Product
1	trim, upper door
2	hinge, door
2	Screw, Door Hinge Mounting (3)
3	spring, latch
4	catch, upper latch
5	xDoor, Complete
5	trim, door lower
6	trim, door panel fram
7	plate, latch
8	lever, joint
9	catch, lower latch
10	lever, latch release
11	Handle, Door (xScrews, Latch Cover Mounting (3))
11	handle, door
12	rack, broiling
13	rack, baking
14	wire tie, small
15	wire tie, large
