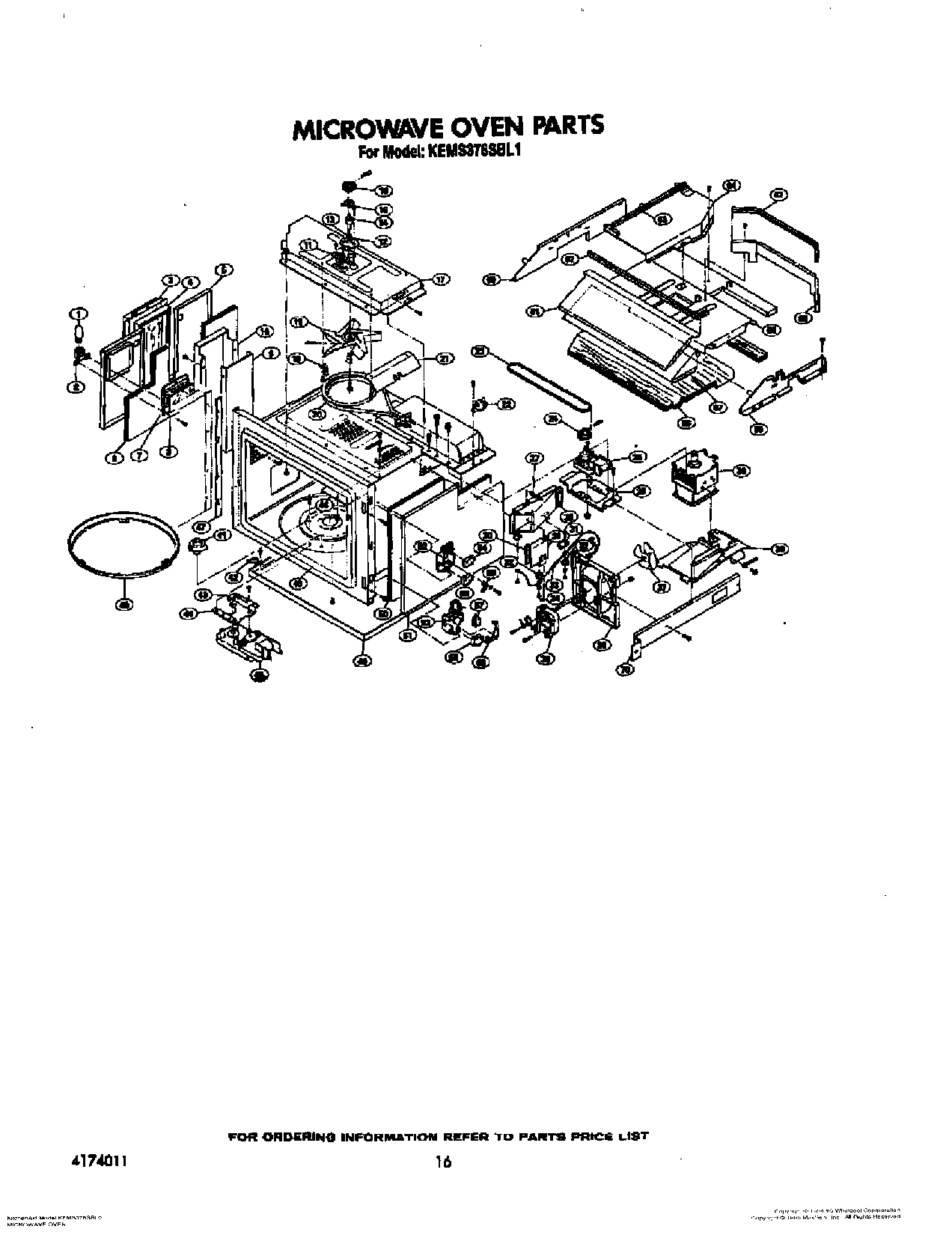

KEMS376SBL1 12 – MICROWAVE OVEN

KEMS376SBL1 12 – MICROWAVE OVEN

Written by

in

KEMS376SBL1 12 – MICROWAVE OVEN

Products

PositionProduct
1WPA3073101 Whirlpool Light Bulb
2Socket, Oven Light
2Screw, Oven Light Socket Mounting
3Cover, Insulation
4Insulation, Convection Air Duck
5Screw, Fan Mounting
6Insulation, Left Side
7Oven Light Mounting Plate
8Glass, Oven Light
9Convection Airguide, Front
10Convection Air Guide, Rear
10Screw, Insulation Cover (16)
11Screw, Thermistor Mounting (2)
11Thermistor
12Lower Shaft And Mounting Plate
13Shading Cushion
14Convection Fan Blade Shaft
15Upper Shaft Mounting Plate
16Pulley Fan Shaft
17Convection Airguide, Top
17Screw, Convection Airguide, Top Mounting (6)
18Pin, Fan & Pulley
18Nut, Convection Fan Mounting
18Convection Fan Blade
18Washer, Convection Fan Mounting
19Heating Element Holder
20Element, Convection Air
20Screw, Element Mounting
21Convection Airguide End Cap
22Fuse, Magnetron Temperature
22Screw, Temperature Fuse Mounting (2)
23B
24WPL 4164567
24WPL 4164516
25WPL 4164514
26WPL 4164543
26WPL 4164515
27WPL 4164440
28WPL 4164548
28WPL 4164443
29WPL 4164439
30WPL 4164442
31WPL 4164445
32WPL 4164444
33WPL 4164438
34WPL 4164535
34WPL 4164441
34WPL 4164533
35WPL 4164561
35WPL 4164523
35WPL 4164563
36WPL 4164525
37WPL 4164524
38WPL 4164569
38WPL 4164526
39WPL 4164571
39WPL 4164570
39WPL 4164509
40WPL 4164437
41WPL 4164448
41WPL 4164544
42WPL 4164538
42WPL 4164447
43WPL 4164466
44WPL 4164464
45WPL 4164609
45WPL 4164465
46WPL 4164536
46WPL 4164471
47Plate, Control Panel Back
47WPL 4164564
48WPL 4164446
49WPL 4164481
50WPL 4164474
51WPL 4164480
52WPL 4164496
53WPL 4164497
55WPL 4164498
55Screw
55WPL 4164556
564392027 Whirlpool Microwave Primary Switch
57WPL 4164503
58WPL 4164499
60WPL 4164462
61WPL 4164461
62WPL 4164521
63WPL 4164522
64WPL 4164460
65WPL 4164478
66WPL 4164482
67WPL 4164477
68WPL 4164476
69Screw
70WPL 4164589
