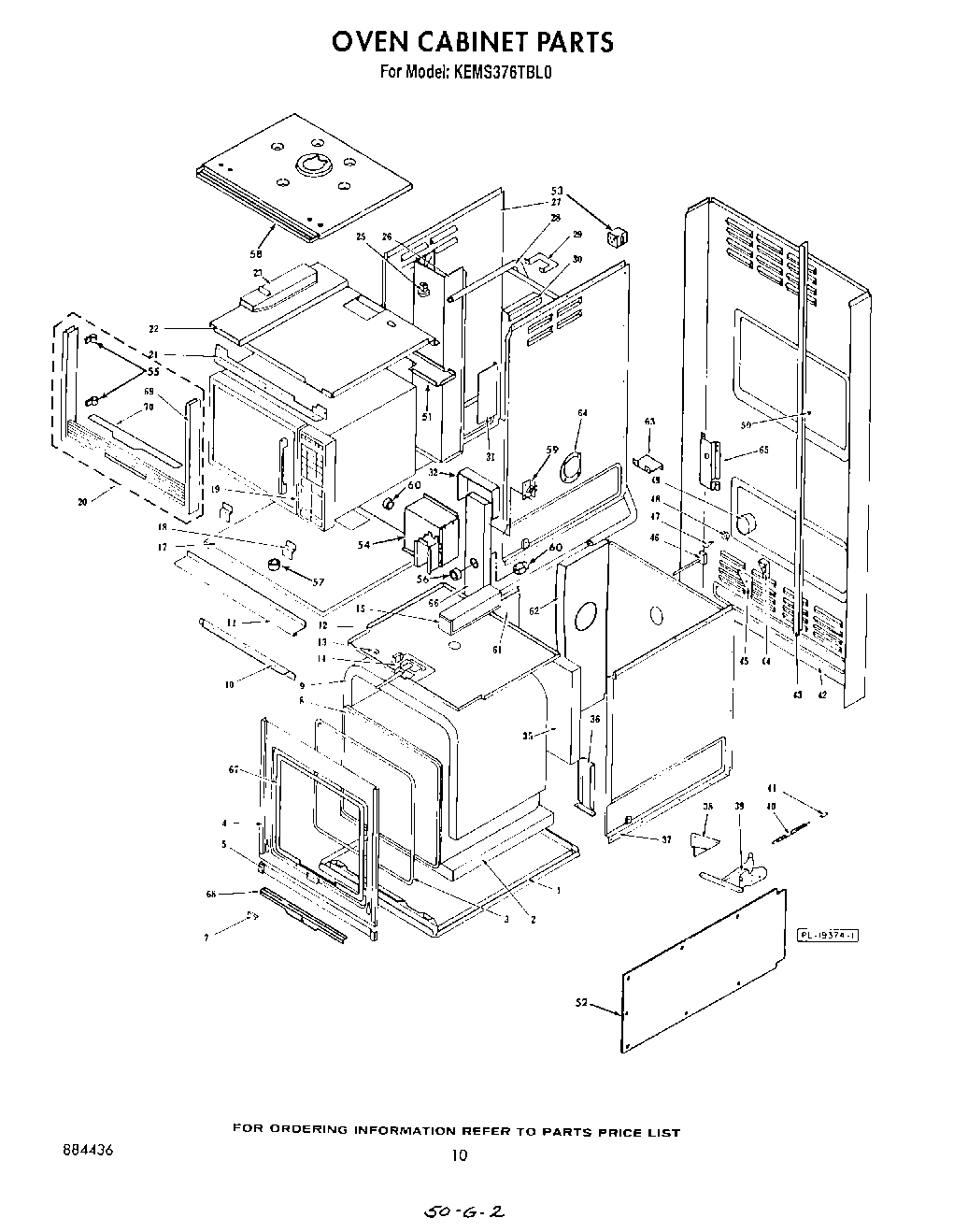

KEMS376TBL0 08 – OVEN CABINET

KEMS376TBL0 08 – OVEN CABINET

Written by

in

KEMS376TBL0 08 – OVEN CABINET

Products

PositionProduct
1Main Bottom (Includes Oven Support And Main Bottom)
2Insulation, Bottom
3Door Gasket
4front frame
5Bottom Trim
7Cover, Seal End
8Oven Liner (See Page 8)
9Insulation, Top and Sides
10Control Frame Support
11Screw, No.10-24 X 3/8“ Hex TCS
11Module Air Baffle
12Compartment Top
13Knob, Latch Lever
14Latch (See Pages 6 & 7)
15Collector Box
17module support assembly
18Module Brace
18shim
18nut (3)
19Microwave Module (Complete Unit Not Available, Order Component Parts)
20Trim Module & Deflector Assy. (White)
20Module, Trim
20Trim Module & Deflector Assy. (Almond)
21Control Frame Support
22Exhaust Shield
23Vent Box
25Strain Relief Bushing
26Cabinet Back Duct
27Cabinet Side Upper
28Vent Tube
29Vent Tube, Retainer
30Cabinet Side Extension
31Trim Bracket
32Intake Box Back
35Insulation, Rear
36Rear Anchor
37Cabinet Side Lower
38Cam Plate (Left Left)
38Cam Plate (Right)
39Hinge Assembly
40Door Spring (Self Cleaning Oven)
41Spring, Anchor
42Cabinet Back
43cabinet support (r.h.)
43SCREW
43cabinet support (l.h.)
44Rotisserie Motor
45WP488234 Whirlpool Air Conditioner Screw
45Rotisserie Motor Mounting Plate
45Washer, Lock Tooth
46RT Thermostat
47RANGE ONLY 40W 120V APPL BULB
48Socket, Lamp
49Light Shield
50WPL 4159188
50Spacer
51WPL 4164337
52WPL 4159469
52WPL 4164338
52WPL 4164336
53WPL 4164406
544159493 Whirlpool Lockwasher
54WPL 4173082
54WPL 4159458
55Screw (2)
55WPL 4164586
55Washer, Flat
56WPL 4159046
57Bushing
58WPL 4173072
59WPL 4173085
59Screw (4)
59Base Cover Screws
60WPL 4164600
61WPL 4173017
61WPL 4173016
62Air Du
62Air Duct (Upper Oven) (Left)
63WPL 4168170
64Probe Cover
65Back Cover
65Bushing
66WPL 4175379
66WPL 4173079
66Screw, (2)
67Door Gasket
68Cover, Seal End
68Vent, Lower Trim (Screw (2))
69WPL 3179703
69WPL 3178059
69WPL 3179702
70WPL 3178069
70WPL 3178066
