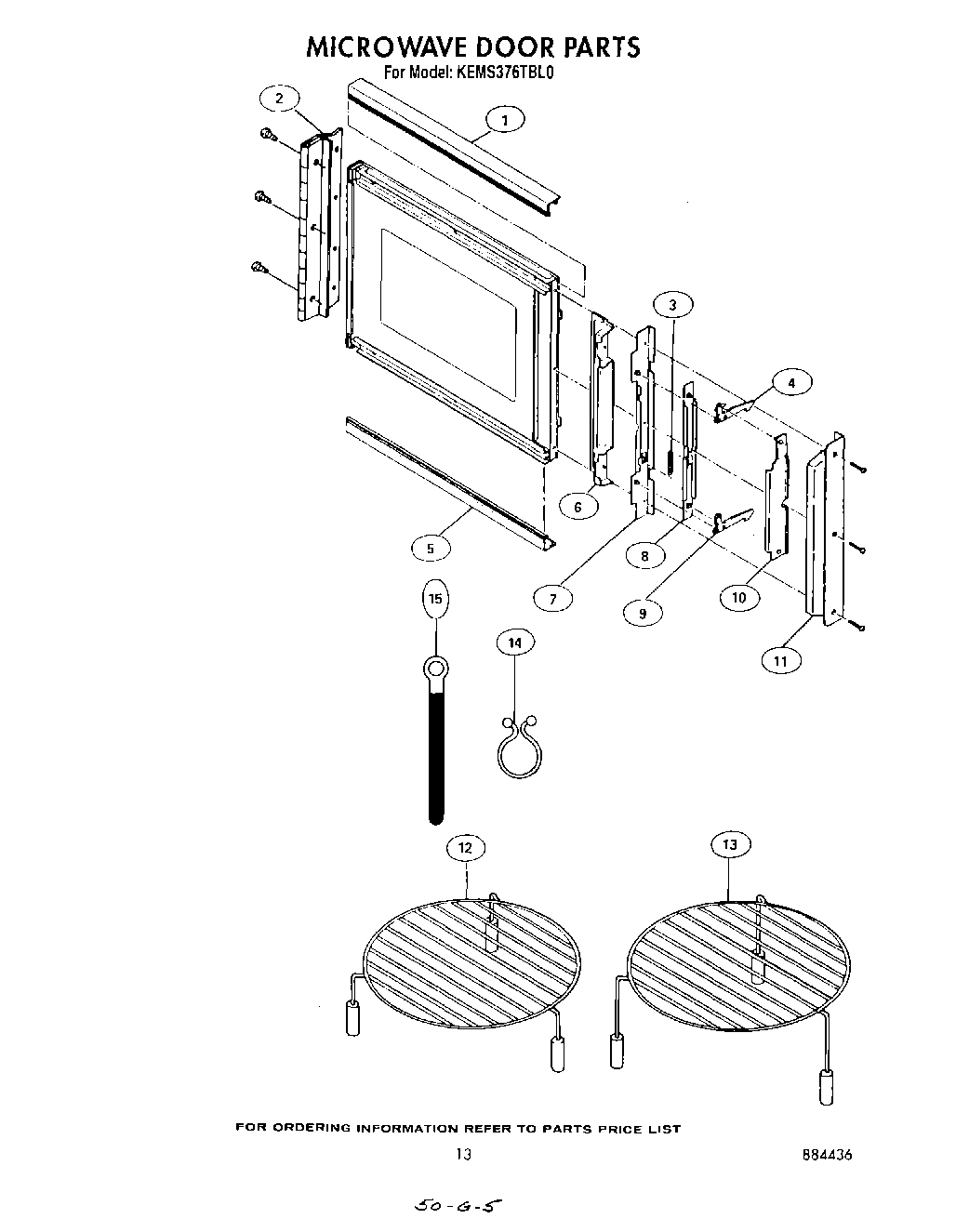

KEMS376TBL0 10 – MICROWAVE DOOR

Products

Position	Product
NI	xDoor, Complete
1	Trim, Upper Door (White)
1	Trim, Upper Door (Almond)
1	trim, upper door
2	Screw, Door Hinge Mounting (3)
2	Hinge, Door
2	hinge, door
3	spring, latch
4	catch, upper latch
5	trim, door lower
5	Trim, Door Lower (Almond)
5	Trim, Door Lower (White)
6	Trim, Door Panel Frame (Almond)
6	trim, door panel fram
6	Trim, Door Panel Frame (White)
7	plate, latch
8	lever, joint
9	catch, lower latch
10	Lever, Latch Release (Almond)
10	lever, latch release
10	Lever, Latch Release (White)
11	handle, door
11	Handle, Door (Almond)
11	Handle, Door (White)
11	Handle, Door (xScrews, Latch Cover Mounting (3))
12	rack, broiling
13	rack, baking
14	wire tie, small
15	wire tie, large
