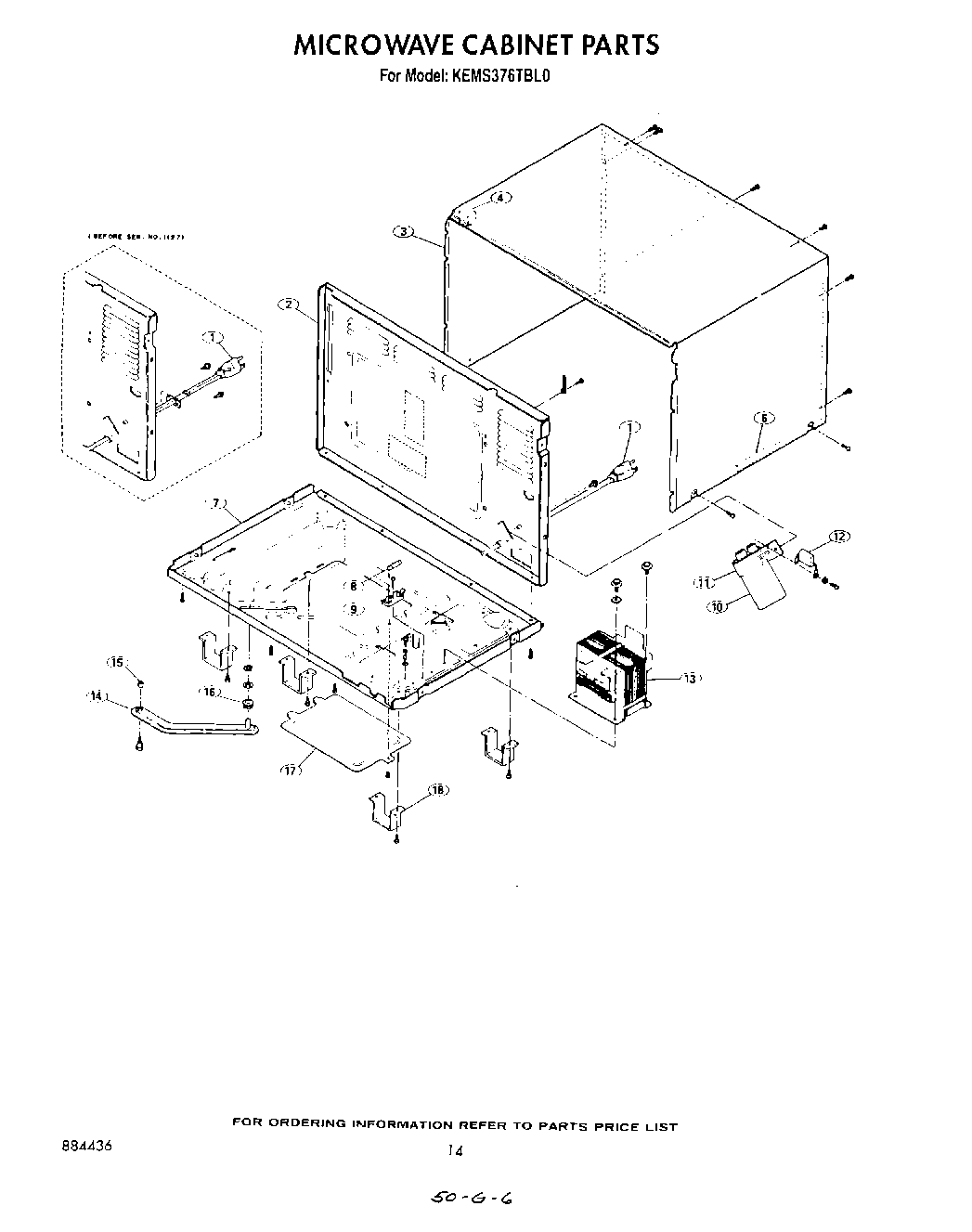

KEMS376TBL0 11 – MICROWAVE CABINET

Products

PositionProduct
1Power Cord
1Screw, Grounding (Power Cord)
1Screw, Bushing Holder (Before Serial Number 1127)
1Washer, Grounding (Power Cord)
2Cabinet Back
3Screws, Cabinet Back, Top And Sides (28)
3Cabinet Top & Sides
4Seal, Cabinet Side
6Seal, Cabinet Lower Side
7Base, Cabinet
8Fuse, Monitor
9Holder, Fuse
10Capacitor
11WPL 4164567
11Capacitor Strap
12Washer, Diode Mounting
12Screw, Diode Mounting
12Diode
13Transformer
13Screw, Transformer Mounting (2)
13Washer, Tranformer Mounting
14Cam, Door
15Screw, Door Cam Mounting
15Spacer, Door Cam
16E-Ring, Door Cam Roller
16Roller, Door CAm
16WPL 4164556
17Cover, Turn- table
18Foot, Cabinet (4)
18WPL 4164548
