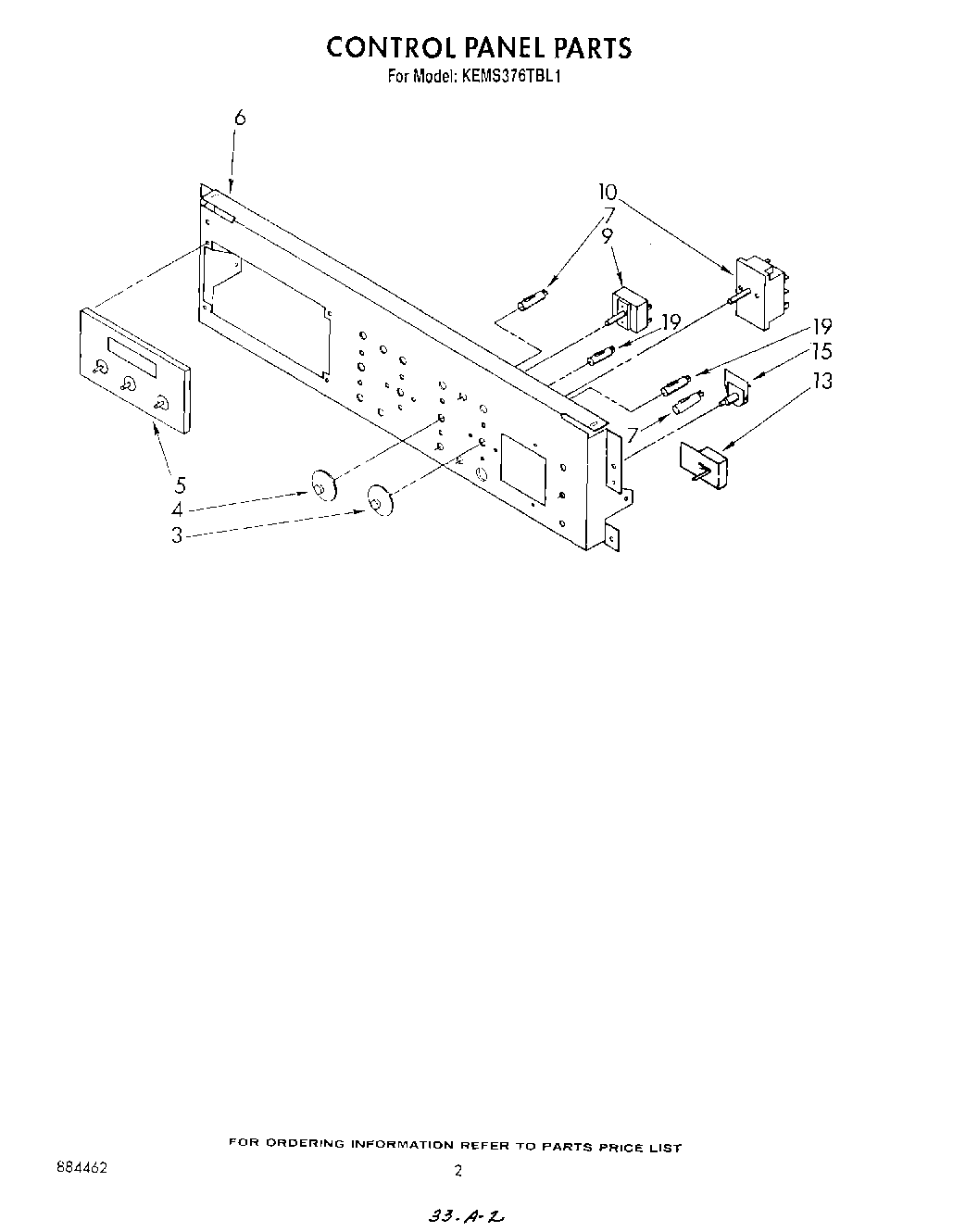

KEMS376TBL1 02 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
WPL LIT3147571
WPL LIT3147577
Installation Instructions
Main Oven
Cookbook (Microwave)
Installation Instructions (Microwave)
Microwave
3Thermostat Disc
4selector disc (2)
4WPL 4175379
5Screw (2)
5nut (3)
5Nut, Timer (4)
5Clock
6Control Mounting Panel
7Indicator Light,
9Switch, Selector
10WP486579 Whirlpool Air Conditioner Screw
10Thermostat
13Screw, (2)
13Meat Probe Indicator (Model KEBS145SBL1)
15Screw,
15Oven Light Switch
19Indicator Light (2)
